Product Description
Just released a TFT LCD Display for commercial and industrial uses. The screen measures 1.14 inch. It's a very popular and hot selling size for small size TFT display.
Upgrade your product design by incorporating our 135 * 240 resolution product. 550 nits means this lcd can perfectly function inside.
| P/N | P114H002 |
| Size(inch) | 1.14 |
| Resolution | 135*240 |
| Active Area(mm) | 14.87*24.91 |
| Pixel pitch(um) | 51*153 |
| Outline Dimension(mm) | 17.60*31.00*1.56 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) | 550 |
| Contrast Ratio | 600:1 |
| Interface | 4 Wire SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 8 |
The Interface of this LCD is 4 Wire SPI. In addition, we can make other sorts of interfaces and FPCs for you as well.
ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can be -20°C (-4°F) and the highest one is 70°C (158°F).

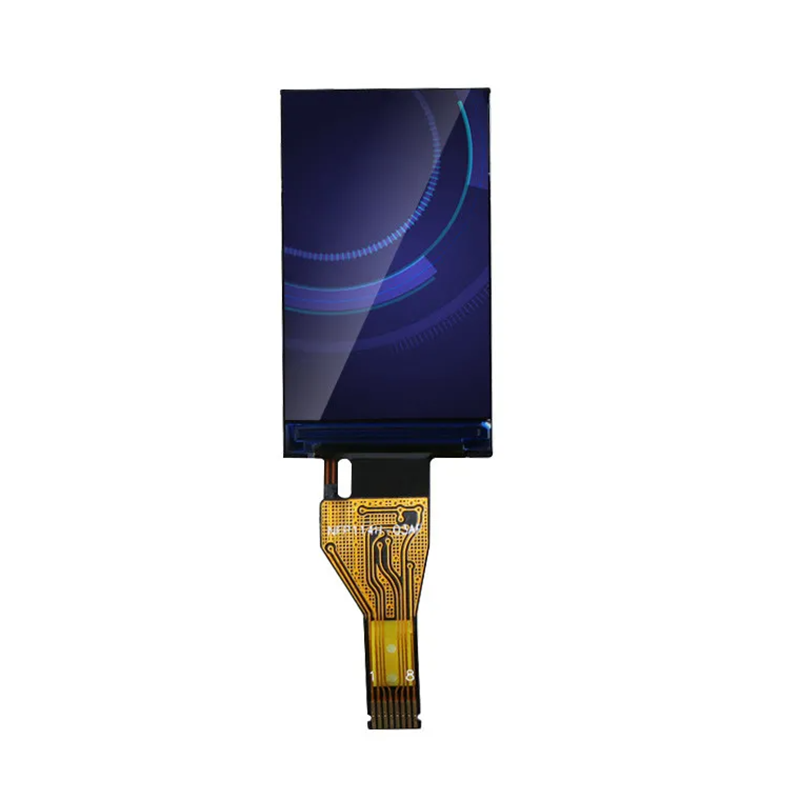

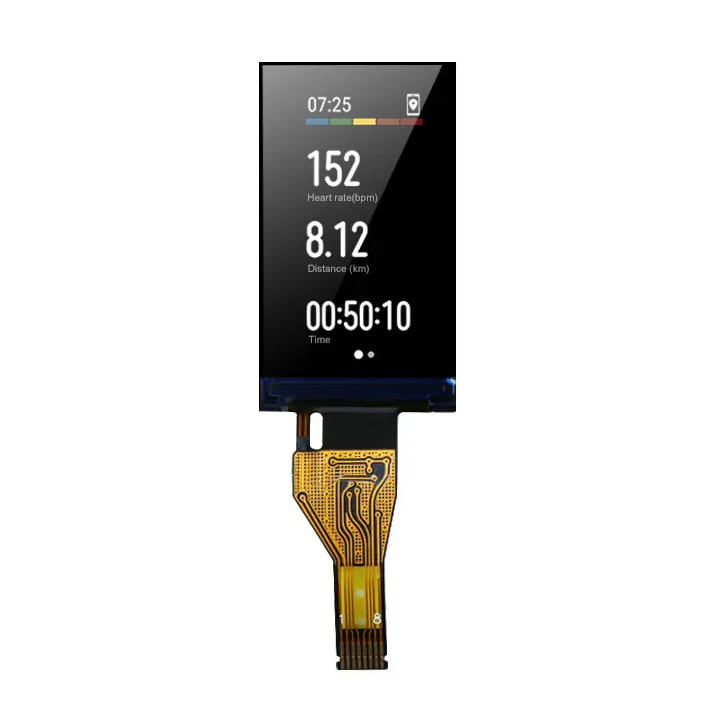

The 1.14-inch TFT LCD display module P114H002 is mainly developed for miniaturized smart terminals. It is equipped with a high-performance ST7789V driver chip and resolution 135×240 pixels. Besides its ultra-small size, this display has a high brightness and simple SPI interface. Therefore, it can be used as a compact and reliable visual output solution for smart wearables, portable medical devices, IoT sensor nodes, small dashboards, and open-source hardware projects such as Raspberry Pi.
The module size is 14.87mm × 24.91mm and the pixel pitch is 51μm × 153μm. It uses RGB vertical stripe pixel arrangement and can display 262K colors with very vivid color gradations. IPS full-view technology guarantees that there is no color distortion or brightness reduction even when the screen is viewed from different directions. Hence, it eliminates the problem of restricted viewing angles faced by traditional TN panels. The clarity and consistent looking of icons and texts remain no matter the front, side, or top-down perspectives, which is why the device is especially good for use cases of varying wearing postures such as smart bracelets and neck-worn gadgets.

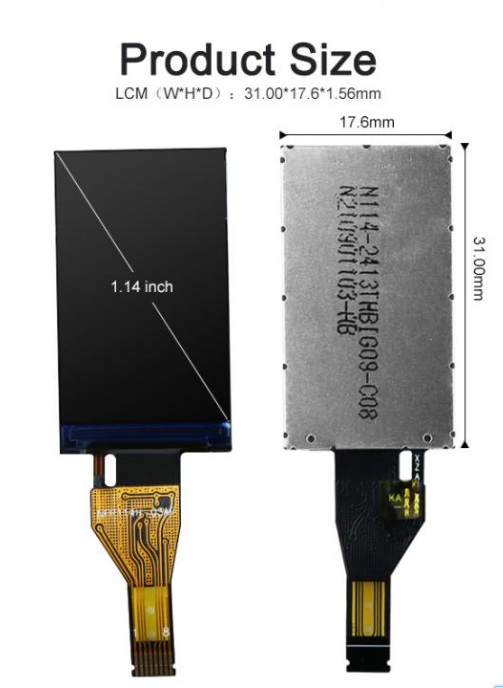

The dimensions of the module are very small at 17.60mm × 31.00mm × 1.56mm, and the product weighs only slightly more than 1.56mm so that it can be easily embedded even in very small micro devices. FPC cable bending capability is excellent as well as flexible routing, allowing complex internal designs. Thanks to 35ms response time, the motion picture will be smooth and without trailing. It performs extremely well environmentally too, with an operating temperature range of -20℃ to 70℃ and a storage temperature range of -30℃ to 80℃, which means that it works very stably even in industrial sites and outdoor environments with large temperature and humidity fluctuations.
Shenzhen Yitai Optoelectronics Co., Ltd. is making the display industry ecosystem its home. After its establishment in 2014, the company has closely aligned its activities with partners both upstream and downstream. It occupies a facility of 20,000 square meters, operates 20 production lines, and has the capability to produce 2.5–3 million units monthly, positioning itself as a manufacturing node in the ecosystem. The 320-strong team counts 28 among its R&D personnel (research and development) who through innovation and more than 20 patent technologies have contributed to the ecological system. Certified to ISO9001 as a national high-tech enterprise, it has a ten-thousand-level cleanroom and fully automated LCD production lines at its disposal. The product portfolio consists of more than a thousand TN/HTN/STN/VA modules and over a hundred TFT color screens. Ecosystem partners can be served by customization of LED backlights. Small size market ranging from 0.96–7 inches is the product expense vector; Besides the products pass very strict testing and usage in the medical, inspection, smart home, and IoT sectors, the company also exports overseas to co-build the industry ecosystem.

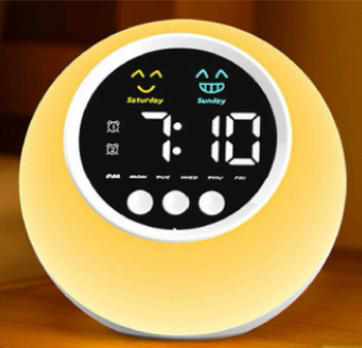

Making a 2.8-inch minimalist clock display for a famous home brand, customized to low-power IPS full lamination technology the wide clear viewing angle of 180° is supported. Since the main use of this type of clock will be in bedrooms, the extra-effort went into the design to make it an ultra-thin borderless one with soft light guide structure. Now it is a perfect match to the aesthetics of the modern home. To the screen was added an intelligent light sensing adjustment system, it can change the display modes automatically upon the change of daylight; At night, the switch to soft light mode is made independently so that the time can still be read clearly but the quality of sleep is not disturbed.
We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
Customized development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer, using high-contrast IPS full lamination technology, and meeting IP65 protection level requirements. We have fine-tuned the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) to suit to the particular needs of the power industry, thereby guaranteeing reliable performance in complicated settings like substations. The screen combines an adaptive brightness control system that can, on its own, choose the best display effect according to the lighting around it, which is a big step in making data reading during the outdoor inspection process more effective and safer.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
