| Model | PMOLED132001 |
| Brand | Yitai |
| Size | 1.32" |
| Resolution | 128x96 |
| Active Area | 26.86×20.14mm |
| Outline Dimension | 32.5×29.2×1.61mm |
| Color | White |
| Brightness | 100 (Min) cd/m² |
| Power Supply Mode | External supply |
| Interface | Parallel / I²C / 4-wire SPI |
| Warranty | 1 - 2 years |

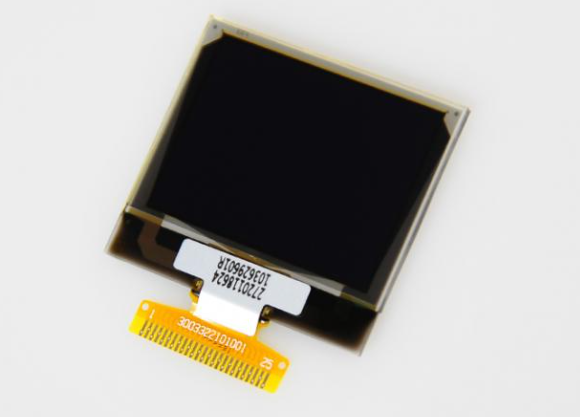

PMOLED132001 is a 1.32-inch micro OLED display in white monochrome with a resolution of 128×96, which is able to efficiently show characters, icons, and simple graphics within a 26.86×20.14mm display area. It has a 100 cd/m² brightness level, making it very gentle and non-glared even in a dark environment, plus a perfectly black background that piece of white content extremely high contrast, making it easier for people to recognize the information than with the traditional LCDs - this is the secret behind smart wrist bands only illuminating the wrist when they are raised at night and the status of industrial equipment still being quite visible in the dimness of machine rooms.
Impressive is also its simple structure: only 1.61mm thick for the module and the dimensions are 32.5×29.2mm, it is even thinner and lighter than a coin. There wasn't any backlight module stacked, neither the thickness of liquid crystal molecules; PMOLED could be considered as devices' almost 'two-dimensional' form allowing the most precious parts such as batteries, sensors, and antennas to have more space. This physical-level minimalism results in the thinness and lightness competitiveness of the final product.
It is cleared through different reliability tests as well; it works from -20℃ to 70℃ inside temperature range and it has been in the high and low temperature cycling, vibration, and anti-interference conditions, so it can be used with confidence in industrial sites, outdoors, and vehicle-mounted scenarios.
Besides providing display products themselves, the company also provides a series of services. Since its founding in 2014, the company has continuously been delivering a full range of services from display solution design and customized LED backlight source production to after-sales assistance. The 320-strong employee team, including 28 R&D staff with a 20,000 m2 plant, is creating value for customers. With 20 production lines, the monthly output reaches 2.5 to 3 million units, ensuring that the services can be delivered on time. The company has obtained over 20 patents, ISO9001 certification, and is recognized as a national high-tech enterprise. A class-10,000 cleanroom and automated production lines ensure the quality of the services. Products include more than a thousand TN/HTN/STN/VA models and over a hundred TFT color screens, with a focus on the small-size market from 0.96 to 7 inches. Having been in the market for 12 years, the products have found their way into handheld testing, portable medical devices, smart homes, and IoT terminals, in addition to their global exports.
Used our expertise in the area to create a customized 3.5-inch industrial intercom display with a high-brightness IPS fully laminated touch screen of a well-known communication equipment manufacturer, to meet IP67 protective class. Besides this, we also re-designed the shock-resistant frame and anti-slip texture for the uniqueness of the industry, so as to maintain high performance even when exposed to tough conditions. The screen is equipped with intelligent light-sensing adjustment technology, which based on the surrounding light environment can automatically switch between day and night display modes, thus enormously increasing visibility and operational efficiency in outdoor work.
Produced a 4.3-inch charging pile interactive display for a well-known new energy brand. It is a high-brightness IPS full lamination digital panel, satisfying the IP65 protection level requirements. We specifically developed the anti-glare layout that keeps its visibility even in bright places and the wide temperature operation performance (-30°C~70°C) for outdoor situations, so that the display would be clear in all weather conditions. The touch screen comprises of a smart light-sensing adjustment module, which can instantaneously modify the display brightness according to the day and night lighting changes. Thus the user operation experience is amplified significantly.
Customized a 4-inch financial-grade encrypted display for international banks, using a military-grade IPS full lamination touchscreen, compliant with PCIDSS payment security standards. To meet the high security requirements of the financial industry, we specially designed an anti-peeping structure and tamper-proof frame to ensure data security on ATMs and other self-service terminals. The screen integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, significantly enhancing the customer operation experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
