Product Description
| P/N | P050B028-IPS-CTP |
| Size(inch) | 5 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 300 |
| Interface | RGB 24bit |
| Driver Ic | ST7262 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
This type of TFT LCD display, thanks to its support for RGB 24bit, is suitable for a wide range of applications. The driver for this display is the ST7262 IC.
The operational temperature range is -20°C to 70°C and the storage temperature is from -30°C to 80°C, which meets the requirements of industry standards.

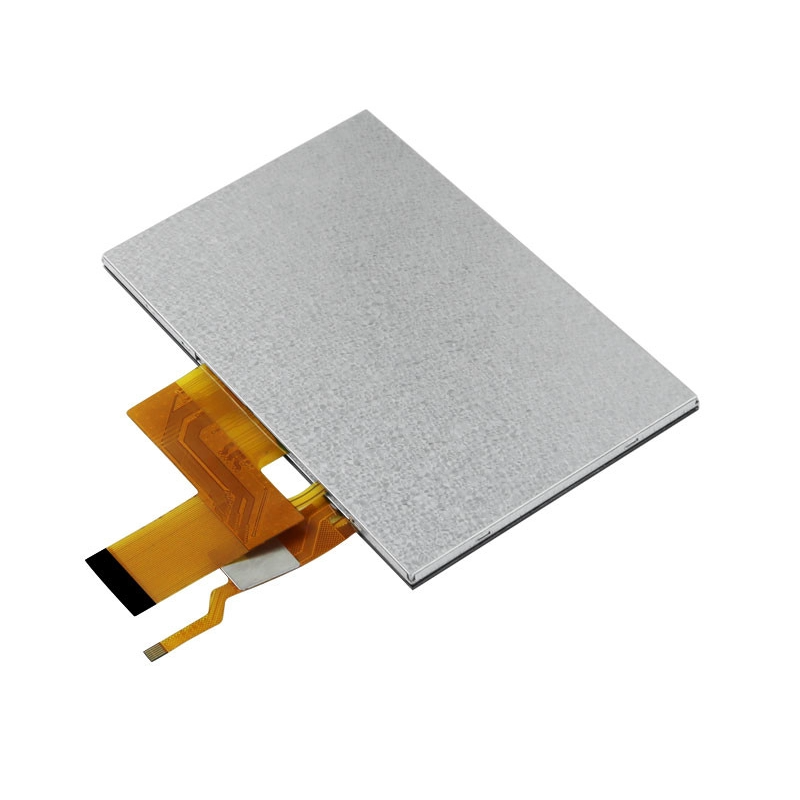

The P050B028-IPS-CTP is a 5-inch display featuring a fully-viewable IPS TFT panel, equipped with a resolution of 800×480, in a display area of 120.70×75.80mm. This RGB 24-bit true color interface yields a largespectrum output of 16.7 million colors, providing smooth and natural color transitions with very limited color deviation, crucial for grayscale recognition in medical diagnostics, status differentiation in industrial visualization, and accurate brand color reproduction in consumer electronics. The brightness level and the inherent high contrast feature of IPS technology that is used in this interface equal about 300 nits, and it retains high visibility in layers both inside and outside a room.

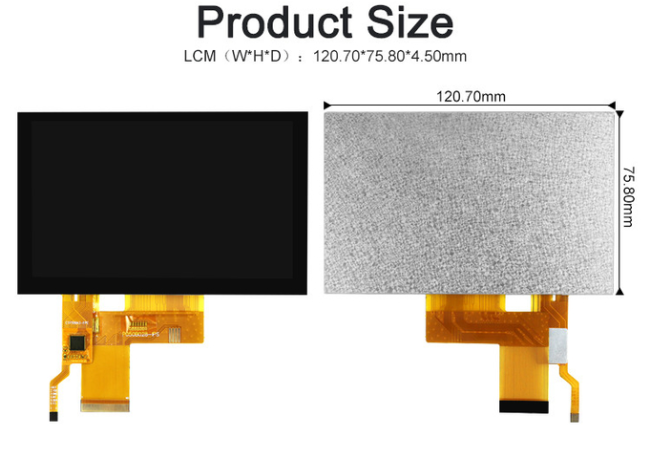

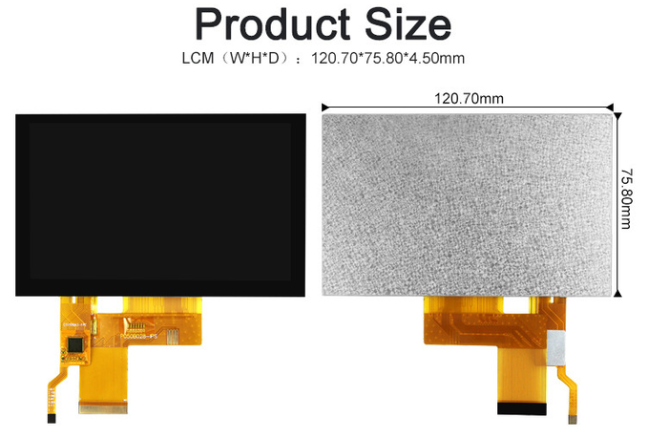

The dimensions of the P050B028-IPS-CTP are 120.70×75.80×4.50mm, and the thickness is 4.5mm only. The LED backlight was designed in such a way that it can preserve the high luminance and the total thickness is still controlled. Two FPC cables from different directions are used to connect the display and the touch panel to separate signal lines and avoid electromagnetic interference. This design feature allows the product to work in a wide variety of facilities of today’s industrial sectors, including those with the presence of very strong electromagnetic fields.
Talent planning is the key to sustainable development of Shenzhen Yitai Optoelectronics Co., Ltd. Out of the total workforce of 320, 28 are engaged in research and development at the senior level which is considered the main technological innovation force of the company. Initially, the 2014 founded team, has through its patent portfolio of more than 20 patents made the company enjoy the status as a high-tech enterprise at the national level. The company through the 20,000 sq.m large manufacturing plant and 20 assembly lines can produce 2.5-3 million units monthly which helps to keep the talents busy showcasing their skills. The ISO9001 quality management system, 10,000-class dust-free workshop, and fully automated production lines form the hardware facilities for talents showcase. There are thousands of TN/HTN/STN/VA modules and hundreds of TFT color screens, while LED backlights can be customized. With a focus on the 0.96-inch to 7-inch market, and twelve years of production experience, the products are extensively used in the healthcare, inspection, smart home, and IoT fields, and are also exported abroad.
Customized the development of a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer with a high-brightness IPS fully laminated touch screen that also met IP67 protection standards. We made a shockproof frame and anti-slip features to meet the special requirements of the industry, thus ensuring dependable operation even in the most challenging conditions. The screen features intelligent light-sensing technology, which automatically switches between the day and night display modes depending on the surrounding light, thereby greatly improving visibility and work efficiency during outdoor activities.
Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards. There are antibacterial bezels and anti-glare features that guarantee a working environment free from disturbances like operating rooms. The screen incorporates an intelligently controlled ambient light system that can change display properties to match the surroundings, thus reducing visual discomfort for doctors and staff and allowing them to work longer and more effectively.
The 3.5-inch high-precision temperature control display for a famous HVAC brand was a bespoke piece of work using the latest full-view IPS full lamination technology and multi-touch operation. For our line of work in the segment of home environment, our user experience team designed the device with an ultra-thin bezel and round corners to go with the modern interior decoration styles. Dual function of brightness and contrast optimization that work according to indoor lighting were the key drivers for the user operation experience and energy savings.
Core Strength

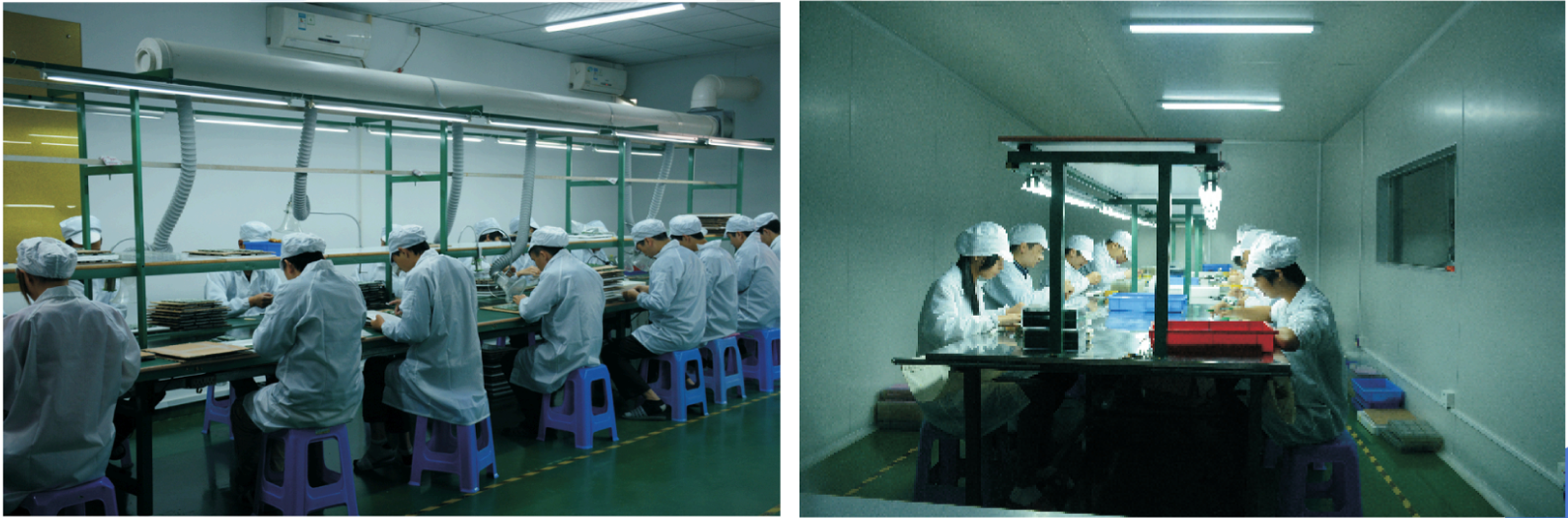

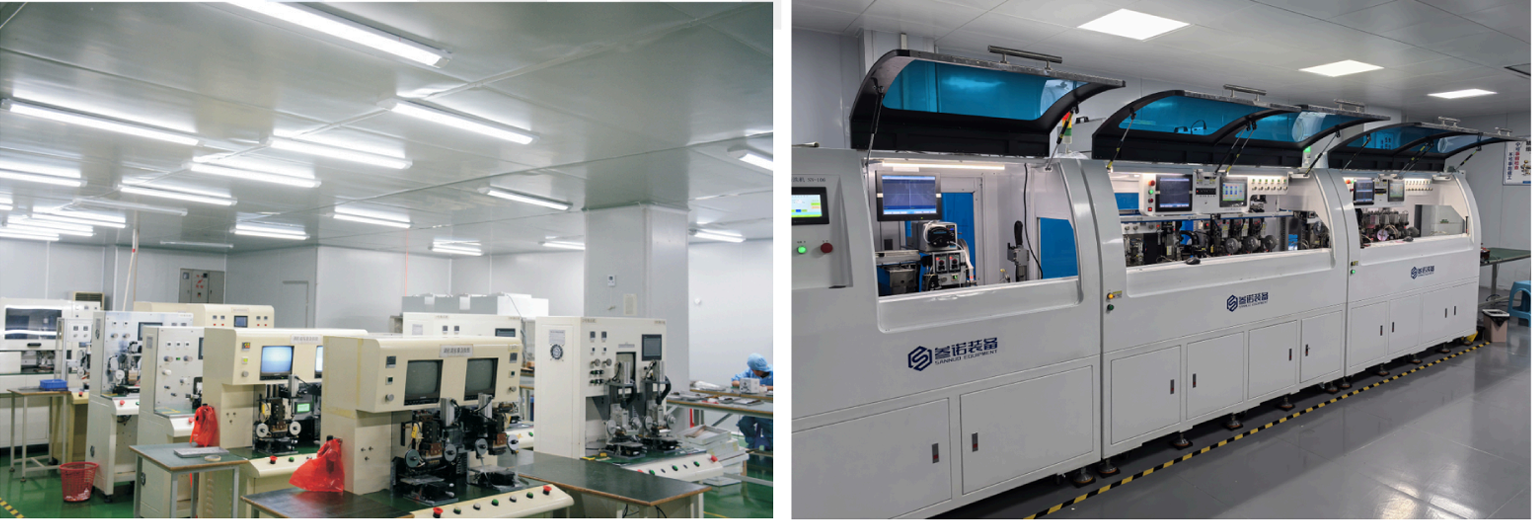

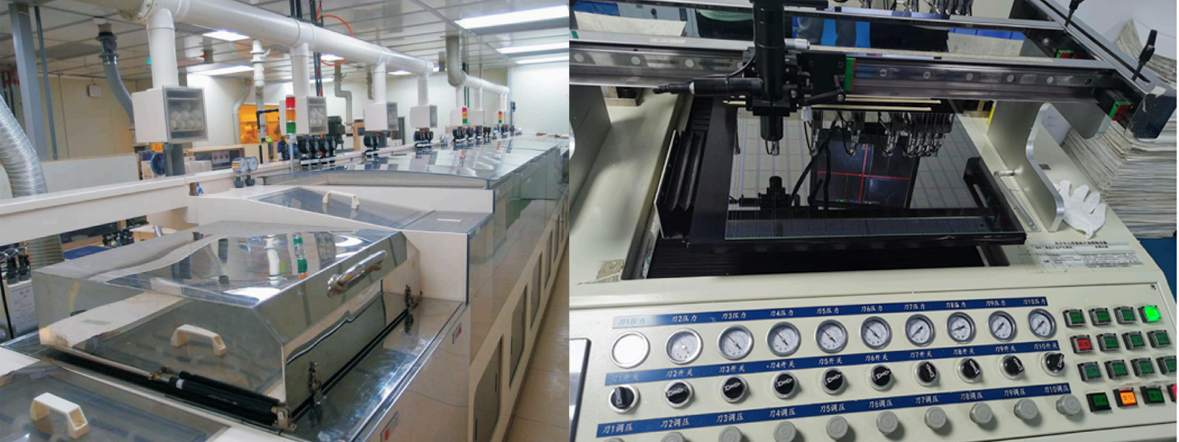

Modernized Production Base: Equipped with a 10,000-class dust-free purification workshop and LCD mid-to-high-end fully automated production lines to ensure stable and reliable product quality.
Large-Scale Production Capacity: Currently has more than 100 employees, with a monthly production capacity of 2.5 to 3 million units, capable of meeting customers' large-volume order demands.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
