Product Description

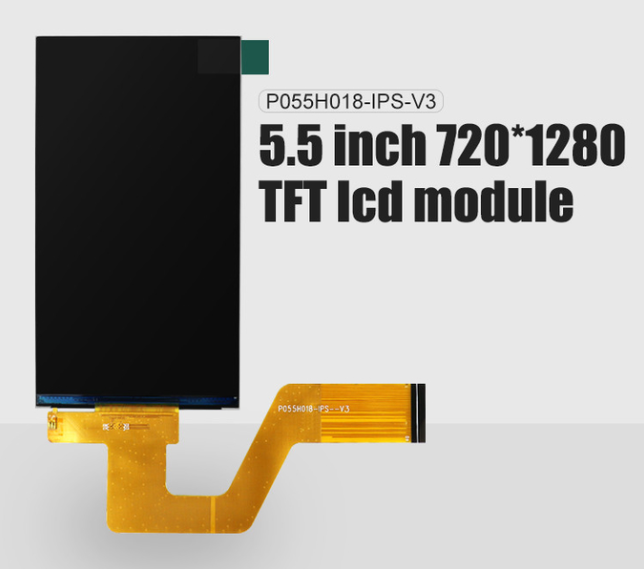

New published IPS TFT LCD Display for commercial and industrial use. Our TFT LCD has a 5.5 inch diagonally.
The resolution of our tft lcd is 720 * 1280. The normal brightness is 300 nits under the test of laboratory.
| P/N | P055H018-IPS-V3 |
| Size(inch) | 5.5 |
| Resolution | 720*1280 |
| Brightness (cd/m²) | 300 |
| Interface | MIPI |
| Driver Ic | ST7703 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The Interface of this LCD is MIPI. We can also customize other types of interfaces and FPCs for you. The ST7703 driver IC provides on-chip storage and power system.
If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.

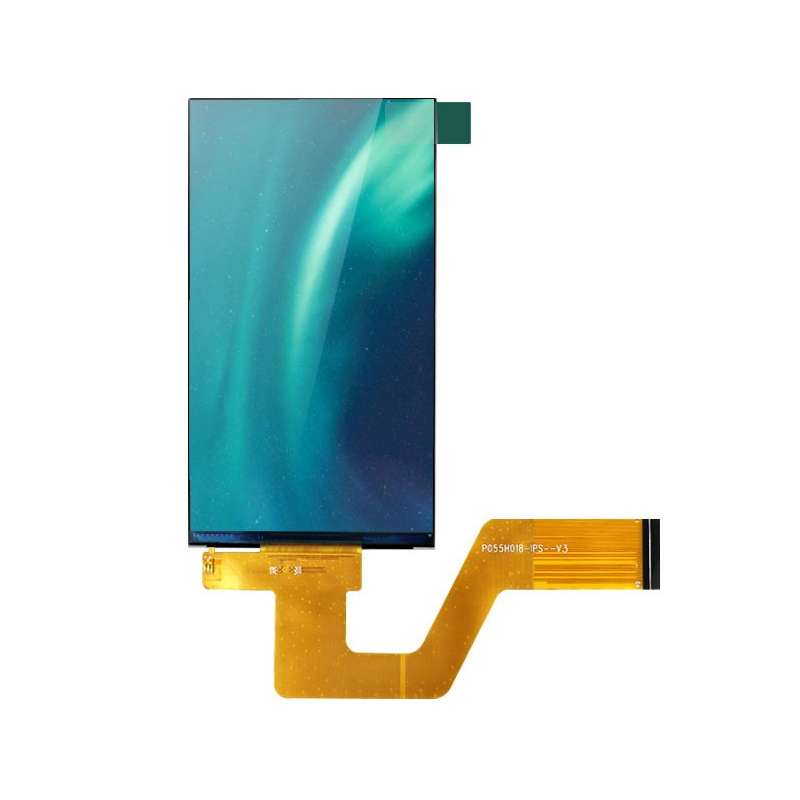

The P055H018-IPS-V3 is equipped with a 5.5-inch IPS full-view TFT display panel that can produce a resolution of 720×1280, resulting in retina-quality vertical pixel density. In fact, the edges of the texts are very crisp and sharp, just like printed words, and the tiniest details of icons can be seen clearly. Besides that, with a brightness level of 300 nits, the screen is still very clear and legible during both indoor and outdoor use. The use of IPS technology guarantees that the display has a 178° wide viewing angle without a change in color, so no matter if there are several people watching the screen, the angle of the handheld device changes or the device is switched from portrait to landscape, the image is stable and the colors remain consistent.
Typical industrial applications: handheld industrial PDAs, portable medical instruments, drone controllers, smart POS systems, in-car navigation, IoT control panels, and so on. Ether Optoelectronics offers a wide range of customizable LED backlight services to the full lineup of 0.96-inch to 7-inch panels that allow for deep customization of resolution, brightness, and interfaces helping customers design uncomparable smart terminals.
Core Strength
Modernized Production Base: By having a 10,000-class dust-free purification workshop and LCD mid-to-high-end fully automated production lines, the company is able to ensure that the quality of the products is stable and reliable.
Large-Scale Production Capacity: Besides having a workforce of more than 100 employees, the company also can produce between 2.5 to 3 million units on a monthly basis which makes it possible to supply customers' large-volume order demands.
Diversified product line: The company has successfully created over one thousand TN/HTN/STN/VA display products and also hundreds of different TFT color LCD screens with different applications, plus it offers customized LED backlight services to meet various customer needs.
Flexible manufacturing capabilities have enabled Shenzhen Yitai Optoelectronics Co., Ltd. to maintain a calm attitude even when there are unpredictable changes happening in the market. The company was started in 2014 and since then, it has built an agile production system with 20 production lines that can very quickly switch their operations between over a thousand TN/HTN/STN/VA products and hundreds of TFT color screens with a combined monthly output ranging between 2.5 to 3 million units. Having a 20,000 square-meter factory and a total workforce of 320 people that includes 28 R&D employees facilitate product customization. The company has been granted more than 20 patents, holds ISO9001 certificate, and has also been recognized as a national high-tech enterprise. The ten-thousand-level cleanroom and automated production lines support quality assurance in flexible manufacturing. Focused on the 0.96–7 inch small-size segment of the market, LED backlights are capable of deep customization. Apart from these, extensive high and low temperature, vibration, and anti-interference testing is conducted. The products have wide usage in handheld detection, portable medical devices, smart home applications, and IoT terminals and are also exported to Europe, America, and Southeast Asia.
Designed and manufactured a 3.5-inch industrial-grade intercom display solution for a famous communications equipment manufacturer. The unit was featuring a high brightness IPS fully laminated touch screen and was compliant with IP67 requirements for dust and water protection. Besides that, shock-resistant frame and anti-slip feature have been improved based on the special needs of the industry so that reliable operation is ensured even under harsh environments. The screen integrates intelligent light-sensing adjustment technology, which facilitates switching between day and night display modes according to ambient light, thereby greatly improving visibility and work efficiency during outdoor operation.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer.The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
