Product Description
Parameter:
| Model | P050H031-V2-IPS-CTP |
| Screen Size | 5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Pin | 30 pin |
| Display area | 62.10(H)x110.40(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |

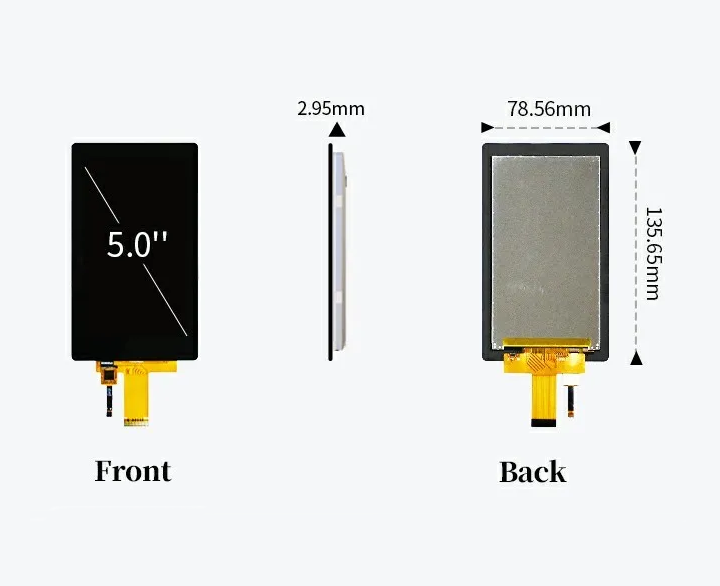

| Outline Dimension | 78.56x135.65x2.95mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | MIPI |
| Back-light | LED Side-light type |
| LCM IC | ST7703 |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |
The P050H031-V2-IPS-CTP is an IT type 5 inch full-view TFT module with integrated capacitive touch, resolution of 720×1280, it is possible to display vertical HD quality in a 62.10×110.40mm display area. With a small pixel pitch of 94.5×94.5μm and RGB stripes vertically arranged, text looks as sharp as the print and icon details are vividly rendered. The 350nit brightness combined with an 800:1 high contrast ratio ensures visible interface layers both indoors and outdoors; the 262K color depth makes medical imaging grayscale transitions and industrial interface status color blocks reproduce accurately.
Compact structure: the overall dimensions are 78.56×135.65×2.95mm, the thickness is only 2.95mm. Despite the LED side-entry backlight combined with touch capability, the module is very thin. Operating temperature ranges from -20°C to 70°C and storage temperature from -30°C to 80°C. Besides, the module is certified for temperature and humidity extremes, drop and vibration, and interference resistance.

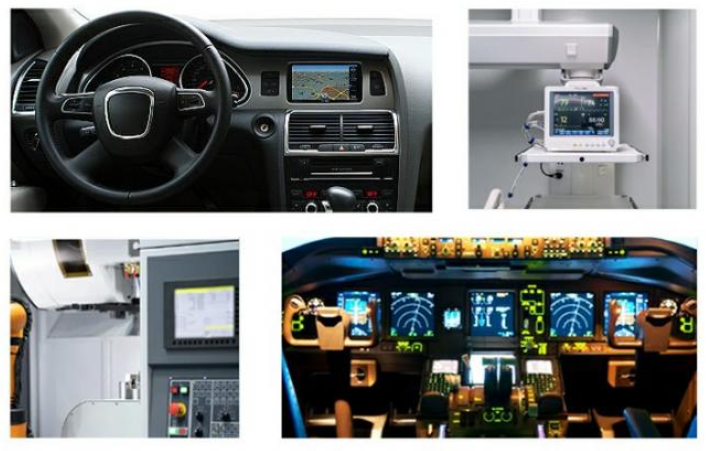

Typical applications: automotive central control displays, portable medical devices, industrial handheld terminals, drone ground stations, intelligent security panels, etc. Ether Optoelectronics is able to provide LED backlight from 0.96 inches to 7 inches and touch panel thickness, cover glass material, and interface type for in-depth customization, helping customers create professional-grade touch display terminals.

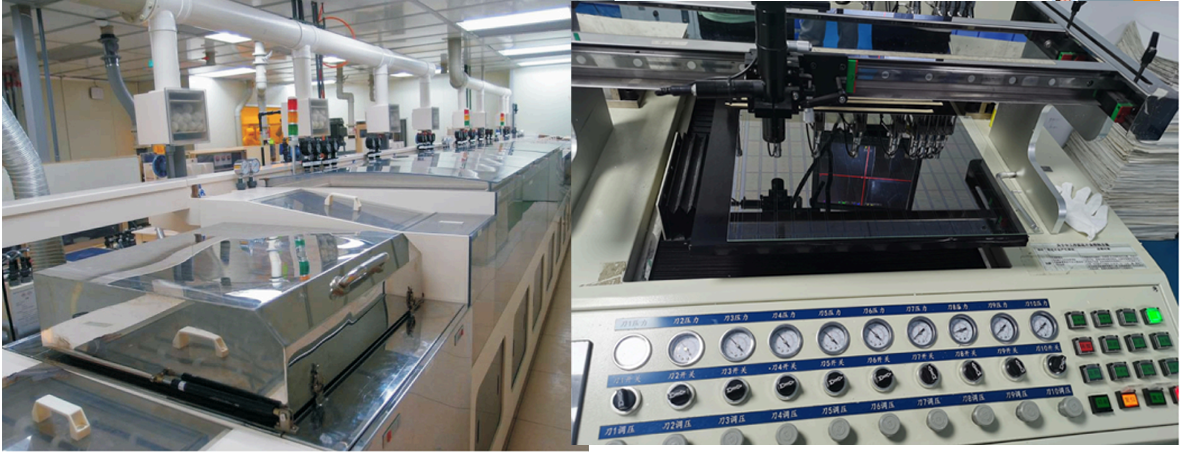

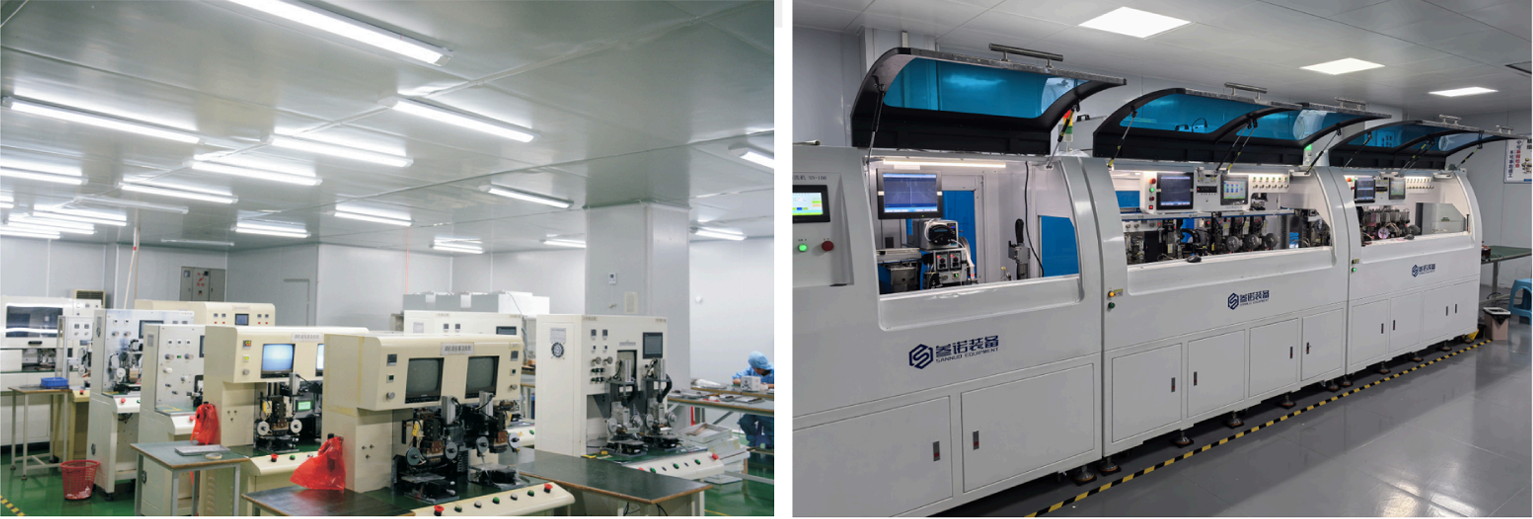

Shenzhen Yitai Optoelectronics Co., Ltd. is a provider of display solutions that are tailored to specific industries. The company has developed over a thousand TN/HTN/STN/VA products and hundreds of TFT color screens, with LED backlights customizable to specifications for different application scenarios such as handheld detectors, portable medical devices, smart home control panels, and IoT terminals. Founded in 2014, with twelve years of industry experience, the company operates a 20,000 square meter facility with 20 production lines that produce 2.5 to 3 million units per month. It has a team of 320, including 28 R&D personnel, and holds more than 20 patented technologies. The company is a national high-tech enterprise, ISO9001 certified, has a 10,000 class cleanroom, and fully automated production lines. Focusing on sizes ranging from 0.96 inches to 7 inches, its products undergo rigorous environmental testing and are sold domestically as well as exported to Europe, America, and Southeast Asia.
Industry Advantage: Leader in the field of small-size displays
Industrial Control
Our displays perfectly suit the portable teach panels, compact HMIs, and handheld testers since they have been known for their robustness, reliability, and excellent performance in harsh environments.
Medical Equipment
We can impress doctors with the latest displays that are extremely high-definition, high-brightness, and low-power that adhere to medical standards for portable monitors, handheld diagnostic devices, blood glucose meters, and more, thereby facilitating accurate diagnoses for doctors.
Smart Home
We offer interactive, energy-efficient, and highly aesthetic display modules for smart switches, thermostats, and small smart home appliances. Expect rapid customization and reliable quality from us while we are working on becoming the core supplier for many leading smart home companies.
Information and Communication
With our display solutions for walkie-talkies, law enforcement recorders, and emergency communication terminals, you get excellent optical performance, superior visibility, and outstanding energy efficiency. Besides these functions, these solutions meet military-grade standards to allow stable and reliable visual output even in extreme environments, thereby facilitating around-the-clock efficient operation of communication equipment.
We custom-made a 3.5-inch industrial-grade intercom display for a top communication equipment manufacturer, featuring a high-brightness IPS fully laminated touch screen and meeting IP67 protection standards. To address the industry's unique requirements, we not only upgraded the shock resistant frame but also designed the exterior with anti-slip texture, which guarantees the device will work reliably in harsh environment. The device comes with a smart light-sensing adjustment feature that can automatically change the display mode between day and night according to the surrounding light, thus making it much easier to see and operate, especially when working outdoors.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
Designed a 3.5-inch high-precision temperature control display mainly for a famous HVAC brand, it was made with full-view IPS full lamination technology and the multi-touch operation feature. As per home environment requirements, the ultra-thin bezel and rounded corner design were used, so it is perfectly in line with modern interior decoration styles. The display carries an ambient light intelligent adjustment function that can automatically optimize display brightness and contrast according to indoor lighting conditions, greatly improving user operation experience and energy saving.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
