| P/N | P024C118 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 3 Wire 2 Line SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |

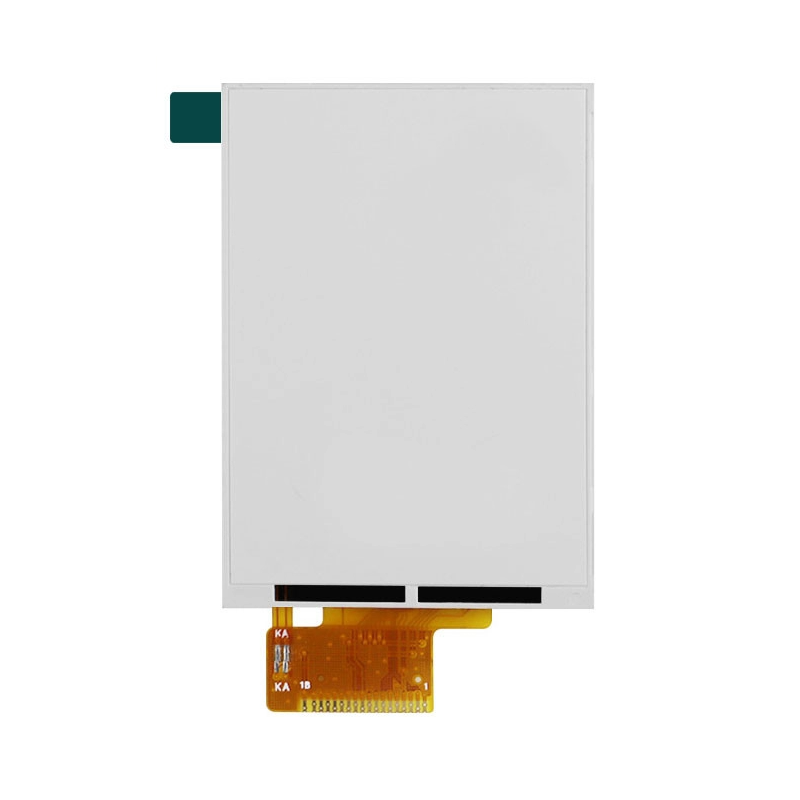

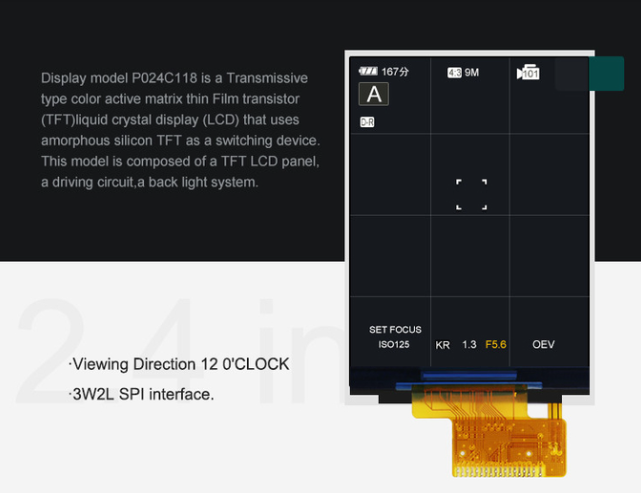

P024C118 is a 2.4-inch TFT LCD display module with industrial control and embedded terminals applications in mind. It is equipped with high-performance ST7789V2 driver chip, a resolution of 240×320 pixels (QVGA portrait), and offers a compact and reliable visual output solution for industrial HMI interfaces, portable instruments, data acquisition terminals, smart POS devices, and IoT gateways. Its minimal 3-wire/2-wire SPI serial interface, high brightness display, and low pin count make the solution very compact and effective.

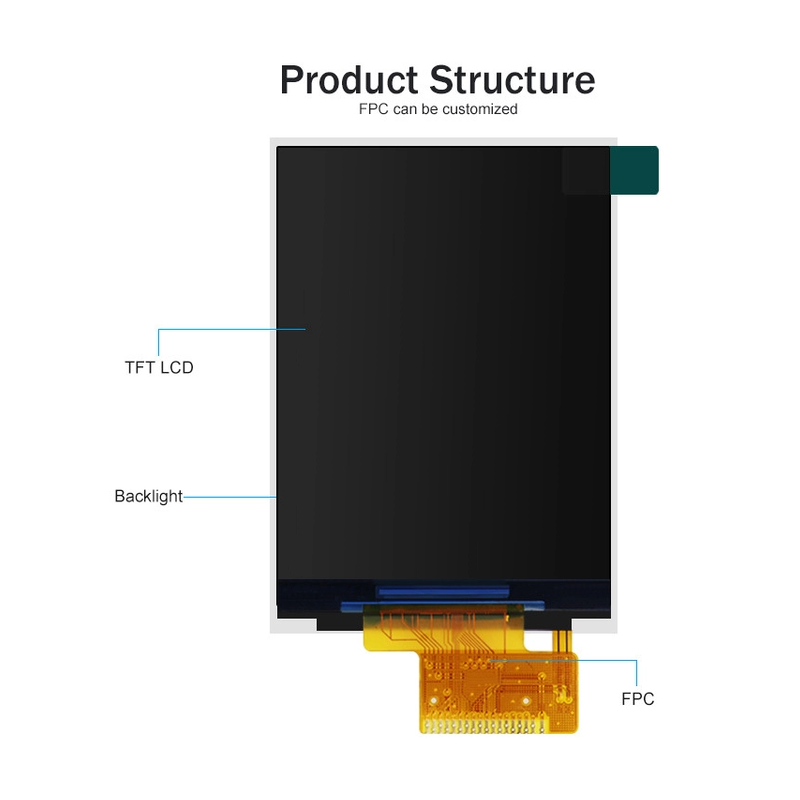

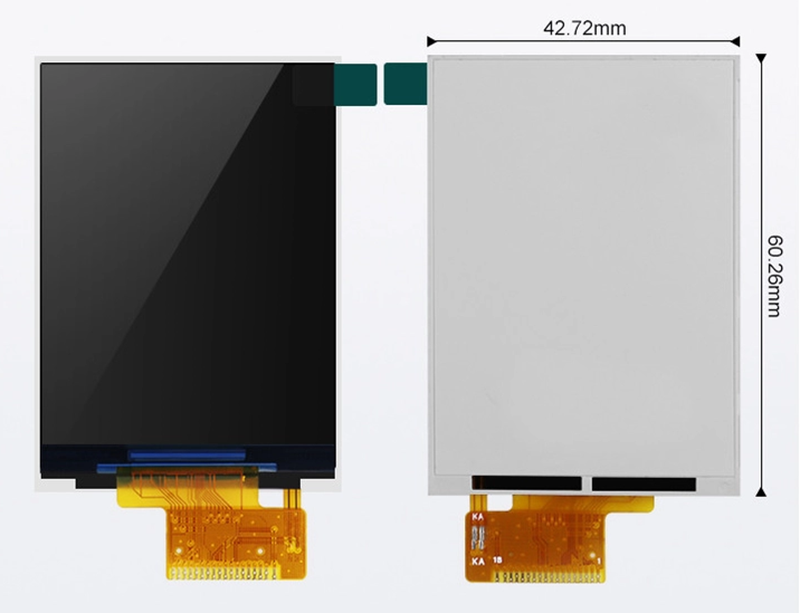

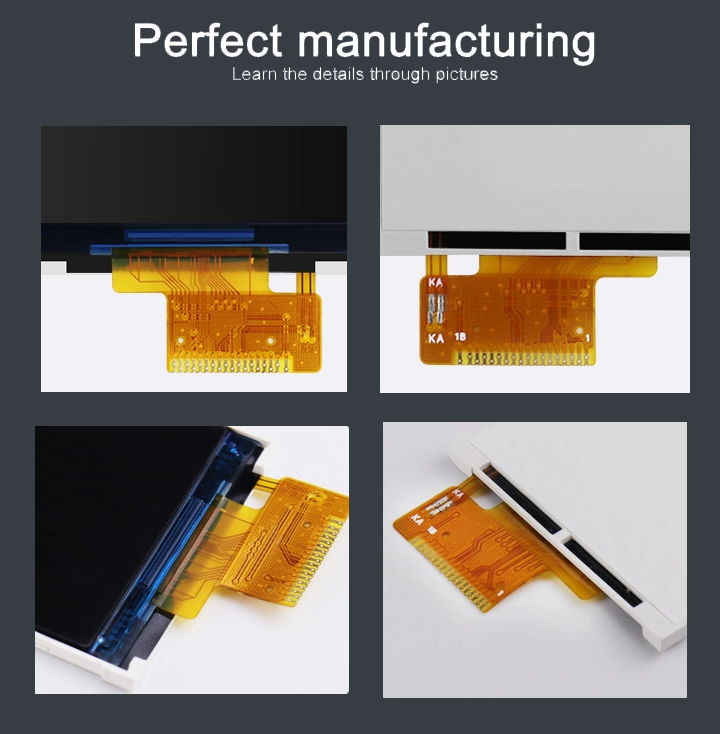

The module measures 42.72mm × 60.26mm, has a compact structure, and boasts excellent FPC bending performance. It supports customized designs, thus making it very flexible for integration into various space-constrained industrial equipment. The integrated backlight drive and display control greatly simplify power management and PCB layout. The product has excellent environmental adaptability and can operate reliably all year long even in harsh conditions where there are large changes in temperature and humidity, such as factory workshops, outdoor base stations, and field operations, with the temperature range going from -20°C to 70°C.
A rich product matrix meets customers' one-stop procurement needs. Shenzhen E-Tai Optoelectronics Co., Ltd. has successfully developed over a thousand TN/HTN/STN/VA display products and hundreds of TFT color LCD screens, and provides customized LED backlight services, covering a complete product line from monochrome to full-color, from standard to customized. The company was established in Shenzhen in 2014, with 12 years of product experience, a 20,000-square-meter base, and 20 production lines with a monthly capacity of 2.5 to 3 million pieces. The team of 320 includes 28 R&D personnel continually expanding the matrix, and over 20 patented technologies inject elements of innovation. ISO9001 certified, recognized as a national high-tech enterprise, a ten-thousand-level cleanroom and fully automated production lines ensure the quality of the matrix. Focusing on small displays from 0.96 inches to 7 inches, the products undergo rigorous testing and are widely used in medical, inspection, smart home, and IoT fields, selling well both domestically and internationally.
We created a 4.3-inch interactive screen for a charging station of a famous new energy car brand, using high-brightness IPS full lamination technology, achieving the IP65 protection level. To make the display visible under different weather conditions we opted for anti-glare properties and a wide temperature operation (-30°C~70°C) for outdoor environments. The screen also comes with an intelligent light-sensing adjustment feature that can automatically adapt the display brightness according to the changes in day and night light, providing a much better user operation experience.
We made a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer, containing a high-brightness IPS fully laminated touch screen and achieving IP67 protection requirements. The frame was made shock-resistant and slip-resistant for industry-specific needs, thereby ensuring the product's ability to withstand harsh conditions. The screens operate on an ambient light-sensing system that can change the modes between day and night based on the surrounding light and improve visibility and operational efficiency for outdoor work users.
We made a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer, using high-contrast IPS full lamination technology, achieving IP65 protection level requirements. We optimized the dustproof and waterproof structures and the wide temperature design (-30°C to 70°C) in order to fulfill the special needs of power industry and ensure stable operation in complex environments like substations. The screen contains an adaptive brightness adjustment system which is capable of automatically optimizing the display based on ambient light, thereby greatly improving the efficiency of data reading and enhancing the safety during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
