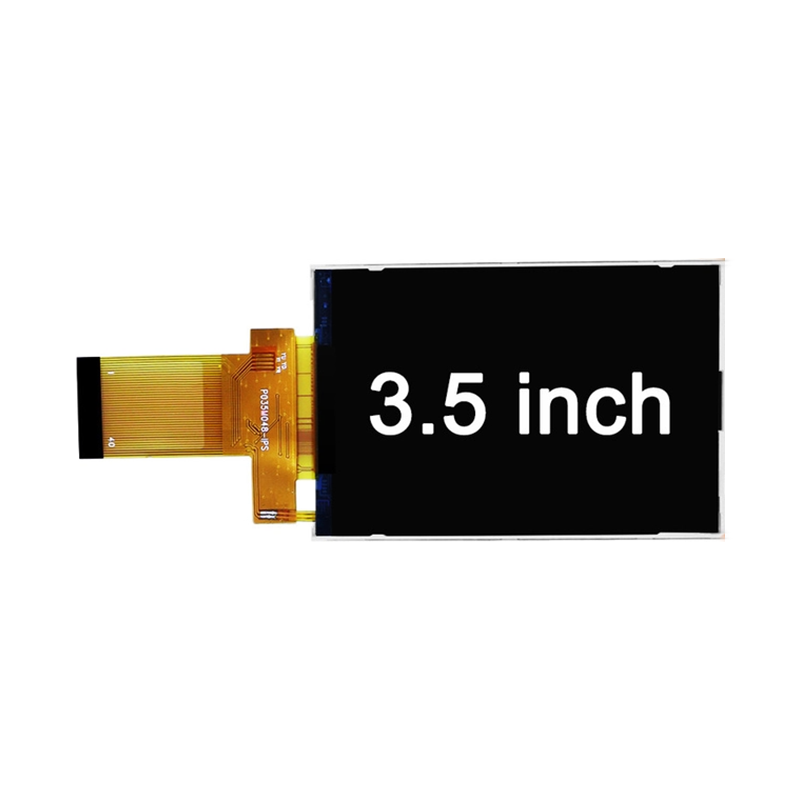

Polcd New published IPS TFT LCD Display for commercial and industrial use. Screen size is 3.5 inch.A very common and hot selling size for small size TFT display. Improve your product design by adding our 320 * 480 resolution product. 350 nits allow this lcd to work well indoors.

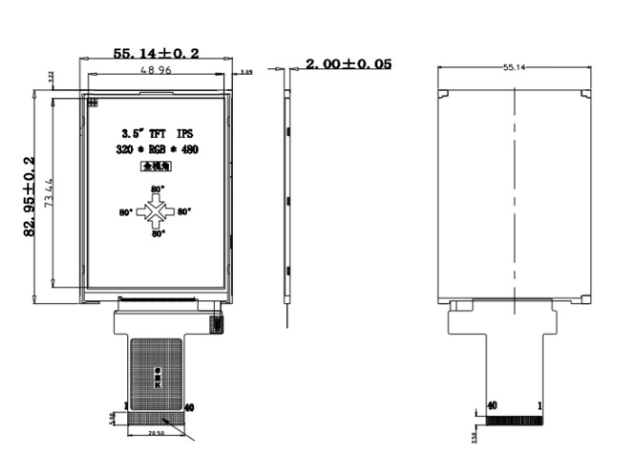

| P/N | P035M048-IPS |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness(cd/m²) | 350 |
| Interface | 18BIT RGB |
| Driver Ic | ST7796S |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The P035M048-IPS is an industrial-grade 3.5-inch TFT LCD display module equipped with the technology suitable for control systems and smart terminals. The highlight is the IPS full-view technology that allows the widest viewing angles; ST7796S, a high-performance driver chip, is embedded in it, so it's a smart driver; 320×480 pixels (HVGA portrait) is the resolution; 18-bit RGB wide color gamut interface allows for a wider range of colors. It is a professional level visual interaction solution for industrial HMI, portable instruments, vehicle navigation, smart POS, and IoT gateway devices with a high brightness display and ultra-thin metal backplate structure.
The brightness of the display can reach 350 cd/m², which is way above the normal specs for the same size. The LED side-lit backlight is very thin and uniform which results in high luminous efficiency and great visibility, not only indoors but also outdoors. Even when the light is strong, it is still clearly readable. Due to the metal backplate design, the heat generated is dissipated efficiently which means less temperature rise because of the continuous high brightness operation. This helps in extending the life and stability of the module and on the other hand, it also increases the structural strength for the module to remain functional even if it encounters vibration or impact in the industrial environment.

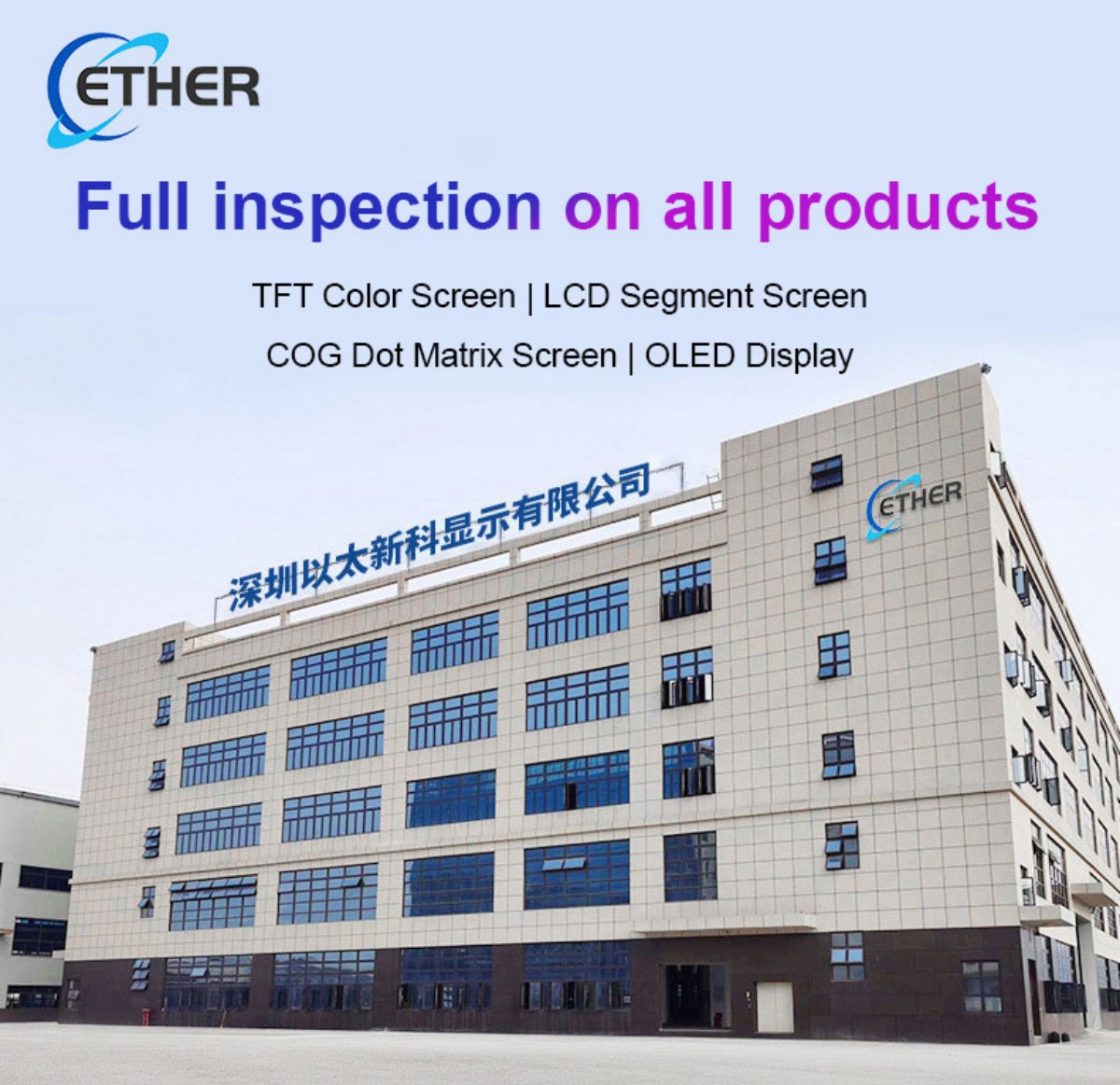

At Shenzhen YiTai Optoelectronics Co., Ltd, the creation of maximum value for customers is the business goal. Besides offering high-quality displays, the company also accelerates customers product development cycles and help them lower total costs by means of deeply customized services. Established in 2014, it has 12 years of customer value experience, a 20,000-square-meter plant, 20 production lines capable of producing 2.5 to 3 million units monthly, and a staff of 320, including 28 R&D workers committed to value creation. ISO9001 certified, equipped with over 20 patented technologies, a national high-tech enterprise, a 10,000-level cleanroom, and fully automated production lines all together ensure the delivery of value.Besides a thousand TN/HTN/STN/VA products, a hundred TFT color screens, and custom LED backlights, the focus is on the 0.96-inch to 7-inch market. Product line-up is continuously evolving to meet the requirements of the medical, inspection, smart home and IoT terminals sectors. Having endured high and low temperature, vibration and anti-interference tests, products have achieved high performance and reliability certifications. Through creation of value, the company has been able to maintain long-term cooperation with customers.
We worked on the production a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer, which is supposed to be a high-brightness IPS fully laminated touch screen that meets the IP67 protection requirements. Furthermore, we have managed to invent a shock-resistant frame and an anti-slip texture that will be used to cater to the special needs of the industry, and will therefore allow working even in tough conditions. The display has an integrated light-sensing technology whereby it automatically detects the surrounding light and switches the display between the day and night modes accordingly; this feature is very helpful in outdoor situations for increasing both the visibility and the performance.
We created a 4.3-inch charging pile interactive screen for a prestigious new energy brand, employing the high-brightness IPS full lamination technique, and the device is compliant with the IP65 protection level requirements. We have particularly revised the anti-glare feature and enlarged the temperature usage function (-30°C~70°C) so that the product can efficiently handle outdoor conditions and display images clearly even under a variety of weather situations. The display is equipped with a smart light-detecting and adjusting apparatus that is capable of automatic brightness adjustment working based on changes of the day and night light, thereby giving a remarkable enhancement to the user interface.
Customized a 4-inch financial-grade encrypted display for international banks, using a military-grade IPS full lamination touchscreen, compliant with PCIDSS payment security standards. To meet the high security requirements of the financial industry, we specially designed an anti-peeping structure and tamper-proof frame to ensure data security on ATMs and other self-service terminals. The screen integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, significantly enhancing the customer operation experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
