Product Description

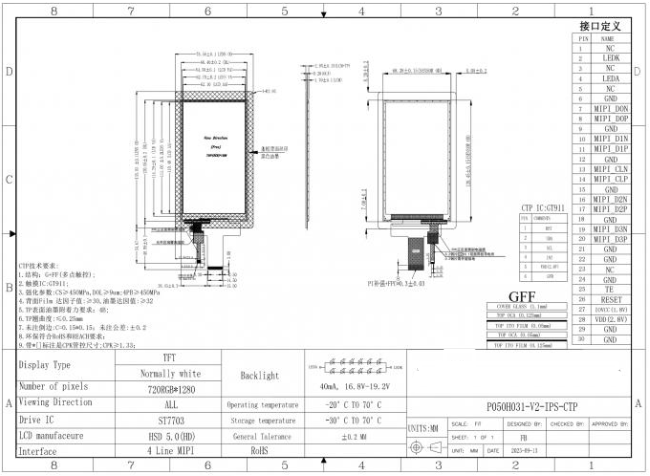

Parameter:
| Model | P050H031-V2-IPS-CTP |
| Screen Size | 5 inch |
| Number of Pixel | 720RGB(H)x1280(V) |
| Pin | 30 pin |
| Display area | 62.10(H)x110.40(V)mm |
| Pixel pitch | 0.0945(H)x0.0945(V)mm |
| Outline Dimension | 78.56x135.65x2.95mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | MIPI |
| Back-light | LED Side-light type |
| LCM IC | ST7703 |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |

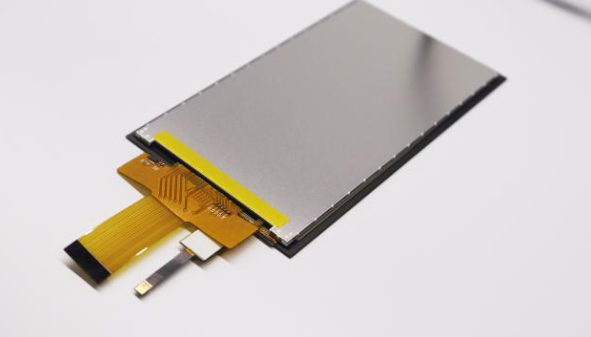

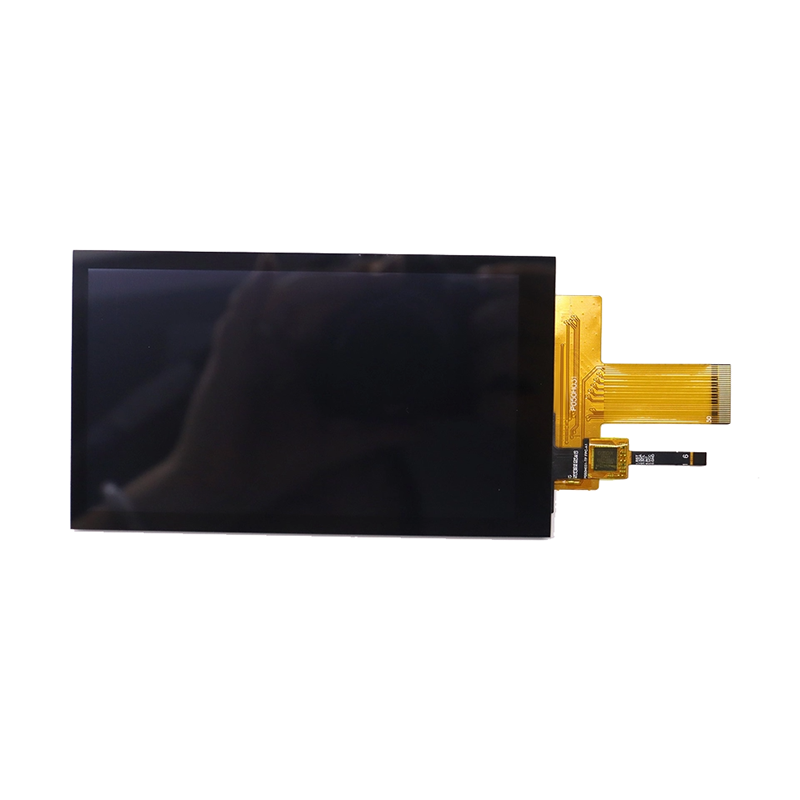

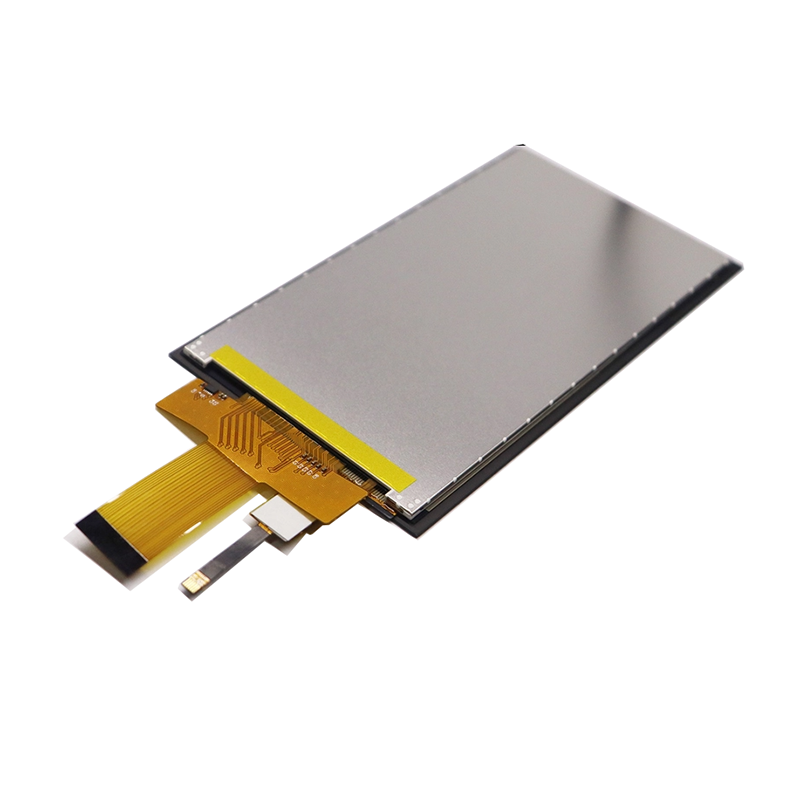

The P050H031-V2-IPS-CTP is a 5-inch TFT LCD display module designed for mid-to-high-end smart terminals. It uses IPS full-viewing-angle technology and features a built-in ST7703 display driver chip and GT911 capacitive touch IC. With a resolution of up to 720×1280 pixels (HD portrait), high pixel density, wide color gamut coverage, and a high-speed MIPI interface, it offers an excellent integrated display and touch interaction solution for smartphones, industrial tablets, in-car central controls, medical equipment, smart home gateways, and high-end consumer electronics.
The module's active display area measures 62.10mm in width and 110.40mm in height, with a pixel pitch as small as 0.0945mm × 0.0945mm. RGB vertical stripe pixel configuration can display 262K colors with a very good artistic effect. IPS full-viewing-angle technology guarantees that there will be no color distortion or brightness loss when viewed from different directions, thus completely excluding the grayscale inversion and chromatic aberration. Whether the user is watching from the top, bottom, left, or right, maps for navigation, medical images, and industrial data look equally clear and the colors are faithfully reproduced, which makes the device ideal for multi-person viewing or situations when the device is at different angles. The combination of Normally Black display mode and a high contrast ratio of 800:1 results in dark scenes that are deep and pure, bright areas that are well detailed, and images that are clear and multi-layered.
From Shenzhen to the world, Shenzhen YiTai Optoelectronics Co., Ltd. has been gradually expanding its market coverage. Not only are their products well-liked domestically but they are also being exported overseas to markets in Europe, America, and Southeast Asia, and thus the company has become a trusted display supplier for international clients. Since its inception in 2014, the company has been developing the market for 12 years, with a 20,000-square-meter facility, 20 production lines, and a monthly output capacity of 2.5 to 3 million units that are able to meet global supply. The 320-strong team includes 28 R&D staff, more than twenty proprietary technologies, ISO9001 certification, and qualification as a national high-tech enterprise, which together provide it with the ability to compete in the global market. The class-10,000 cleanroom and fully automated production lines guarantee export quality. Having more than a thousand TN/HTN/STN/VA-type products, several hundred TFT color screens, and bespoke LED backlight sources, the company specializes in small-size displays ranging from 0.96 to 7 inches. The products are subjected to tough environmental testing and have found great success in the medical, testing, smart home, and IoT terminal fields, and thus gaining a global reputation for high quality.
Development on a 2.8-inch minimalist clock display for a famous home brand with a very low-power IPS full lamination technology enabling clear display from extreme 180° wide viewing angles. We further enhanced the ultra-thin borderless design and soft light guide structure in bed-room usage situations to be in perfect harmony with contemporary home aesthetics. An intelligent light-sensing adjustment system is incorporated in the display, which can automatically change display modes with changes in daylight and at night time, it will switch to soft light mode so as not to disturb the person's sleep quality while still allowing the time to be easily read.
Development on a 3.5-inch industrial-grade intercom display for a famous communication equipment company with a very bright IPS fully laminated touch screen that complies with IP67 protection standards. We have enhanced the shock-resistant frame and anti-slip texture design to cater to the specific requirements of the industry to ensure that the equipment remains continuously functional even in the most aggressive environments. Incorporating intelligent light-sensing adjustment technology into the display allows it to automatically switch between day and night display modes based on ambient light, which greatly improves visibility and working efficiency during outdoor operations.
We tailor-made a 4.3-inch industrial-grade instrument display with high brightness and IP65 protection level for a famous power equipment manufacturer, utilizing high-contrast IPS full lamination technology. We have enhanced the dustproof and waterproof structure as well as the wide temperature design (-30°C to 70°C) for the unique requirements of the power industry, thereby ensuring uninterrupted functioning even in highly challenging environments such as substations. In addition, it adopts an adaptive brightness adjustment system that can automatically regulate the display based on ambient light, which greatly increases both data reading efficiency and operational safety while conducting outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
