What can we expect from this one? Before this question it is better to know some information about this Industrial Touch Screen. Screen size is 2.4 inch.
A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P024C015-V2 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 60*180 |
| Outline Dimension(mm) | 42.72*60.26*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 65K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bit/16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 37 |

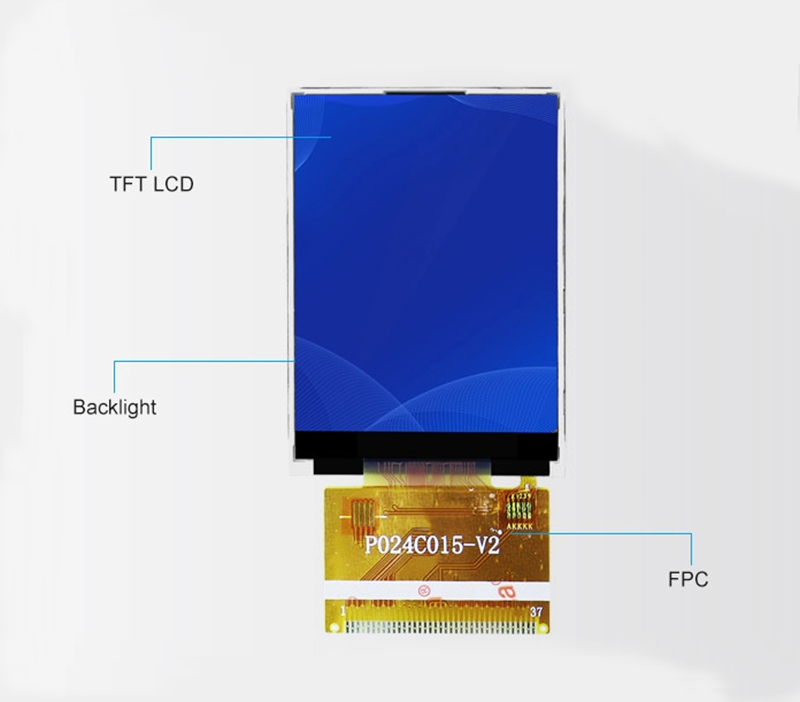

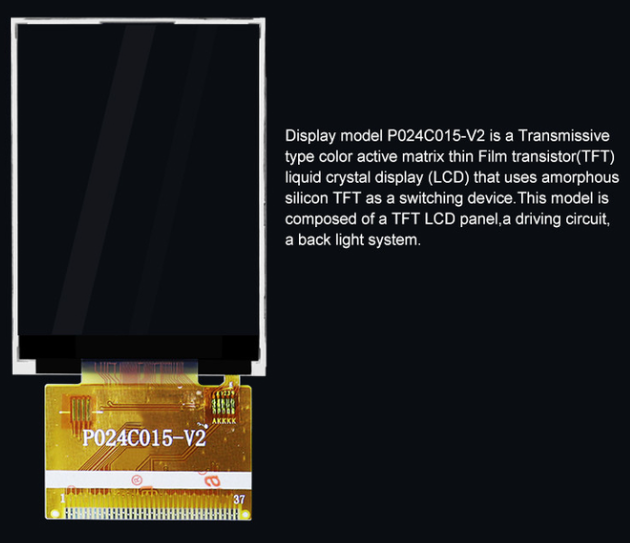

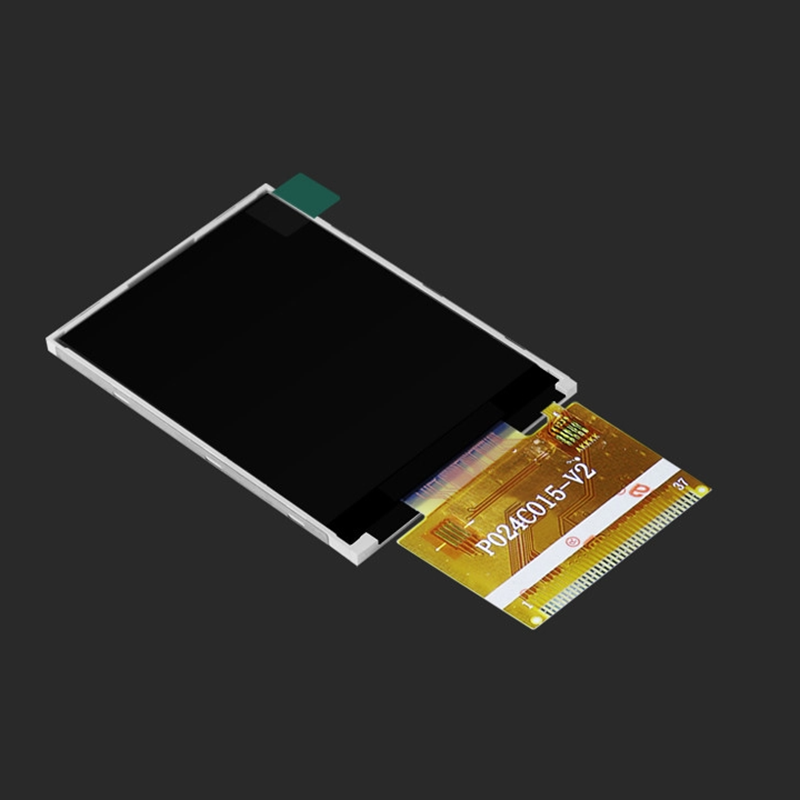

The P024C015-V2 is a 2.4-inch TFT LCD display module designed for industrial control and embedded terminals. It is equipped with an ILITEK ILI9341V driver chip capable of outputting high-performance graphics at a 240×320 QVGA resolution (portrait orientation). The efficient 8080 parallel bus architecture has been utilized alongside a strictly contrast-enhanced display with extended temperature suitability. It serves as a visually interactive core that is not only stable and reliable but also suitable for industrial human-machine interface (HMI) panels, portable instruments, data acquisition terminals, smart POS terminals, automation control systems, and other similar application areas.

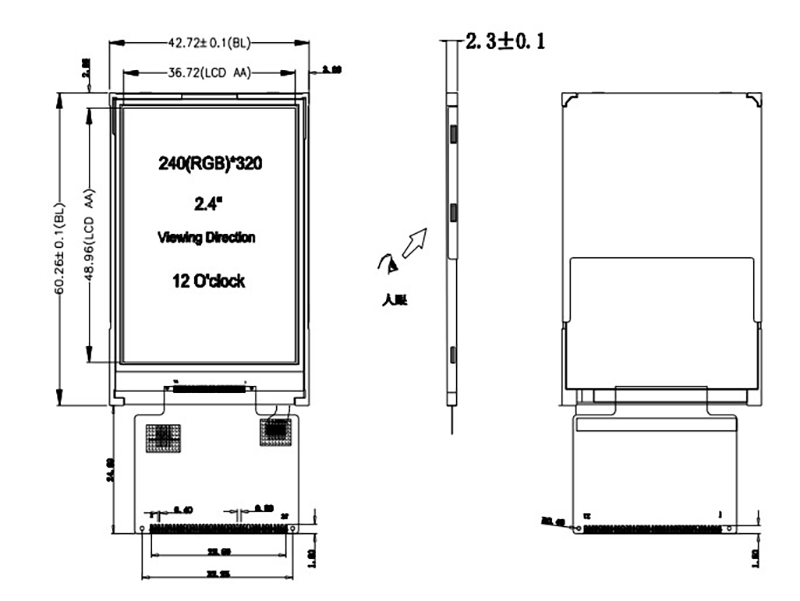

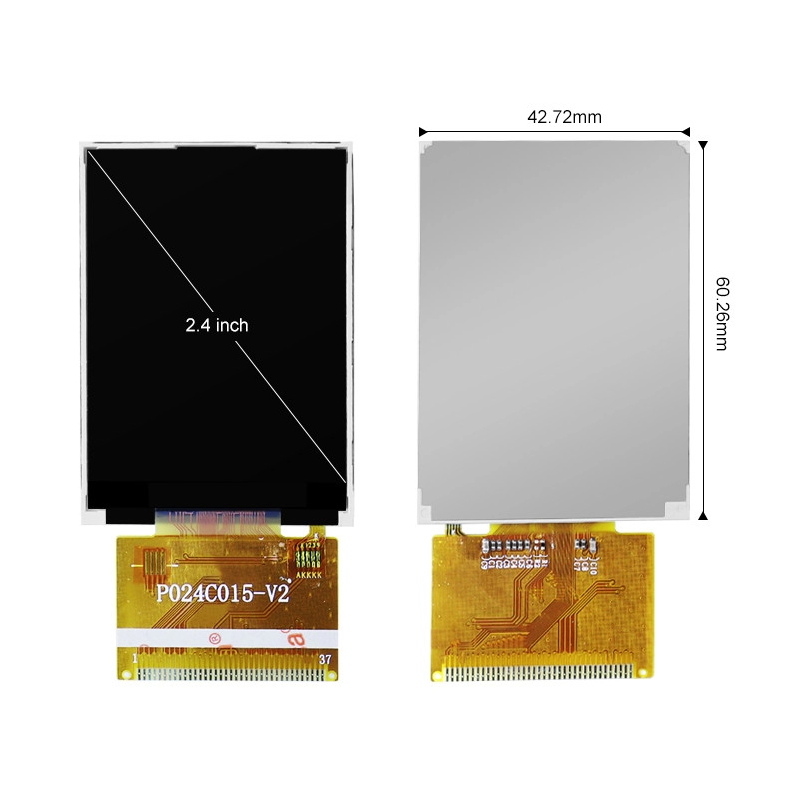

The physical size of the display module is 42.72mm × 60.26mm × 2.30mm, allowing it to fit in very tight spaces due to the slim and compact configuration. The FPC flex cable has excellent foldability that allows for the very convenient velocity of the flex cable within the industrial devices. The transmissive display structure is characterized by high light utilization, whereas backlight system efficiency combined with it momentously influences the design of an energy-optimized overall system. The module's environmental adaptability is on top of the scale, as it can operate at temperatures in the range of -20°C to 70°C and can be stored at temperatures in the range of -30°C to 80°C, this way ensuring that it keeps its stability and performance year round in even very challenging working condition of wide fluctuations in temperature and humidity, e.g., factory workshops, outdoor base stations, or field operations.
Industrial-grade reliability is the core feature of Shenzhen Yitai Optoelectronics Co., Ltd. products. Even before arriving at the customer, each display is tested through several cycles at high and low temperatures from -20°C to 70°C, mechanical vibration, and electromagnetic interference testing, etc. in order to ensure stable operation even under the harshest conditions. Established in 2014, the company with its independent factory covering an area of 20,000 square meters, has 20 production lines with a monthly output of 2.5 to 3 million units. The personnel of 320 include the R&D department of 28 members and the company boasts over 20 patented technologies, ISO9001 certification in addition to the national-level high-tech enterprise qualification. Cleanroom with 10,000-level purification and fully automated LCD manufacturing lines guarantee industrial-grade manufacturing accuracy. The company is currently offering tens of thousands of TN/HTN/STN/VA versions, hundreds of TFT color screens in the range of 0.96-inch to 7-inch, customizable LED backlights with a focus on the industrial and consumer markets. They have been successfully providing handheld testing instruments, portable medical devices, smart home panels, and IoT terminals, with products that have become known for their reliable performance and market presence.
We did the custom development of a 2.8-inch minimalist clock display for a well-known home brand. The low-power IPS full lamination technology was used, and the display was designed to support a clear view from wide viewing angles of 180°. Since the usage scenario focused on bedrooms, we carried out the optimization of the ultra-thin borderless design along with the soft light guide structure in such a way that they can perfectly match the modern home aesthetics. The screen has features for light-sensing intelligent adjustment that will enable the display to automatically change its modes according to daylight changes, and at night, it will automatically switch to a soft light mode to let the time be visible clearly without disturbing one’s sleep quality.
In cooperation with a famous communication equipment manufacturer, we manufactured a 3.5-inch industrial-grade intercom display as a personalized project. The product uses a high-brightness IPS fully laminated touch screen and complies with IP67 protection requirements. Besides, we had to come up with a shock-resistant frame and anti-slip texture in the design of the item to match the industry's special demands. Our product will still function reliably even in very harsh environment conditions. The screen also incorporates advanced intelligent light-sensing adjustment technology allowing it to automatically switch between day and night display modes according to the ambient light. As a result, outdoor work becomes much easier due to clearly visible display and efficient operation.
Working closely with a famous manufacturer of power equipment, we tailored a 4.3-inch industrial-grade instrument display to their specifications. In the development of the product, we relied on high-contrast IPS full lamination technology while also ensuring the product meets the requirements for IP65 protection. Subsequently, we revisited the dustproof and waterproof features and also the very wide temperature range of the design (-30°C to 70°C) for the special requirements set by the power industry. Thus, the product will be able to keep its stability even when encountering very complicated environment conditions of power substations, etc. The display has been equipped with an automatic brightness control system that can constantly assess the effect of light on the display thereby automatically optimizing it. As a result, people reading the data and carrying out external inspections will have much-improved efficiency and safety.
