| P/N | P024H029-IPS |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 350 |
| Interface | MCU 8//16 BIT RGB 16/18BIT |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The Interface of this LCD is MCU 8//16 BIT RGB 16/18BIT. We can also customize other types of interfaces and FPCs for you.
ST7789V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

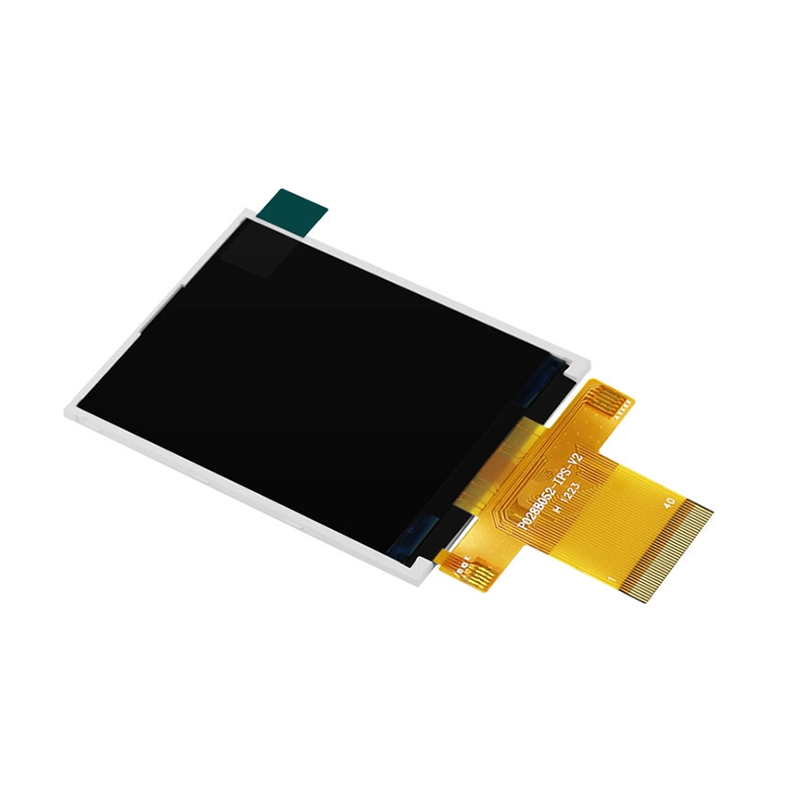

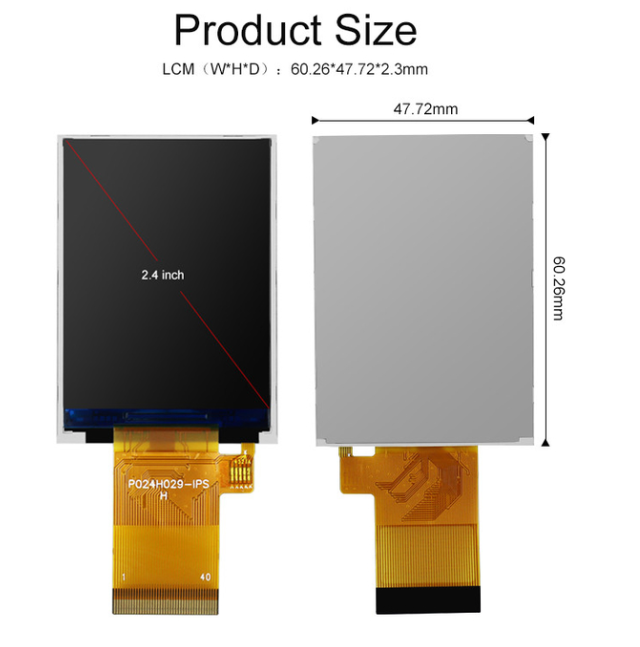

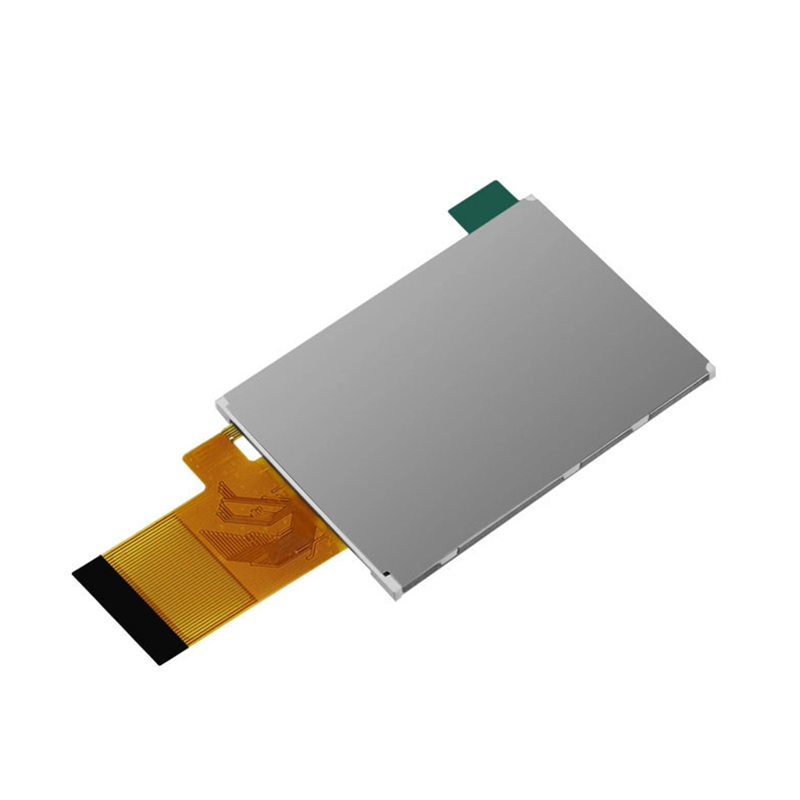

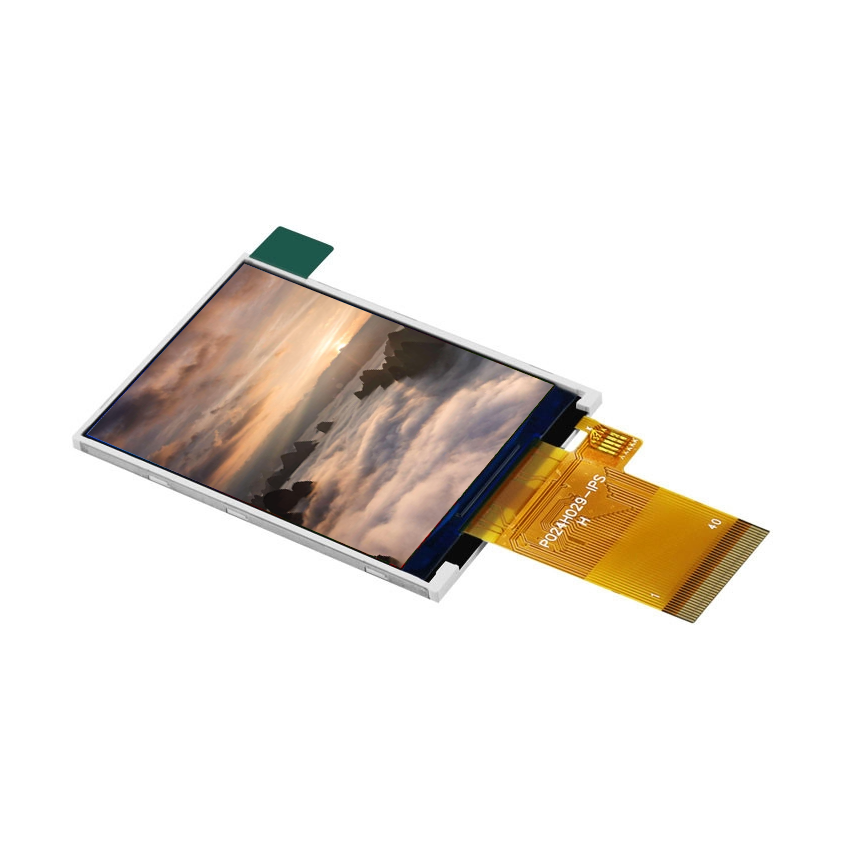

The P024H029-IPS is a 2.4-inch IPS full-view TFT panel designed for commercial and industrial scenarios, with a resolution of 240×320, presenting QVGA-level fine image quality within a 36.72×48.96mm display area. With a high brightness of 350 nits, it far exceeds the standard of ordinary indoor screens. Combined with the IPS technology's inherent high contrast characteristics, even when placed under direct mall spotlight at a checkout counter, under warehouse high-bay lights at a barcode scanner, or in sunlight for outdoor delivery terminals, the interface information remains clearly layered and easy to read.
With the full-view (ALL) IPS technology, viewing angle blind spots are entirely eliminated—which means that even if customers are viewing the checkout screen from the side, colleagues looking at handheld devices, or workers operating the panel are at different angles, the image color and brightness will remain the same, with no grayscale reversal or color distortion. This feature makes the screen "readable from any angle," which is a major upgrade to the user experience in scenarios where multiple people interact.
For example, equipment utilizing the technology includes commercial POS terminals, industrial handheld PDAs, smart POS machines, portable medical devices, IoT control panels, and security monitoring equipment. Offering multiple LED backlight customization services for sizes between 0.96 inches to 7 inches, TaiGuang Optoelectronics supports thorough customization of interface types, FPC cable forms, and brightness levels, so clients can have unique commercial terminals.
Dependable delivery capability is the main promise of Shenzhen EITAI Optoelectronics Co., Ltd. Since its inception in 2014, it has not only reached 20 production lines but also a monthly output of 2.5 - 3 million pieces that together constitute a comprehensive delivery system that entirely satisfies customers' demands for large-volume orders. In a facility of 20,000 square meters, 320 employees use their time most effectively, while 28 R&D team members provide technical help. The company has acquired more than 20 patents, ISO9001 certification, and is regarded as a national high-tech enterprise. A class-10,000 cleanroom together with fully automated production lines contribute to delivery quality. Besides the thousands-type TN/HTN/STN/VA products and numerous TFT color screens offered, LED backlights can also be customized. Centering on the 0.96-inch to 7-inch market, the company has been around for twelve years, and its products consistently go through extremely strict testing. They are pretty much known for their usage in handheld testing, portable medical devices, smart homes, and the Internet of Things, and are mainly exported to Europe, America, and Southeast Asia.
After receiving a request for a 3.5-inch customized industrial-grade intercom display, we developed one with a high-brightness IPS fully laminated touch screen and that met the IP67 protection level requirements. Along with the industry’s special needs, we adjusted the shock-resistant frame and anti-slip texture design per the requirements, thus ensuring reliable operation even under harsh environmental conditions. Equipped with intelligent light-sensing adjustment technology, the screen can change between day and night modes depending on the ambient light, which greatly increases the visibility and efficiency of the user during outdoor activities.
We custom-created the 5-inch medical-grade touch display for a famous medical device manufacturer, employing a high-res IPS fully laminated panel with Class B EMC compliance. In line with medical ergonomics, we chose antibacterial bezels and a glare-free surface to guarantee the patients’ environment does not affect the performance of the medical personnel. Equipped with an ambient light intelligent adjustment system, the screen can optimize display parameters based on the scenario, thereby reducing visual tiredness among medical personnel and facilitating quicker diagnosis and treatment.
We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
