| P/N | N096-1608TBBIG11-H13 |
| Size(inch) | 0.96 |
| Resolution | 80*160 |
| Active Area(mm) | 10.8*21.7 |
| Pixel pitch(um) | 135*135.6 |
| Outline Dimension(mm) | 13.5*27.95*1.5 |
| Pixel arrangement | RGB Vtertical stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness(cd/m²) | 400 |
| Contrast Ratio | 600 : 1 |
| Interface | 4 Line SPI |
| Back-light | 1 White LED |
| Driver Ic | ST7735S |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 13 |
Supported by 4 Line SPI , this type of TFT LCD can be used in many applications. The ST7735S driver IC provides on-chip storage and power system.
The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

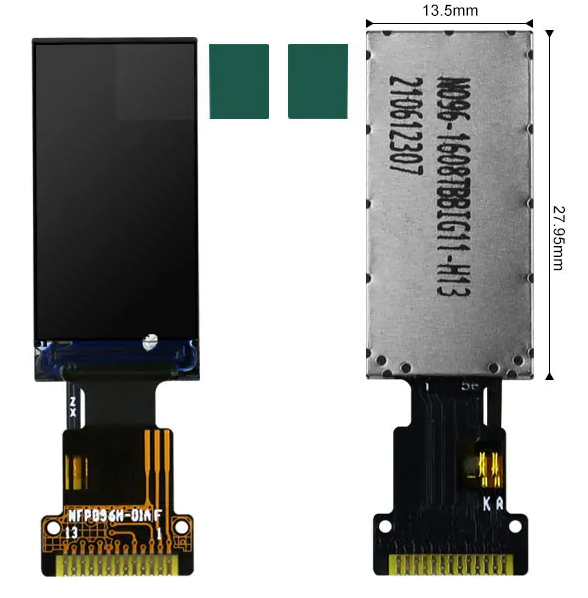

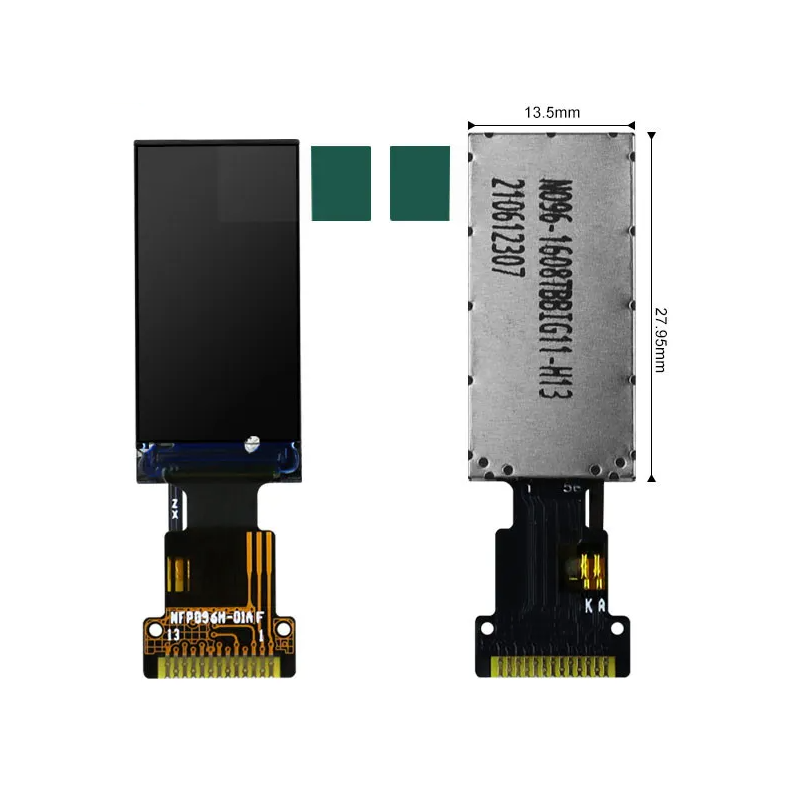

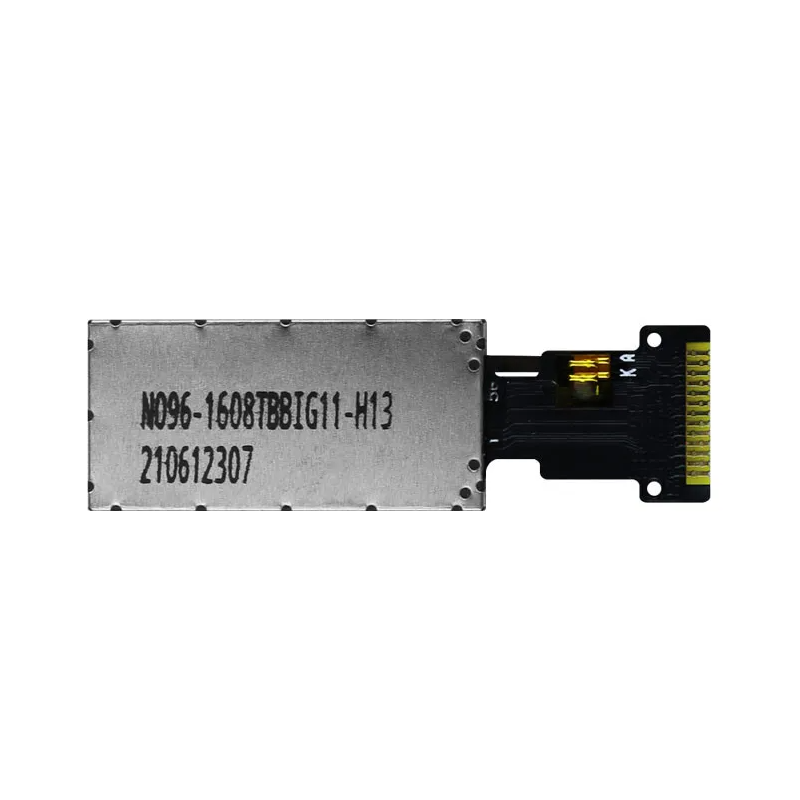

This 0.96-inch TFT LCD display module, model N096-1608TBBIG11-H13, is based on the ST7735S driver chip and has a 4-wire SPI serial interface. It is an ultra-miniature display device suitable for ultra-small embedded systems. The module has a resolution of 80×160 pixels, with an active display area of only 10.8mm × 21.7mm. Pixels are arranged in RGB vertical stripes with a pitch of 135 × 135.6 microns, providing a clear and usable display within a space of less than 1 inch. It is widely used in smart wristbands, health monitoring rings, micro remote controls, portable detectors, and IoT micro nodes, as well as other wearable and covert devices with extremely demanding space requirements.
Display screens are the interface connecting the digital world. Shenzhen Yitai Optoelectronics Co., Ltd. has focused on manufacturing this connection for twelve years. Since its founding in 2014, the company's screens have connected people with data, devices with the cloud, and reality with intelligence. With a 20,000 m2 building and 20 production lines, the monthly capacity can reach 2.5 to 3 million pieces. A team of 320, including 28 R&D personnel, works on these connecting media on fully automated LCD production lines in class-10,000 cleanrooms. ISO9001 certification guarantees the quality of connections, 20+ patented technologies help optimize the connection experience, and recognition as a national high-tech enterprise confirms the connection value. Besides offering over a thousand TN/HTN/STN/VA products, more than a hundred TFT color displays, and customizable LED backlights, the company is mainly engaged in small-size connections of 0.96 inches to 7 inches. To ensure the reliability of their connections, each interface is subjected to high-low temperature, vibration, and anti-interference tests. These connections can be found in handheld testers, portable medical instruments, smart home panels, and IoT terminals. Starting from Shenzhen, the connections have reached Europe, America, and Southeast Asia.
We designed a custom 4.3-inch industrial-grade display for a famous power equipment manufacturer. The display uses high-contrast IPS full lamination technology and complies with the IP65 protection level requirements. Besides that, we improved the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for the power industry needs so the power equipment can work reliably even in complex environments such as substations.
The screen brings together an adaptive brightness control system that is able to adjust display effects automatically according to the ambient light, which in turn to a great extent improves data reading efficiency and operational safety during outdoor inspections.
Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.
With a high-resolution IPS fully laminated pane, a 5-inch medical-grade touch display was custom-developed for a leading medical device manufacturer, meeting EM Class B requirements. To align with medical ergonomics requirements, which are very strict, we designed antibacterial bezels and anti-glare surface to be used in operating rooms and other complex environments, where the equipment needs to be running. The display has an intelligent ambient light adjustment system embedded in it which is capable of automatically adapting the screen parameters in conformity with the usage scenario so that the medical staff's eyes remain comfortable and their efficiency in diagnosis and treatment is enhanced.
