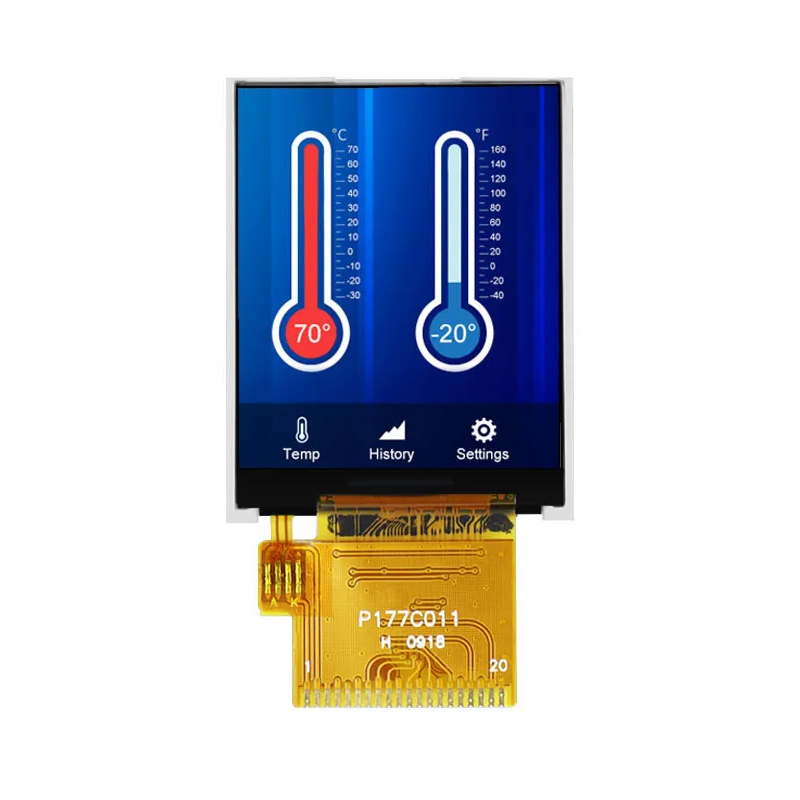

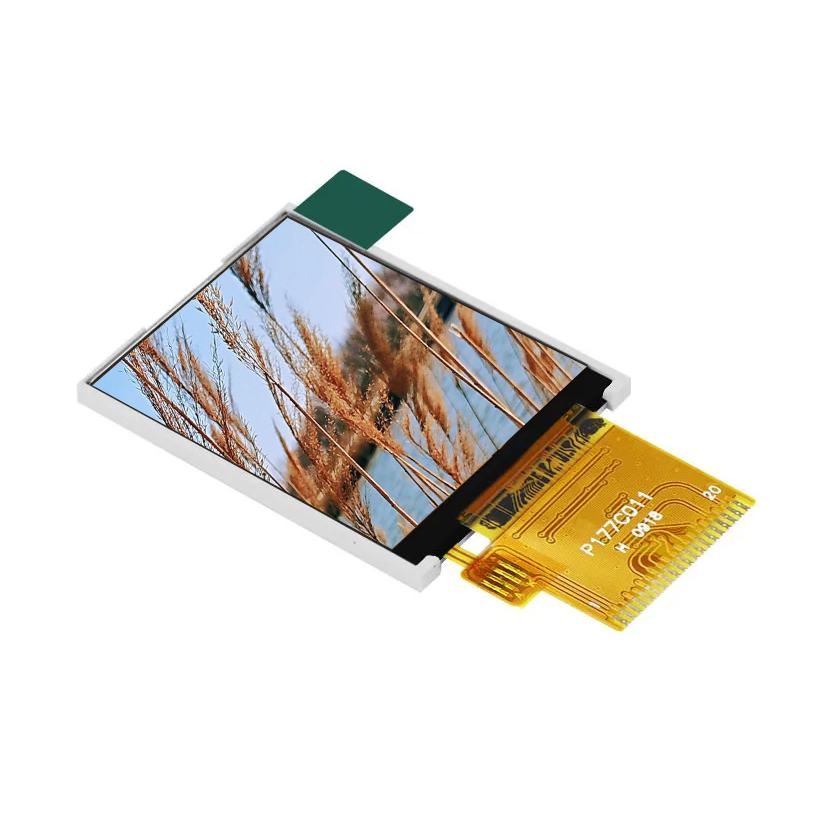

| P/N | P177C011 |
| Size(inch) | 1.77 |
| Resolution | 128*160 |
| Active Area(mm) | 28.03*35.04 |
| Pixel pitch(um) | 73*219 |
| Outline Dimension(mm) | 34.00*43.70*2.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 300:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| Driver Ic | ST7262 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 40 |
This is a highly integrated display solution for ultra-compact smart terminals and embedded devices, featuring a 1.77-inch small-sized panel. It is driven by a core ST7262 chip and consists of a 40-pin standard interface plus a 24-bit RGB parallel bus for high-speed data transmission.
It is an overall massive breakthrough in the display performance, color reproduction, and refresh efficiency made in such extremely limited size.
Benefits of Full-View Display and Normally Black Mode
The use of full-view technology in all four directions by the module means that whole-directional color shift as well as brightness decay of traditional TN panels are completely eliminated. Users will get color performance that does not change with the angle as well as a stable contrast from any viewing angle. The mode of displaying is Normally Black which when used in pair with a contrast ratio of 300:1 gives a very deep and pure black background along with very sharp and distinctly outlined text and icons. Thus this mode is very suitable for dark-themed UIs, status display interfaces, and reading of information at night when it is dark.
RGB True Color and Optical Specifications

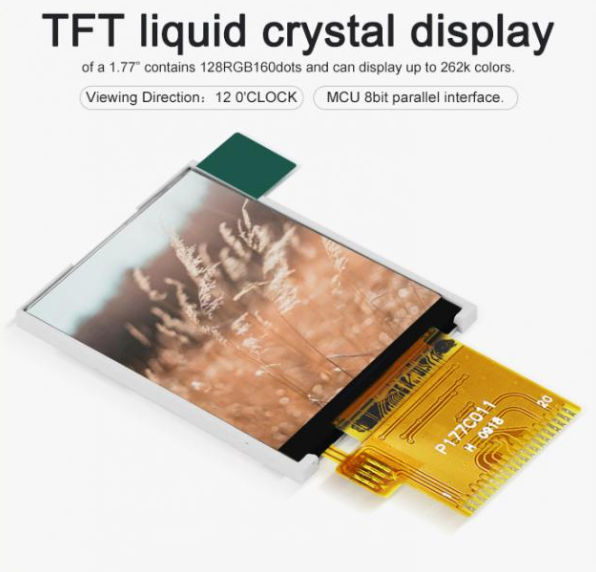

The horizontal dimension of the display area is 28.03mm and the vertical one is 35.04mm. Pixels with an RGB arrangement in a vertical stripe pattern make up the display with a physical resolution of 128RGB × 160. Pixel pitch is at 73μm (horizontal) × 219μm (vertical) which means that despite the display being only 1.77-inch fine rendering of graphics and text is possible. The maximum number of colors that can be displayed at the same time is 262K so the coloring is natural and the transitions are very smooth. Brightness under nominal conditions is 300 cd/m² which allows for comfortable viewing of the display both indoors and in some semi-outdoor environments. The 30 ms response time makes the display suitable to static or low-refresh UI application scenarios.
Displays represent the digital extension of human touch. Shenzhen YiTai Optoelectronics Co., Ltd. was founded in 2014 and they do not simply produce screens, they craft tactile interfaces for human perception of the digital world.
With a manufacturing area of 20,000 square meters, 20 production lines, and a monthly output of 2.5 to 3 million units, the 320-person team, of which 28 are R&D personnel, creates tactile extensions via fully automated LCD production lines in a ten-thousand-level cleanroom. Quality of extension is guaranteed by ISO9001 certification, extension capabilities are enhanced by over 20 patented technologies, and national high-tech enterprise qualification is acknowledgment of the value of these extensions.
The company is mainly focused on small-sized tactile extensions ranging from 0.96 inches to 7 inches with more than a thousand TN/HTN/STN/VA products, hundreds of TFT color displays, and customized LED backlights. Stability of products in handheld testing devices, portable medical equipment, smart home panels, and IoT terminals is ensured by testing at different temperature levels, vibration, and anti-interference. Tactile extensions are initiated in Shenzhen and delivered to end-users in Europe, America, and Southeast Asia.
We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer.
The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
For the client, we created a 3.5-inch in-car HD dashboard display based on high-contrast IPS full lamination technology that guarantees the screen will remain perfectly clear and easily readable even if exposed to direct strong sunlight. In accordance with automotive-grade stipulations, we have worked on the ultra-narrow bezel and curved design that correspond perfectly to the style of the cockpit interior. The screen is accompanied by a smart ambient light sensing adjustment module that is capable of automatically changing brightness and color temperature in accordance with the surrounding light, which results in a considerable improvement in the safety of driving and the comfort of vision.
