Small LCD 2.8'' 240x320 Industrial IPS Color Screen Full View 2.8 inch Parallel Port TFT LCD Display

Product Description

TFT Display Description:

This‍‌‍‍‌ is a 2.8-inch TFT LCD display equipped with IPS technology, that makes it possible to have clear and precise visuals.

Its small size and functional versatility make it suitable for different applications, from consumer electronics to industrial equipment.

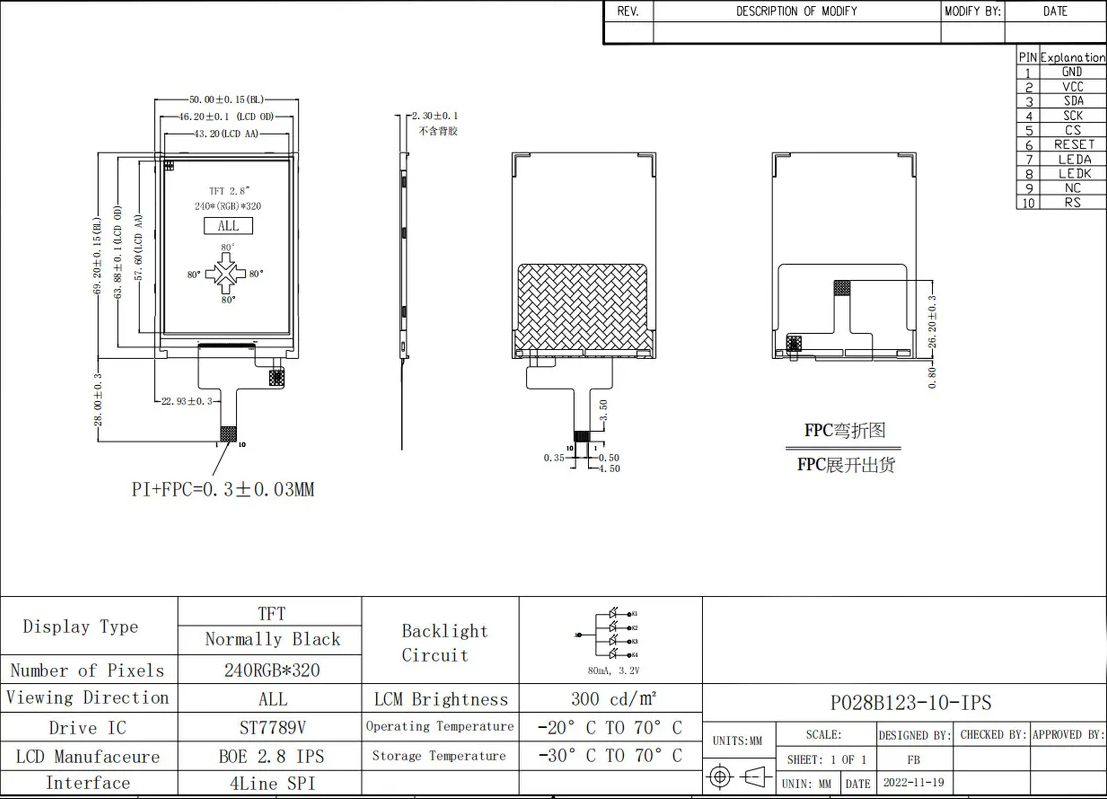

Parameter:

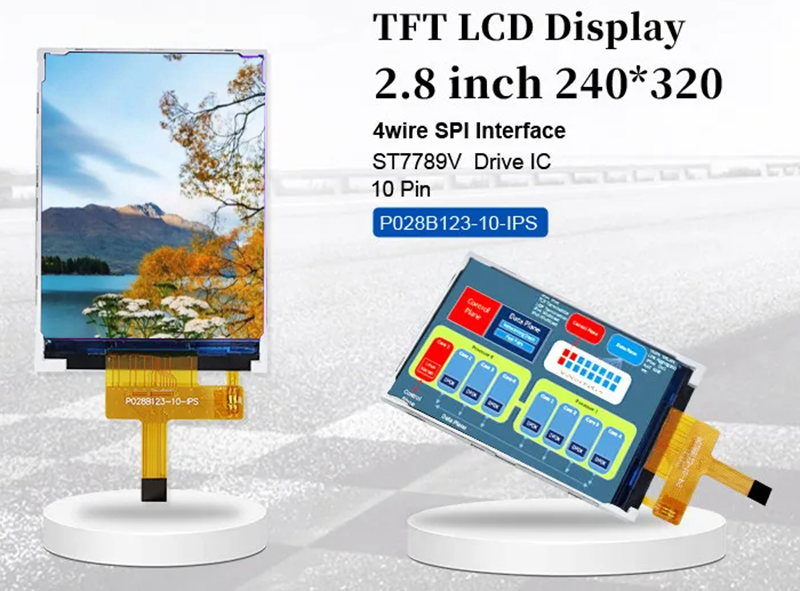

This is a compact LCD module optimized for embedded development and industrial control scenarios. It uses a BOE original 2.8-inch IPS panel and is driven by the ST7789V chip. With a 10-pin streamlined interface and 4-wire SPI serial connection, it achieves efficient communication, striking an optimal balance among display performance, hardware compatibility, and mass production cost in a compact form factor.

Full-View IPS Display Technology

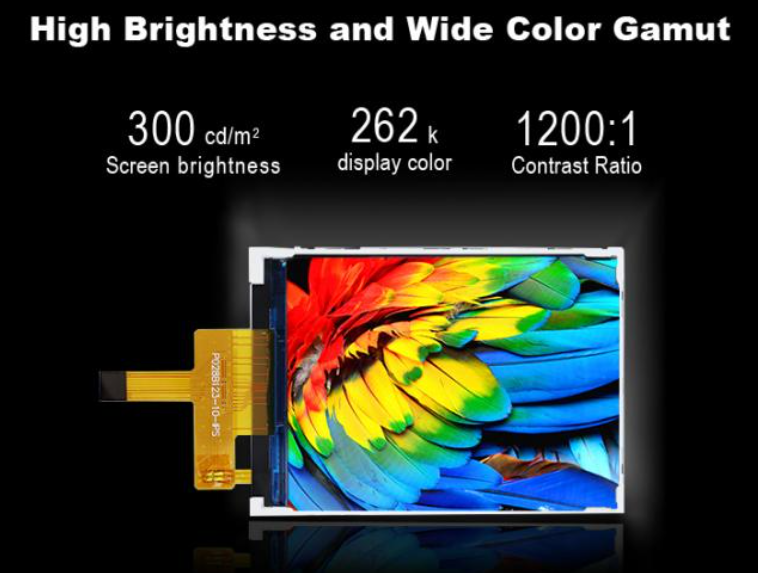

The module adopts IPS wide-angle technology, achieving full-view coverage in all directions (80° up, down, left, and right), completely eliminating the issue of severe color shift and whitening when viewed at angles typical of traditional TN panels. The display mode is Normally Black, combined with an ultra-high contrast ratio of 1200:1, providing deep and pure dark scenes, with sharp and clear text edges. The color depth allows for 262K different colors, enabling smooth and natural color gradations that ..., thus industrial HMI interfaces, data charts, and simple graphics are accurately rendered. The standard brightness level of 300 nits ensures a comfortable level of visual performance under regular indoor and semi-outdoor illumination conditions.

Factory Showcase

At Shenzhen Yitai Optoelectronics Co., Ltd., quality is not a mere slogan but a promise made. Each product before getting dispatched from the factory has to pass through stringent tests like high and low-temperature cycles, mechanical vibration, and electromagnetic interference resistance ‍‌‍‍‌etc. This has been a twelve-year-long consistent quality ritual. Since its establishment in 2014, the 20,000-square-meter base has 20 production lines with a monthly output of 2.5 to 3 million pieces. The 320-person team includes 28 R&D staff, who faithfully perform the quality ritual in a class 10,000 cleanroom. The mid-to-high-end fully automated LCD production line is the altar of the ritual, ISO9001 certification is the scripture of the ritual, more than 20 patented technologies are the innovations of the ritual, and the national high-tech enterprise qualification is the coronation of the ritual. With over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlight sources, the company focuses on small sizes ranging from 0.96 to 7 inches. The quality ritual endows products with a sacred mission in handheld testing instruments, portable medical devices, smart home panels, and IoT terminals, and the results of the ritual spread from China to Europe, the Americas, and Southeast Asia.

Typical Custom Case



Charging stations

We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.

Alarm clocks

Customizing a 2.8-Inch Minimalist Clock Display Using Low-Power IPS Full Lamination Technology and Wide 180° Viewing Angle Support for a Well-Known Home Brand.

Taking into account the bedroom usage scenarios, we perfected the ultra-thin, borderless design, and the soft light guide structure to not only suit the appearance of modern homes aesthetically but also fulfill the functionality needs. Smart light-sensing adjustment system is built into the screen that can automatically switch display modes as per changes in daylight and at night automatically shift to soft light mode, thus making it possible for the time to be vividly seen without disturbing the sleep quality.

Vehicle dashboards

We customized a 3.5-inch high-definition display for the client’s automotive dashboard. By using high-contrast IPS full lamination technology, the display remains clearly visible even when exposed to bright sunlight. Following automotive-grade requirements, we made the ultra-narrow bezel and curved design so as to be a perfect match for the interior of the cockpit.

The screen has built-in an intelligent light-sensing adjustment system capable of automatically moderating the brightness and color temperature according to ambient light, thus significantly improving driving safety and visual comfort.

FAQ

1. Can you customize the products?

Yes, we can customize products for content, size with customer's requirements.

2. Can we use our own logo or design?

Yes, you can. You can contact us for the details.

3. Who do I contact if I have a problem?

You can email to us, we will provide quality after-sales service

4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?

MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.

5. How do you pack your product?

We adopt standard export package, cartons or boxes, also can pack it by your requirement.

6. What's your method of payment?

We accept payment by L/C, Western Union, T/T, PayPal etc

7.What shipping methods do you support?

We support sea freight, air freight, international express, railway transportation and special line logistics
