Parameter:
| Model | P020H017-IPS |
| Screen Size | 2.0 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 30.60(H)x40.80(V)mm |
| Pixel pitch | 0.0425(H)x0.1275(V)mm |

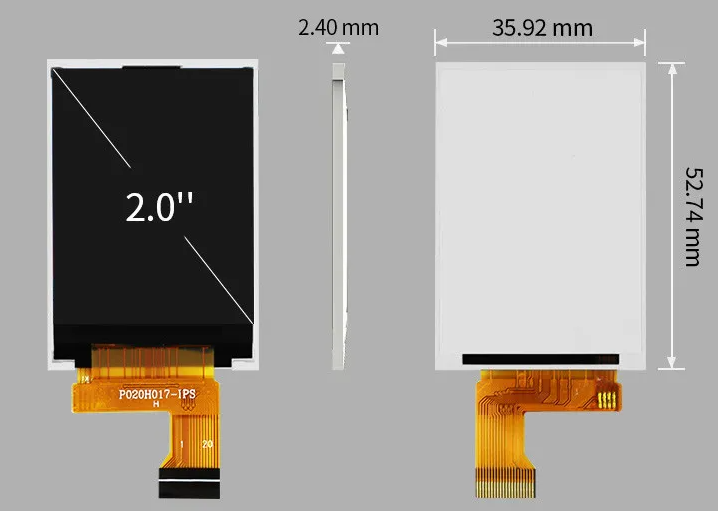

| Outline Dimension | 35.92x52.74x2.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Pins | 20 Pins |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 800:1 |
| Interface | MCU 8BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Display type 2 inch TFT LCD is a flexible technology that provides a high level of detail, spot-on colors, energy-saving, and a small form factor. That's why it's one of the most preferred options for portable gadgets like digital cameras, media players, and game consoles.
Specifications:
Resolution: A typical 2.0 inch TFT LCD offers 320x240 pixels resolution.Therefore, it is very suitable for presenting clear images and legible texts.
Color depth: It can render 262,144 colors that produce true-to-life colored images and videos.
Power consumption is low: The TFT LCD technology in 2.0 inch display is characterized by low energy consumption, which is crucial for battery-operated devices.
View angle is large: One of the leading characteristics of 2.0 inch TFT LCD is a wide viewing angle; it means that even if you view the screen from different sides, you will see it clearly without any distortions or changes in colors.
Small size: 2.0 inch TFT LCD is a tiny display screen, which makes it perfectly handy for digital cameras, portable media players, gaming devices, and other handheld gadgets.
Backlight: In order to make things more visible, especially in dark conditions, 2.0 inch TFT LCD usually comes with a backlight feature that turns it into a versatile display for almost any lighting situation.
Touchscreen: Some 2.0 inch TFT LCD panels feature touchscreen functionality, enabling users to communicate with the device through finger movements and gestures.

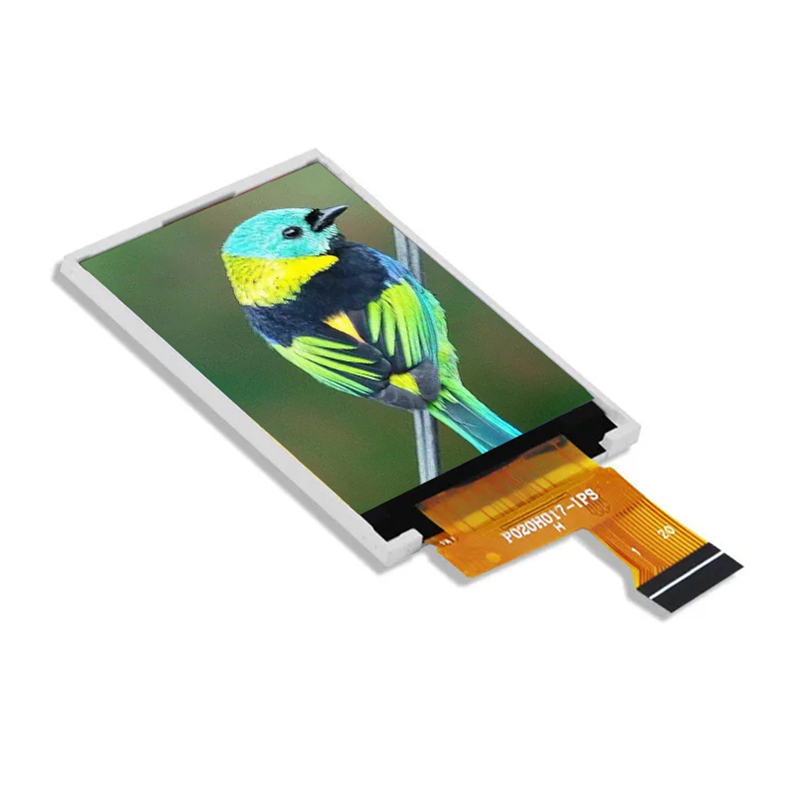

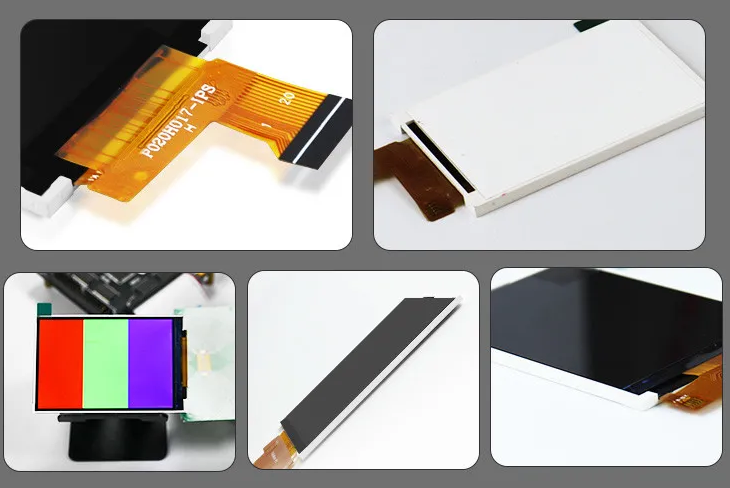

The driver chip in use is the ST7789V, a well tested solution in the small-size TFT field, having wide compatibility and development resources. Combined with an MCU 8-bit parallel interface, the data throughput is both efficient and stable. The main control MCU, by means of the 8-bit data bus and control signals, can perform a full range of control functionalities. This design has a moderate number of pins, thus enabling a good balance between performance and resource consumption. The module comes with a 20-pin FPC flexible flat cable routed from the bottom. It is a unique bending design. The FPC has been clearly marked with the P020H017-IPS model and H batch code. The pin numbers 1-20 are labeled at the end. The gold finger area is flat and smooth.
Often the quietest protectors of the product are display screens of Shenzhen Yitai Optoelectronics Co. Ltd. The screens have, since the start of the company in 2014, been the means of ensuring data integrity in handheld testers, protecting the measurement of vital signs in portable medical devices, creating comfort at home in smart home panels and enabling very efficient transmission of information in IoT terminals. They are made in fully automated LCD production lines in Class 10,000 cleanrooms with an area of 20,000 square meters, 20 production lines running and 2.5 to 3 million pieces per month output. Their 320-strong workforce includes 28 R&D staff members. Their guardianship is confirmed by ISO9001 certification for standardization, more than 20 patented technologies for improved protection capabilities and national high-tech enterprise qualifications. With well over a thousand TN/HTN/STN/VA products, and hundreds of TFT color screens along with custom LED backlight sources, their main point of attention is 0.96-inch - 7-inch. Each of their silent guardians makes its way from Shenzhen to Europe, America and Southeast Asia after undergoing tests for high and low temperature, vibration and anti-interference.
We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.
For the client, we created a 3.5-inch in-car HD dashboard display based on high-contrast IPS full lamination technology that guarantees the screen will remain perfectly clear and easily readable even if exposed to direct strong sunlight. In accordance with automotive-grade stipulations, we have worked on the ultra-narrow bezel and curved design that correspond perfectly to the style of the cockpit interior. The screen is accompanied by a smart ambient light sensing adjustment module that is capable of automatically changing brightness and color temperature in accordance with the surrounding light, which results in a considerable improvement in the safety of driving and the comfort of vision.
Customized development of a 3.5-inch high-precision temperature control display for a well-known HVAC brand, featuring full-view IPS full lamination, support for multi-touch, ultra-thin rounded corner bezel suitable for modern interior design, ambient light sensor for intelligent adjustment of brightness and contrast, low-power and energy-saving design, smooth operation, and comfortable visual experience, greatly enhancing user experience and energy efficiency. We can provide custom development of small display products suitable for your needs.
