| P/N | P035C013-RTP |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness(cd/m²) | 450 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9488 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The Interface of this LCD is 8080 MCU 16bit. We can also customize other types of interfaces and FPCs for you. ILI9488 is the driver IC of the tft lcd.
THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

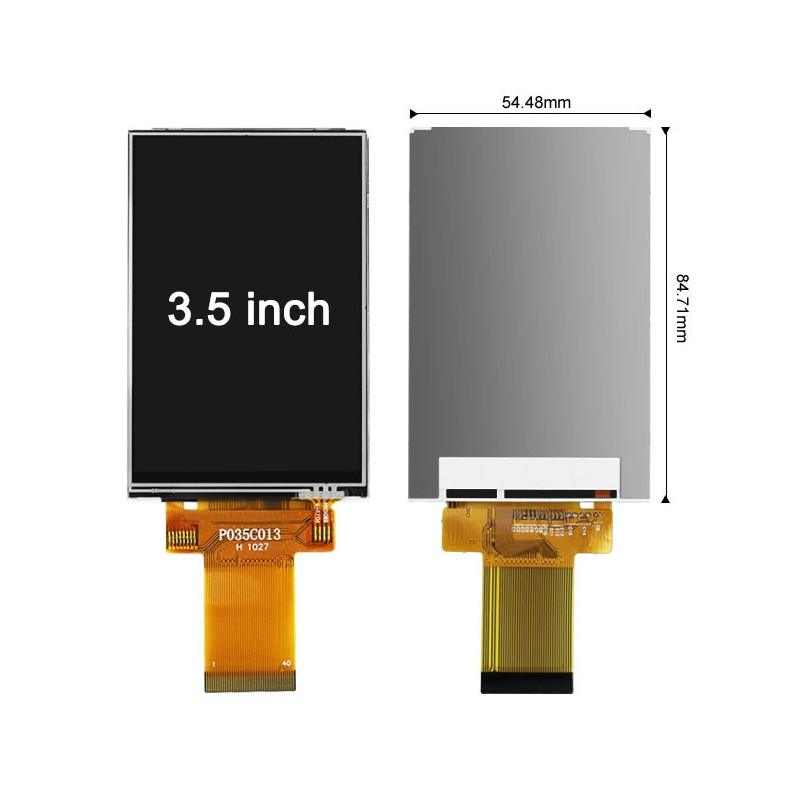

The 3.5-inch TFT LCD display P035C013-RTP employing the ILI9488 driver chip at its heart is first and foremost conceived as an embedded development board extension solution. It is ideal as an LCD Shield for Arduino and STM32, two of the major development platforms, provides users plug and play, and drastically cuts down the time needed to validate the prototype. The module adopts an 8080 MCU 16-bit parallel bus interface, thus not only being able to transmit an ample amount of data but also being a fully efficient channel for commands. Coupling this with the internal Frame RAM (GRAM) memory management of ILI9488, their combined graphics processing smoothness and quick refresh response are the result.
The physical size of the display is 3.5 inches, and the display area is brought out on a 320×480 pixels mat with the vertical orientation of the device itself being primarily sought after for handheld usage and also for terminal UI aimed at portrait mode. To sum up the layout of the content: text is spaced in a very economical and just right way, icons and buttons occupy suitable sizes, and one single screen is enough for presenting a great deal of interactive elements. Being able to produce a maximum brightness of 450 cd/m², the module attains a very bright level as the norm between the 3.5-inch ones in its class. There is no need to keep searching for shaded areas or lot the angles in order to read in bright laboratory or workshop settings the data and menu items are quite easily and plainly discernible.
Shenzhen YiTai Optoelectronics Co., Ltd. has forged a value network connecting multiple parties to the mutual benefit of each and every one. It has in fact developed a value co-creation network with the top-tier suppliers, the end customers in the downstream, and those of parallel solutions to the extent of the actual product mixing the nodes. The network's major nodes are the company's 20,000-square-meter factory, 20 independent production lines, and a monthly capacity of 2.5 to 3 million units. They have built and maintained network relationships through a team of 320 employees including 28 R&D (research and development) personnel and based on 12 years of network operations they have developed trust. ISO9001 certification has been added as a way to standardize network collaboration, over 20 patented technologies have been contributed by network members to the innovation of it, and on top of all, they have been recognized as a national high-tech enterprise to raise the level of the network. A class-10,000 cleanroom and fully automated production lines are the facilities available to ensure reliable network delivery. The company keeping to small-sized displays ranging from 0.96 inches to 7 inches has over a thousand TN/HTN/STN/VA products, more than a hundred types of TFT color screens, and offer customized LED backlights. Their products have been tested in-depth and have been used in a wide range of medical, inspection, smart home applications and the Internet of Things, with the value network also supporting products to be exported overseas selling well in China, Europe, America, and Southeast Asia.
Customized development of a 4.3-inch high-brightness IPS full-lamination charging pile screen for a well-known new energy brand, with IP65 protection, wide temperature operation from -30°C to 69°C, anti-glare design. The screen integrates an intelligent light-sensing adjustment system that can automatically optimize display brightness according to day and night light variations, greatly enhancing user operation experience, providing clear outdoor display all day, specially customized for the new energy brand.
Developed a customized 2.8-inch minimalist clock display for a top domestic brand, combining low-power IPS full lamination technology as well as supporting clear display from 180° wide viewing angles. Based on the bedroom uses, we carried out design of borderless an ultra-thin together with a soft light guide structure that matches modern home aesthetics. The screen comes with an intelligent light-sensing adjustment capable of automatically changing display modes according to daylight, and at the same time change to soft light mode at night, which makes time clearly visible without interrupting sleep.
The screened device is a 3.5-inch high-precision temperature control display that has been developed specifically for the HVAC brand well-known in the market as its third-party vendor. The display had the full-view IPS full lamination technology and multi-touch operation features. We were able to achieve the ultra-thin bezel and rounded corner design that was completely in line with home decoration styles, top-notch necessarily for the port the home environment. As a result of the smart ambient light sensor built-in feature, the display can regulate ambient light, adjusting the display brightness and contrast at the same time, thereby significantly improving the user operation experience and energy efficiency level.
