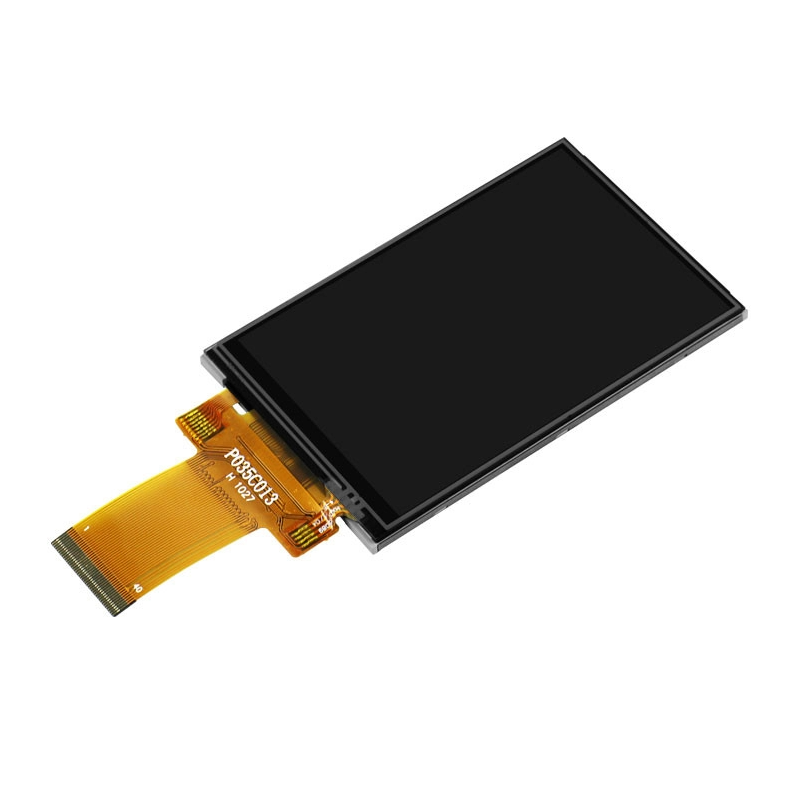

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 3.5 inch then our lcd is just what you need. Improve your product design by adding our 320 * 480 resolution product. QC department measured the luminance is 450 nits under normal operating.
| P/N | P035C013-RTP |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness(cd/m²) | 450 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9488 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

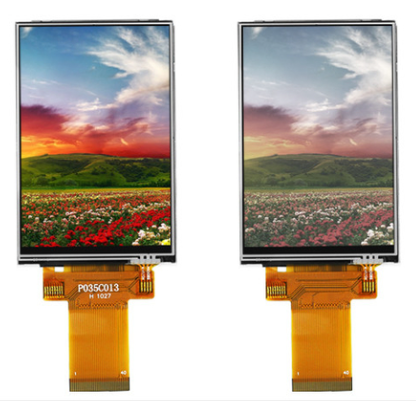

Right from the idea phase, our engineering team collaborates closely with you to thoroughly understand the application's scenarios along with the functional requirements.P035C013-RTP is a 3.5-inch TFT LCD display made mainly for industrial control and it can also be used in harsh environments. The display uses an ILITEK ILI9488 driver that is highly integrated and capable of high performance. Additionally, it has the resolution of 320×480 pixels (HVGA portrait), and offers 450 nit ultra-high brightness, an 8080 MCU parallel interface, and resistive touch integration. It is a bright, reliable visual interaction solution that can be used for industrial temperature control instruments, portable testing devices, outdoor data acquisition terminals, vehicle navigation, and outdoor equipment that needs to function in extreme environments.

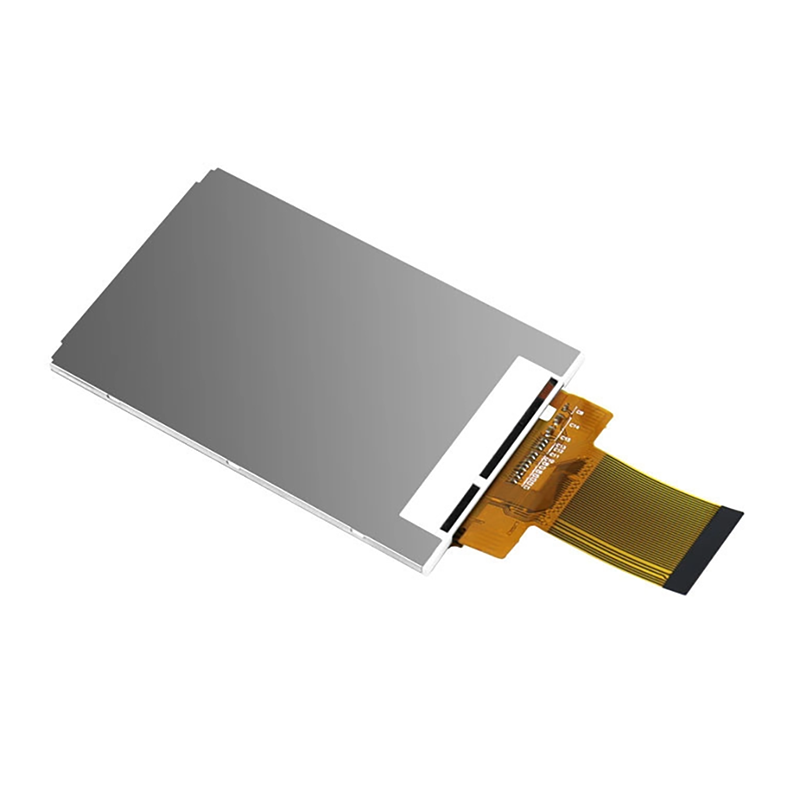

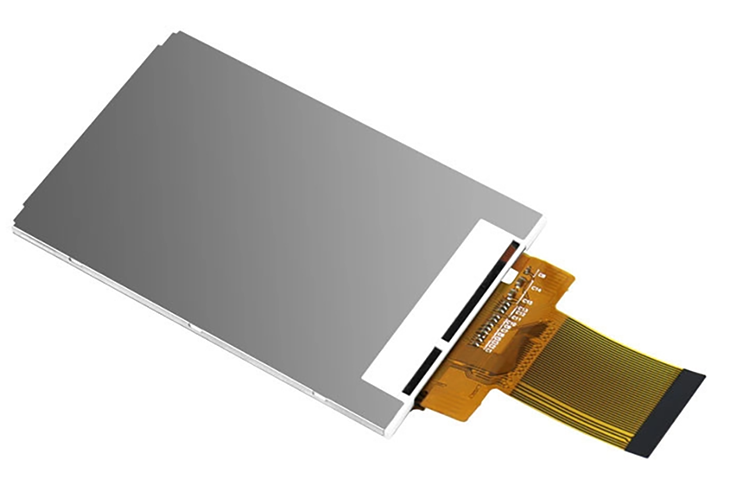

This module has a very small size. The FPC flex cable that it uses is of excellent bending performance, allowing the LCD display module to be arranged easily in various types of industrial equipment with limited space. The single integrated backlight drive and display control design are greatly conducive to the overall power management and PCB layout. Due to the outstanding environmental adaptability, the product can operate in the temperature range from -20°C to 70°C, and at industrial sites with varying temperatures and humidity, in vehicles, and under very harsh outdoor conditions, it can run steadily and continuously without any problems.
Shenzhen Yitai Optoelectronics Co., Ltd. has a well-structured risk control system that guarantees the company's stable operations. They've set up arrangements like dual-source supplier backups, safety stocks of critical materials, and line production redundancies. Their 20 production lines making 2.5 to 3 million units per month mean that even if one production line is down, delivery will still go on smoothly. Located on a 20,000-square-meter site, since being founded in 2014, the company with its 320-strong workforce including 28 R&D staff who are responsible for recognizing risks and working on risk management, has been operating without any serious accidents for 12 years. ISO9001 certification that they have includes risk management, while more than 20 patented technologies help to minimize technical risks, together with the national-level high-tech enterprise qualification. A class 10,000 cleanroom and fully automated production lines are used for environmental risk control. Offering over a thousand TN/HTN/STN/VA products and hundreds of TFT color screens and LED backlight customizations, the company mainly focuses on the 0.96-inch to 7-inch market. The products are subjected to thorough testing and are being used in the medical, inspection, smart home, and IoT terminals sectors. Risk control is the cornerstone for ensuring continuous supply both locally and globally.
In strategy partnership with the well-established communication equipment manufacturer, we designed the customized development of 3.5-inch industrial-grade intercom display by employing a high-brightness IPS fully laminated touch screen that fulfilled the IP67 protection requirements. In order to properly cater to the special needs of the industry, we redesigned the shock-resistant frame and the anti-slip texture to ensure the device producing a steady performance even in the most demanding environments. Besides, the screen is equipped with the intelligent light-sensing adjustment feature which allows the display to switch automatically from day to night modes depending on the surrounding light, thus providing better visibility and work efficiency during outdoor activities.

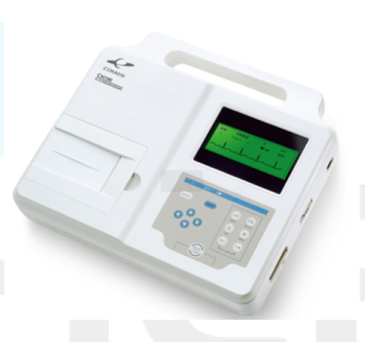

Using a high-resolution IPS fully laminated panel, we custom-designed a 5-inch medical-grade touch screen display for a well-known medical device manufacturer, which also meets the Class B electromagnetic compatibility standards.Our team fully conforms to medical ergonomics standards and has developed antibacterial bezels and an anti-glare design that are not only effective but also easy to clean and disinfect, thereby ensuring stable operation in the complex environments like operating rooms.An ambient light intelligent adjustment system built into the display automatically adapts the medical staff's visual comfort by changing display parameters according to the usage scenario, thus reducing eye tiredness and facilitating a higher level of diagnostic and treatment efficiency.
We customized a 4-inch financial-grade encrypted display for international banks by using a military-grade IPS full lamination touchscreen that is compliant with PCIDSS payment security standards.In the financial industry where security is of paramount importance, we developed a unique anti-peeping design and a tamper-proof frame to ensure data security in ATMs and other self-service terminals.The screen is equipped with an intelligent ambient light adaptation system that can automatically adjust itself to the best display state depending on the lighting conditions of the branch, which helps raise customer satisfaction and transaction.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
