New published LCD Touch Panel for commercial and industrial use. Screen size is 2.8 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 320 resolution product. 260 nits allow this lcd to work well indoors.
| P/N | P028C110-RTP |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |

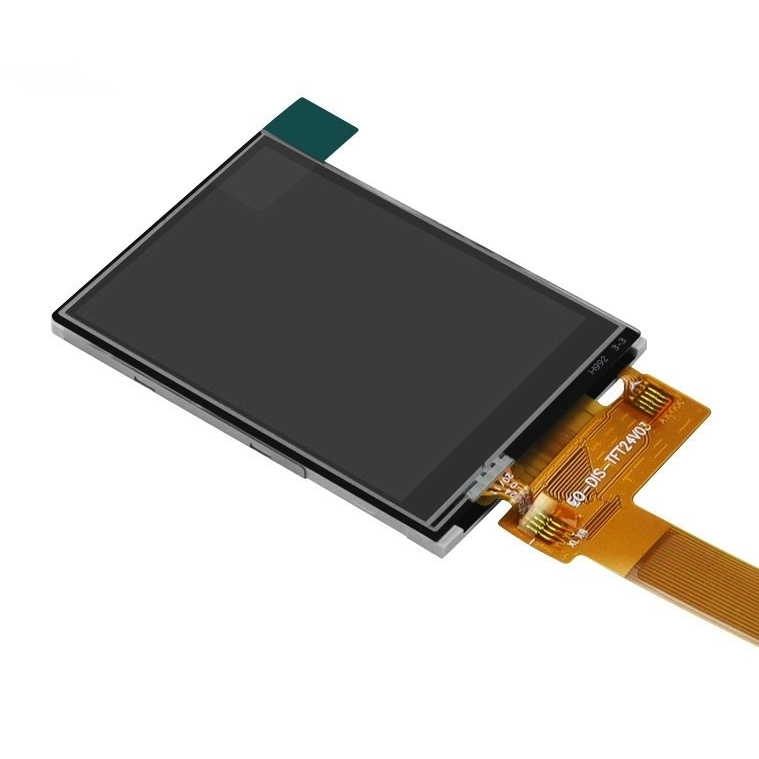

P028C110-RTP is a 2.8-inch TFT LCD display module designed for severe industrial surroundings. It comes out with a powerful ST7789V driver chip and a resolution of 240×320 pixels (QVGA portrait). Its ultra-simplified 4-wire SPI serial interface, built-in capacitive touch, and wide-temperature properties make it a sturdy and trustworthy visual communication tool for industrial temperature control instruments, portable testing equipment, outdoor data acquisition terminals, vehicle navigation systems, and other devices operating in extreme environments.

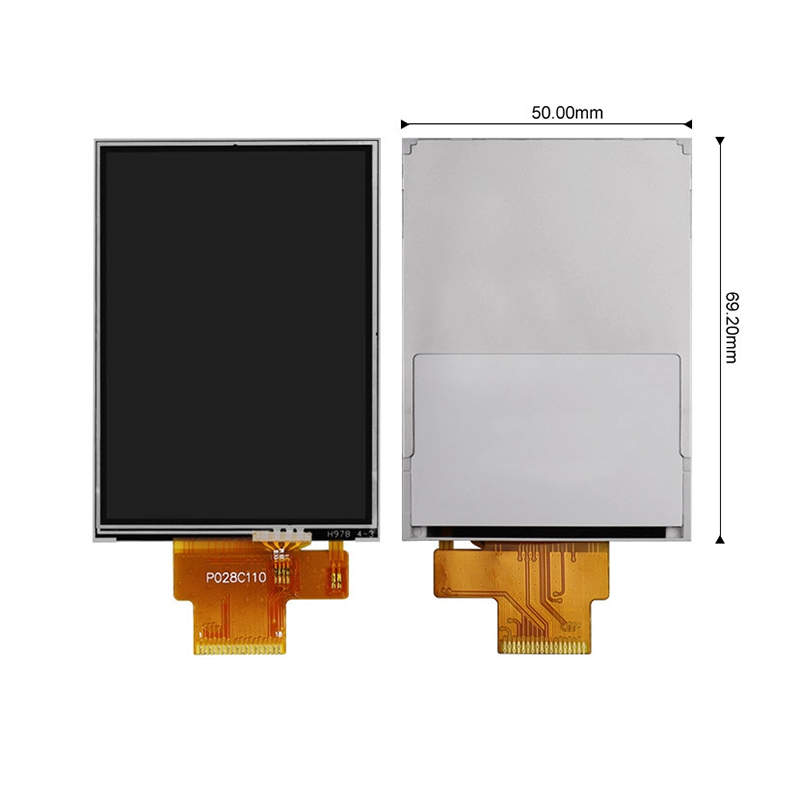

The module's size is 50.00mm × 69.20mm, its small structure, and excellent FPC flexing performance allow it to be flexibly accommodated inside various space-constrained industrial devices. Environmental adaptability is the main feature with a working temperature range of -20°C to 70°C, making it possible to run continuously from furnace workshops to freezing polar environments. Its assurance of reliability "Trusted under extreme temperature" has been tested extensively. The storage temperature is -30°C to 80°C, so it can be seasonally modulated and to extreme temperature variations with alternate highs and lows.

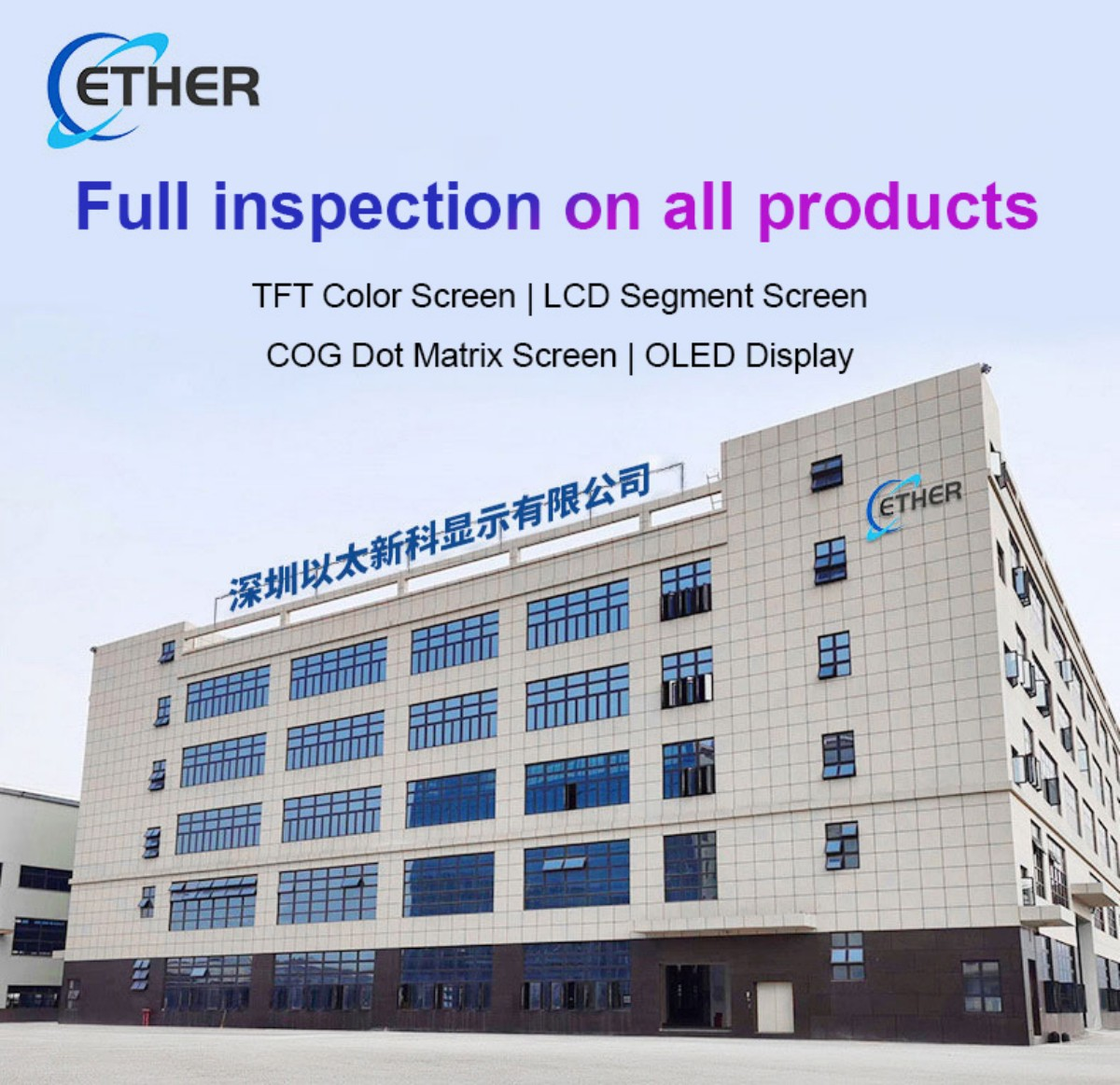

Green manufacturing idea is one of the guiding principles behind Shenzhen Yitai Optoelectronics Co., Ltd. The air purification system of the Class 10,000 cleanroom that is not only made to secure product quality but also reflects the environmental investment; LED backlight customization services encourage low-power solutions; 20 production lines are geared towards energy consumption, and the monthly output of 2.5 to 3 million units is partly responsible for the industry's leadership in green cost efficiency. The company established in 2014, with a team of 320 people, including 28 R&D persons investigating green display technologies, has more than 20 patented technologies featuring environmental innovations. ISO9001 certified, a nationally recognized high-tech enterprise, the 20,000-square-meter base practices green operations. With over a thousand TN/HTN/STN/VA products and hundreds of TFT color screens, the company main focus is on the 0.96-inch to 7-inch market. Products are subject to stringent environmental testing and enjoy a wide user base in the medical, inspection, smart home, and IoT terminals, with green manufacturing capable of underpinning strong domestic and foreign sales.
We customized a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer. The display employs a high-brightness IPS fully laminated touch screen and complies with IP67 protection requirements. We also redesigned the shock-resistant frame and the anti-slip texture to fit the needs of the industry, thus allowing the device to function reliably even in harsh environments. In addition, the display includes a smart light-sensing adjustment feature that can automatically detect the ambient light and switch between day and night display modes, thereby substantially improving the visibility and the efficiency of outdoor operations.
We customized a 4.3-inch charging pile interactive display for a well-known new energy brand by utilizing high-brightness IPS full lamination technology and satisfying the protection level of IP65. To provide a clear display under different weather conditions, we specially improved the anti-glare design and wide temperature operation performance (-30°C~70°C) for the complicated outdoor environment. Also, the display supports an intelligent light-sensing adjustment mechanism that can automatically change the display brightness according to the variations of environment light, which significantly improves the user experience of the operation.
We designed a 4-inch financial-grade encrypted display for international banks, featuring a military-grade IPS full lamination touchscreen and compliant with PCIDSS payment security standards. In order to fulfill the stringent security requirements of the financial sector, we specially created an anti-peeping structure and a tamper-proof frame. These features guarantee the security of data on self-service terminals such as ATMs. The device also contains a smart ambient light adaptation system that can automatically choose the finest display setting based on the lighting conditions of the branch. As a result, this greatly enhances customers' operation experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
