Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 2.8 Inch IPS Panel 240*320 TFT LCD Touch Screen Dsplay Module 20 cm * 30 cm * 40 cm | Delivery Time | 30days |
Payment Terms | T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram |
|
|
Our 2.8 inch TFT LCD panel features a high-quality IPS display that is readable under direct sunlight. It's perfect for both commercial and industrial applications. The panel measures 2.8 inches diagonally and provides a 240 by 320 resolution. It offers excellent image quality with 300-nit brightness, which laboratory test shows is normal level. The LCD interface is of the type 8080 MCU 16bit. Besides, we can tailor different kinds of interfaces and FPCs for you, if you wish. The ILI9341V driver IC features built-in storage and power management. This series supports wide working temperature range options with one of them being -20°C to 70°C, which means it can nicely fit your requirements if your product will be exposed to such temperature extremes.
Parameter:

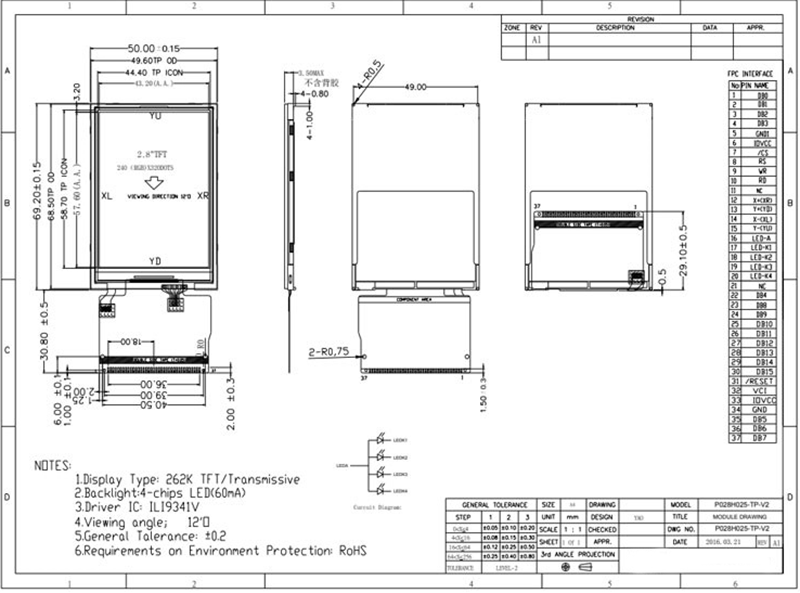

| Model | P028H025-V2-RTP |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.06(H)x0.18(V)mm |
| Pins | 37 pins |

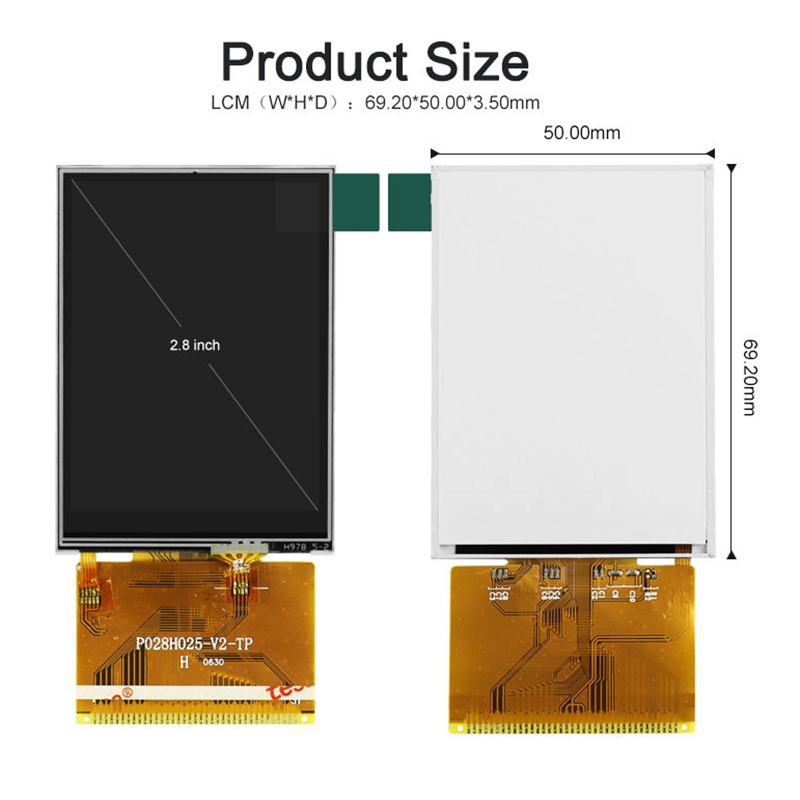

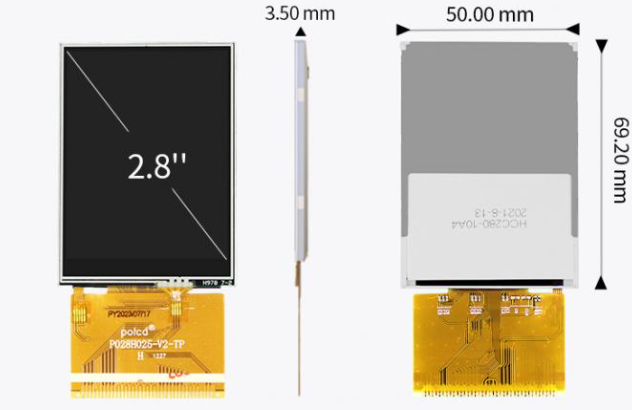

| Outline Dimension | 50.00x69.20x3.50mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 500:1 |
| Interface | MCU 16bit |
| Back-light | LED Side-light type |
| Drive IC | ILI9341V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The P028H025-V2-R TP is a 2.8 inch TFT LCD display module, that uses an IPS full-viewing-angle panel, technology and has a sunlight readable feature . With a resolution of 240RGB×320 pixels and a display area of 43.20mm×57.60mm, the module provides a visual feauture. The pixels have a vertical RGB stripes layout, and therefore displaying 262K colors is easily obtainable. Combined with a contrast ratio of 500:1 and a brightness of 260 nits, the images are so vivid with distinct layers and full of colors.

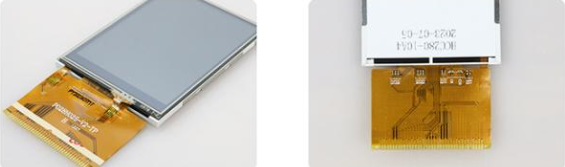

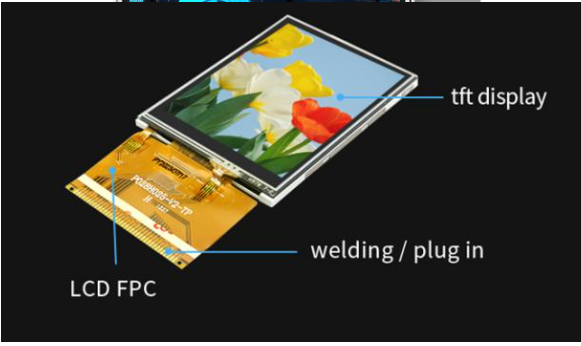

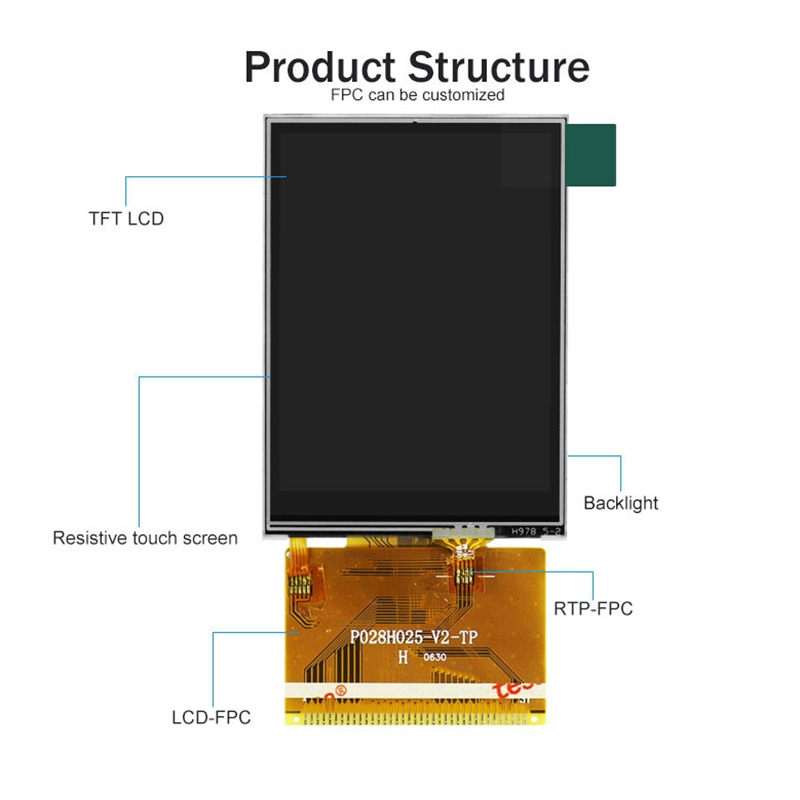

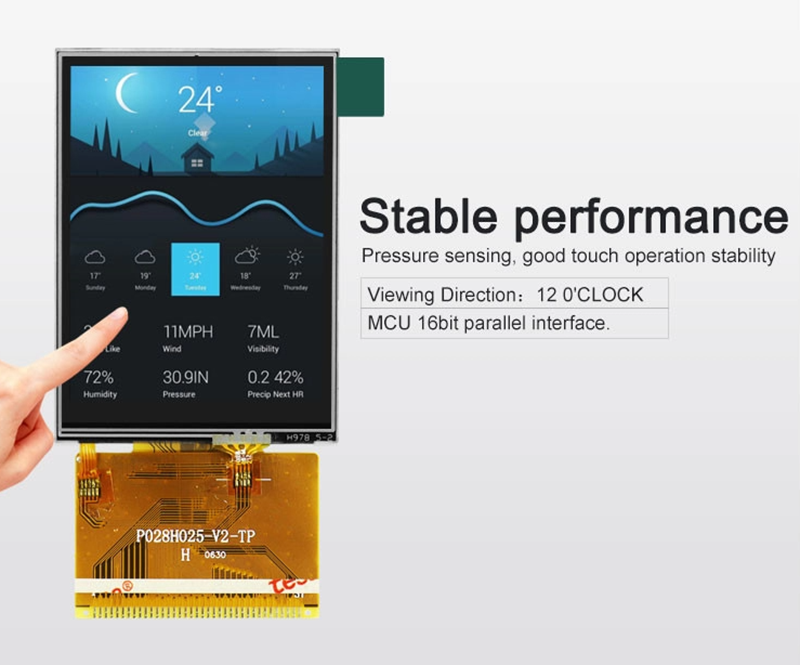

It is capable of supporting pressure-sensitive operations as it comes with the built-in resistive touch screen. The touch screen is sensitive, stable, and can be used for precise industrial control, handheld, and medical applications. There are 37 pins to connect this module, which has a dual flexible circuit board design consisting of LCD-FPC and RTP-FPC. According to customer requirements, FPC can be customized, making it easy for soldering or plug-in installation.
Not bigger than a stamp, the product has a compact yet sturdy structure. It weighs just a few ounces and is totally portable, which can make you happy. The operating temperature range of the module is -20℃ to 70℃, while the storage temperature range is -30 ℃ to 80℃, which is a pretty wide range capable of withstanding different environments and demonstrating the module’s strongly environmental adaptability.
Data-driven decision-making is a feature of management practice in Shenzhen Yitai Optoelectronics Co., Ltd. To meet demand and improve quality, just as to cater customer preferences and to direct R&D, the company relies on data to tell its story. Its 20 production lines generate 2.5 to 3 million panels per month, resulting in huge process data; on the other hand, the 320-person team, including 28 R&D staff, reads data, and data accumulated over 12 years guides to understand the patterns. The company established back in 2014 occupies 20,000 square meters and is equipped with data capturing systems. ISO9001-certified standardized data management, plus over 20 patented technologies including data innovations, give the company the qualification of a national high-tech enterprise. Class 10,000 cleanroom and completely automated production lines supply on-line data. Generally, with more than a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and LED backlight customizations, the company primarily targets the 0.96-inch to 7-inch market. The rigorous testing of the products, the wide range of medical, inspection, smart home, and IoT terminals application, and data-driven optimization together ensure strong sales both at home and overseas.
We made a customized, 4.3-inch charging pile interactive screen for a famous new energy brand, adopting high-brightness IPS full lamination technology, and the product complied with IP65 protection level requirements. To make the product more anti-glare and it can work at a wide temperature range (-30°C~70°C) in outdoor environments, we specially optimized it so that even under different weather conditions displays the contents clearly. There is a light sensor in the screen which allows adjusting the brightness automatically depending on changes in light levels during day and night, this greatly improves the user operation experience.
We developed for a known home brand 2.8-inch minimalist clock display, using low-power IPS full lamination technology while the clock face itself clearly visible at any of the 180° wide viewing angles. Given the bedroom environment, we not only enhanced the ultra-thin borderless design but also developed a soft light guide structure - both of which are ideal for modern home decor. The screen is equipped with an intelligent light sensor that can automatically transition between display modes depending on daylight changes and will also switch to soft light mode at night, enabling an easily readable time without disruption to sleep.
Designed a 3.5-inch high-resolution instrument cluster display with very high contrast IPS full lamination technology to support operational visibility under bright sunlight for the customer. As per the automative-grade standards, the super slim bezel and curved features are improved to harmonize with the cockpit interior style to perfection. With the integration of an intelligent light sensor system, the adjustments of brightness and color temperature to the current light level can be managed without the driver's intervention, making driving safety and comfort much better.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
