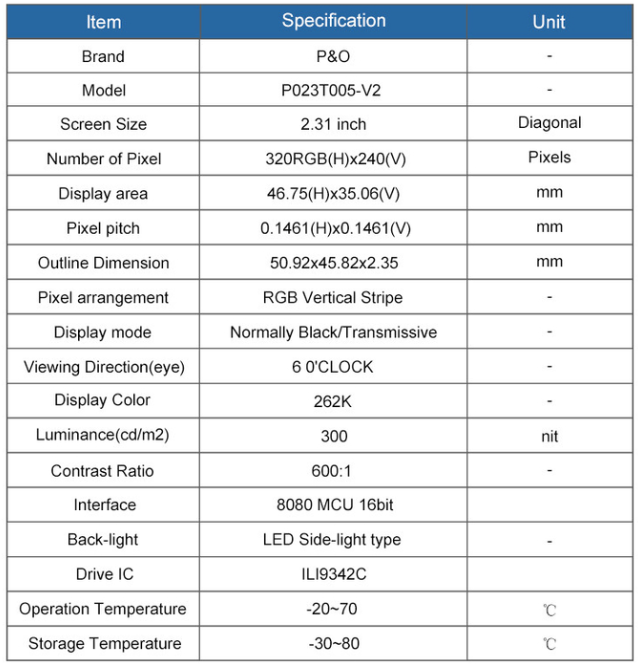

| P/N | P023H005-V2 |
| Size(inch) | 2.31 |
| Resolution | 320*240 |
| Active Area(mm) | 46.75*35.06 |
| Pixel pitch(um) | 146.1*146.1 |
| Outline Dimension(mm) | 50.92*45.82*2.35 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9342C |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |

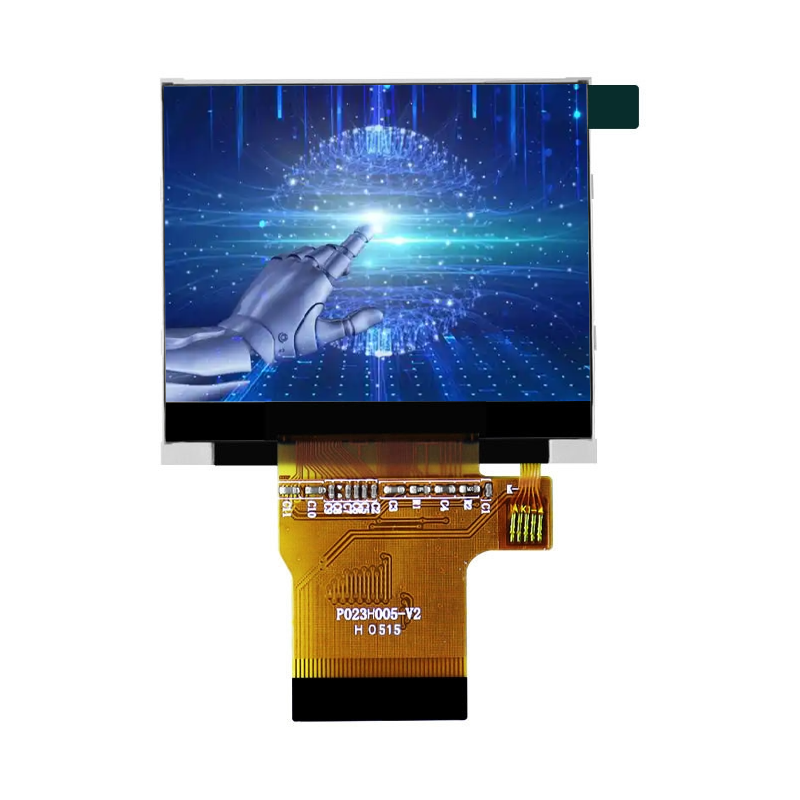

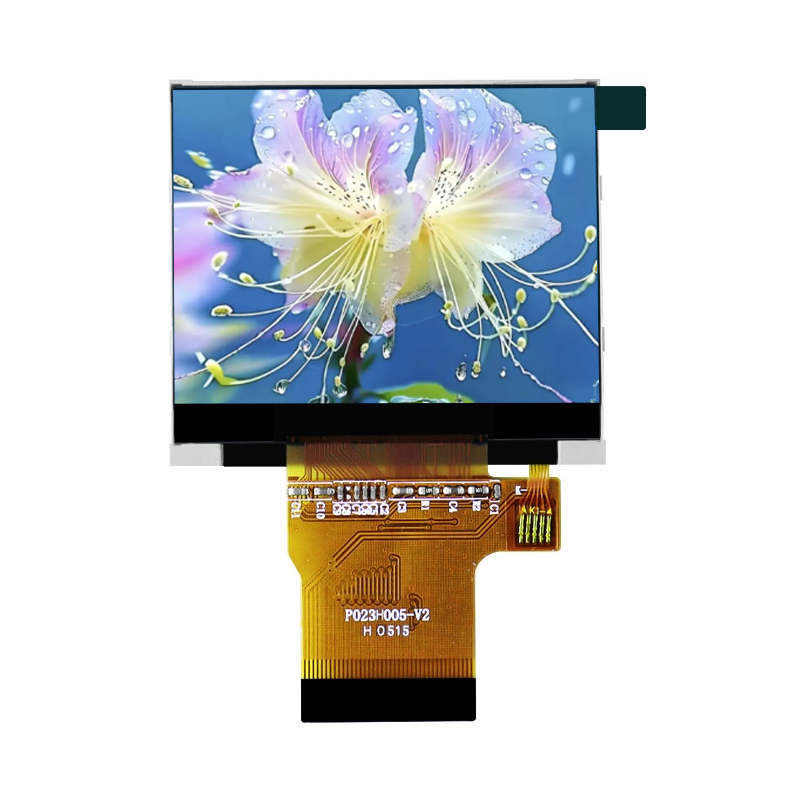

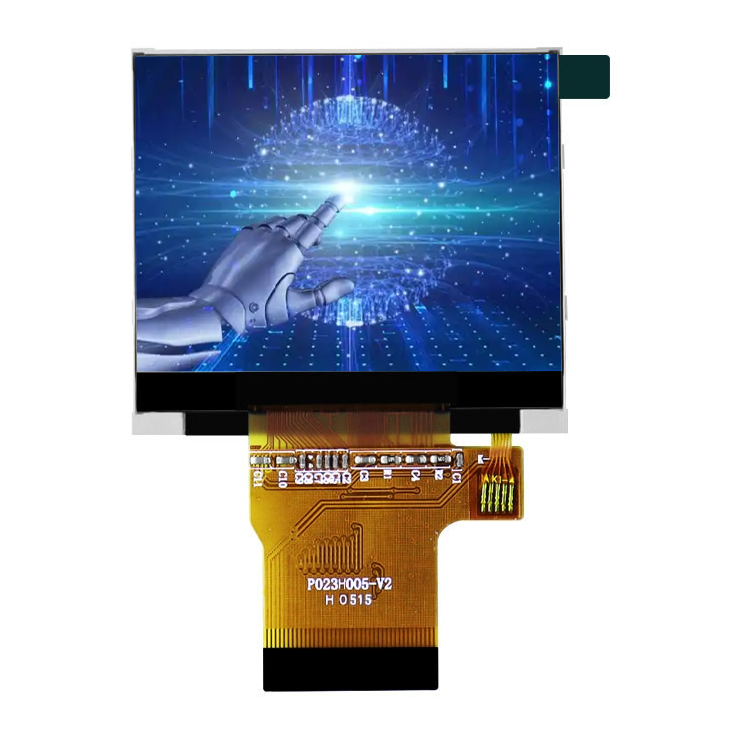

This is a high-performance display solution designed specifically for medical devices, industrial control, and compact smart terminals. It uses a 2.31-inch standard size panel, with the ILI9342C driver chip at its core, and achieves high-speed data transmission through an 8080 MCU 16-bit parallel bus interface, delivering a comprehensive performance breakthrough in high resolution, high contrast, and fast response within a compact size.
High-resolution landscape display and fine image quality

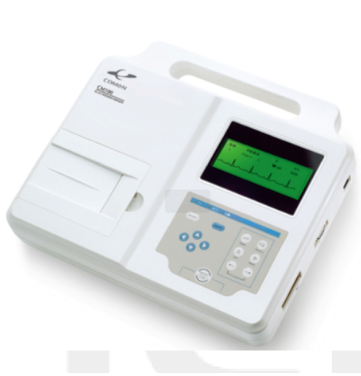

The module has a physical resolution of 320×240 and adopts a landscape layout design, with an effective display area of 46.75mm (horizontal) × 35.06mm (vertical) and pixel precision of 146.1μm × 146.1μm. The RGB vertical stripe pixel arrangement structure, combined with 262K color display capability, ensures smooth and delicate color transitions, meeting the fine rendering requirements for medical waveform charts, data monitoring interfaces, and industrial status indicators. Compared to the commonly used 240×320 portrait solutions of the same size, the 320×240 landscape ratio is more in line with the human eye's horizontal scanning habit, providing a more natural visual reading experience in scenarios such as medical device dashboards and industrial control panels.
