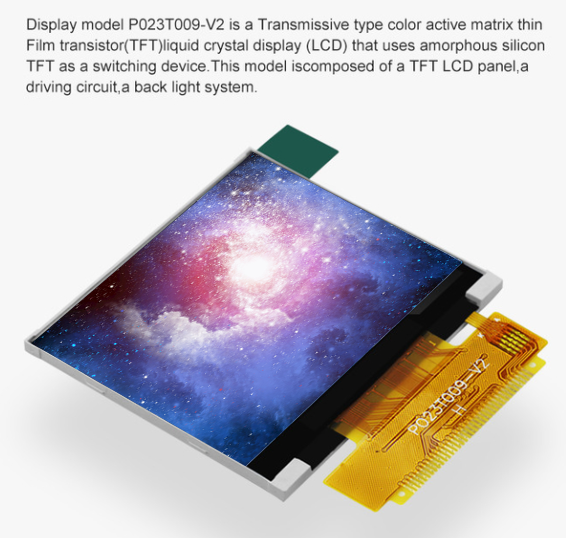

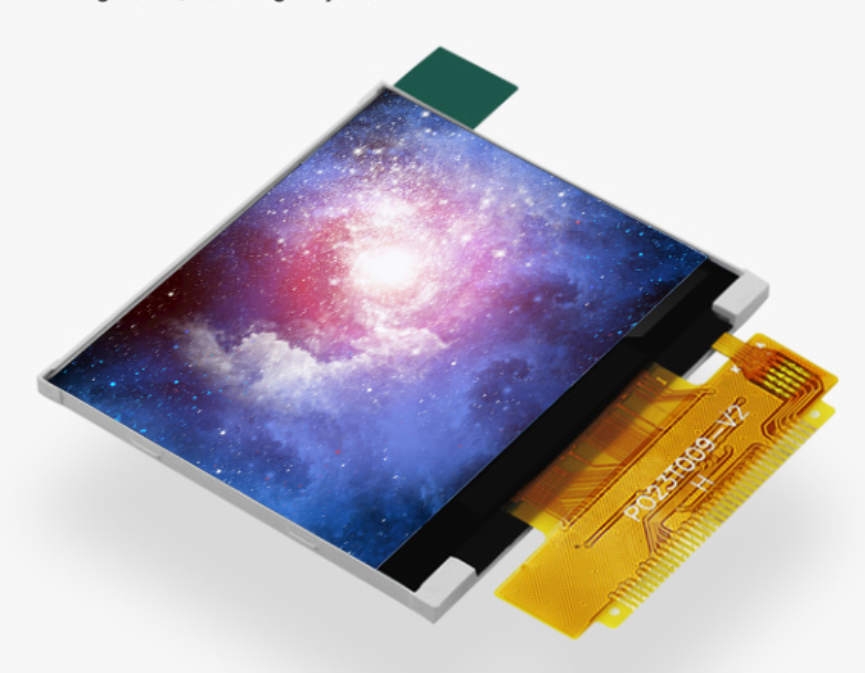

| P/N | P023T009-V2 |
| Size(inch) | 2.31 |
| Resolution | 320*240 |
| Active Area(mm) | 46.75*35.06 |
| Pixel pitch(um) | 146.1*146.1 |

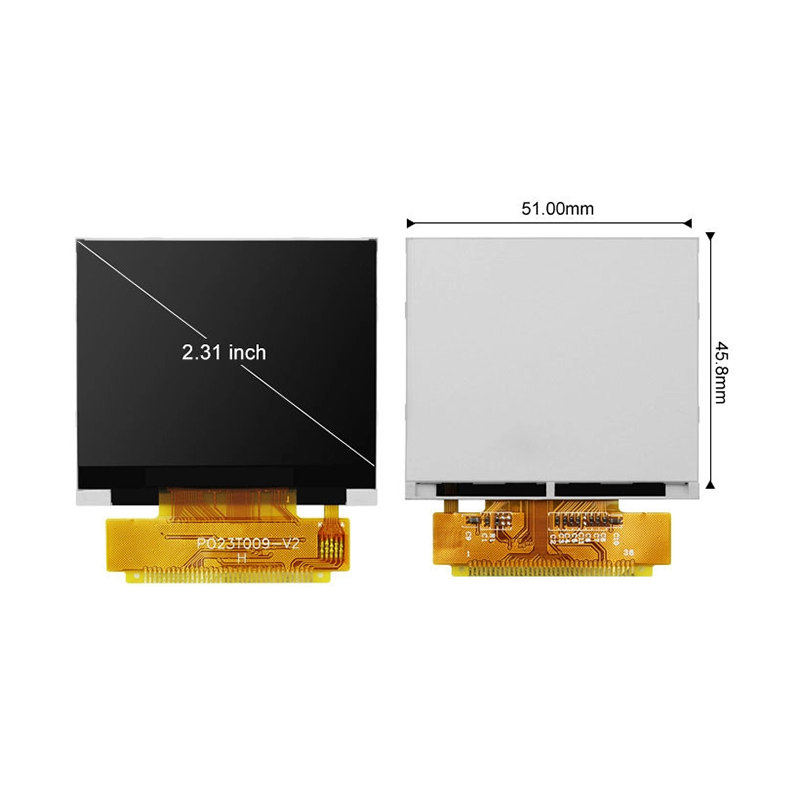

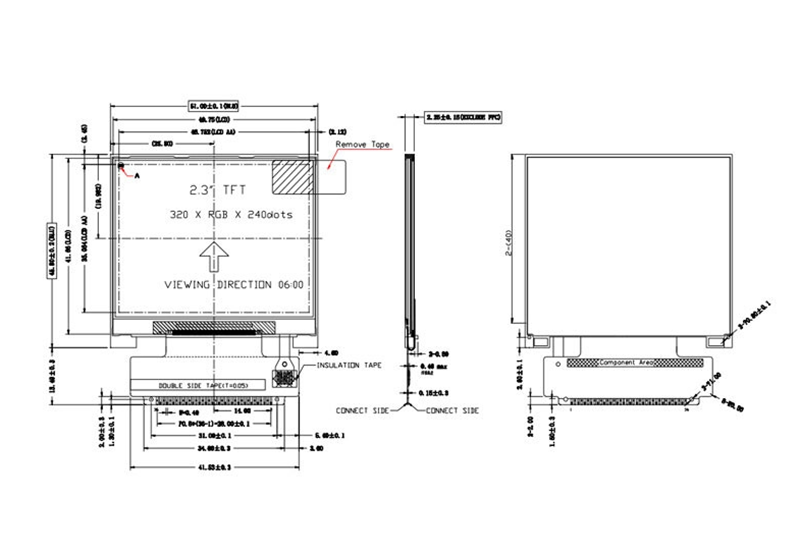

| Outline Dimension(mm) | 51.00*45.82*2.25 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9342C |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 36 |
The module has an effective display area of 46.75mm × 35.06mm, with a pixel pitch of 146.1μm × 146.1μm, using RGB vertical stripe pixel arrangement, capable of displaying 262K colors with rich color levels. The viewing angle of the module is best at the 6 o'clock position. This is because operators typically look naturally from the front and the ergonomic habits of industrial panels and handheld devices also support this alignment. Display in Normally Black mode along with ultra-high contrast ratio of 600:1 creates deep dark areas and vivid bright details. Industrial features, waveform curves and dark UI layers are very well separated, so even small signal fluctuations and texture differences can be seen without any difficulty.
The module measures 51.00mm × 45.82mm × 2.25mm and is only 2.25mm thick. It has a compact, slim body & a thin structure.The FPC flex cable has really great bending properties so even if the space inside the industrial equipment is limited, installation will still be quite flexible. Backlight, drive and display control, all the part are included in the single chip is a very nice feature and it makes overall powering and PCB layout very easy. There are provided environments for the product: working temperature from -20℃ to 70℃ and storage temperature from -30℃ to 80℃, so it even after running continuously for long periods, in the conditions of great temperature and humidity changes, as in the case of factory workshops, outdoor base stations, and field operations, would be able to function in a stable way without interruptions.
Designed for the industrial control and precision instrument areas, the P023T009-V2 is a 2.31-inch TFT LCD module designed for the industrial control and precision instrument fields. It features a built-in ILITEK ILI9342C high-performance driver chip, with a resolution of 320×240 pixels (QVGA), using an 8080 parallel bus architecture, high-contrast display, and wide-temperature operation characteristics. It provides professional-grade visual output solutions for industrial HMI interfaces, portable diagnostic devices, data acquisition terminals, automation control systems, and high-end consumer electronics. Besides, it supports high-contrast display and wide-temperature operation hostilities.
Talent- intensive organization is a main characteristic of Shenzhen Yitai Optoelectronics Co., Ltd. Out of more than 320 employees, 28 senior R&D personnel make up almost 9%, which is considerably higher than the average level of traditional manufacturing enterprises. This highly educated and highly-skilled R&D team with its over 20 patented technologies represents the company's technological innovation backbone. Set up in 2014 and deeply rooted in Shenzhen for over a decade, the firm has been recognized as a national high-tech enterprise. In the 20,000-square-meter facility, talent complements 20 production lines having a monthly production capacity of 2.5 to 3 million pieces. ISO9001 quality management system is designed to standardize procedures and practices within the organization, a ten-thousand-level cleanroom and fully automated LCD production lines present the personnel with unlimited capacity for job-related creativity. Besides the production of more than a thousand TN/HTN/STN/VA products, there are hundreds of TFT color screens, and customized LED backlight sources as well. Hence, the company is essentially focused on 0.96-inch to 7-inch market segments. Besides medicine, inspection, smart home, and IoT terminals, applications of these products are extensively exported to other markets.

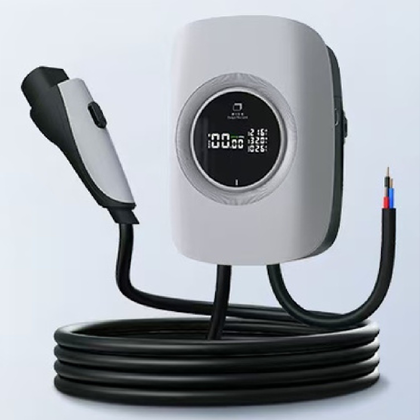

Customized 4.3-inch charging pile interactive screen for a popular new energy brand with high-brightness IPS full lamination technology and IP65 level protection. We specially optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) for complicated outdoor environments. So the display will be clear under various weather conditions. The screen also includes an intelligent light-sensing system that can automatically adjust the display brightness in response to the changes of light during day and night, which can bring a great improvement of the user operation experience.
