| P/N | P043C025-40-V3(RTP) |
| Size(inch) | 4.3 |
| Resolution | 480*272 |
| Brightness(cd/m²) | 300 |
| Interface | RGB 24bit |
| Driver Ic | ILI6485 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
This TFT LCD, with the support of RGB 24bit, can be widely used in a variety of applications. From the datasheet we know the driving part of the LCD is a ILI6485.
The operation temperature range is from -20°C to 70°C, storage temperature range is from -30°C to 80°C and they are both compliant with industry standards.

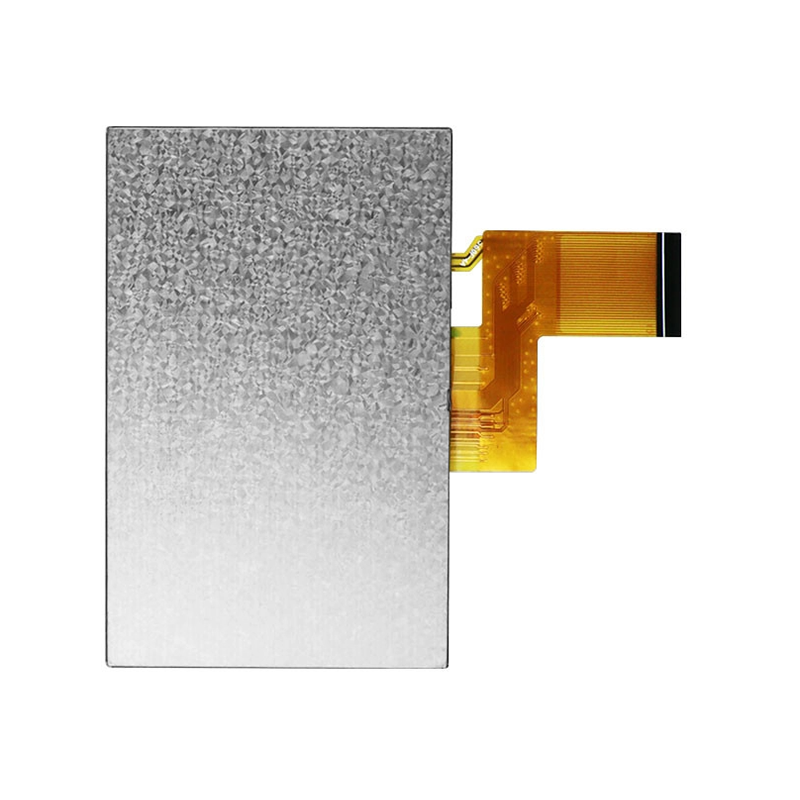

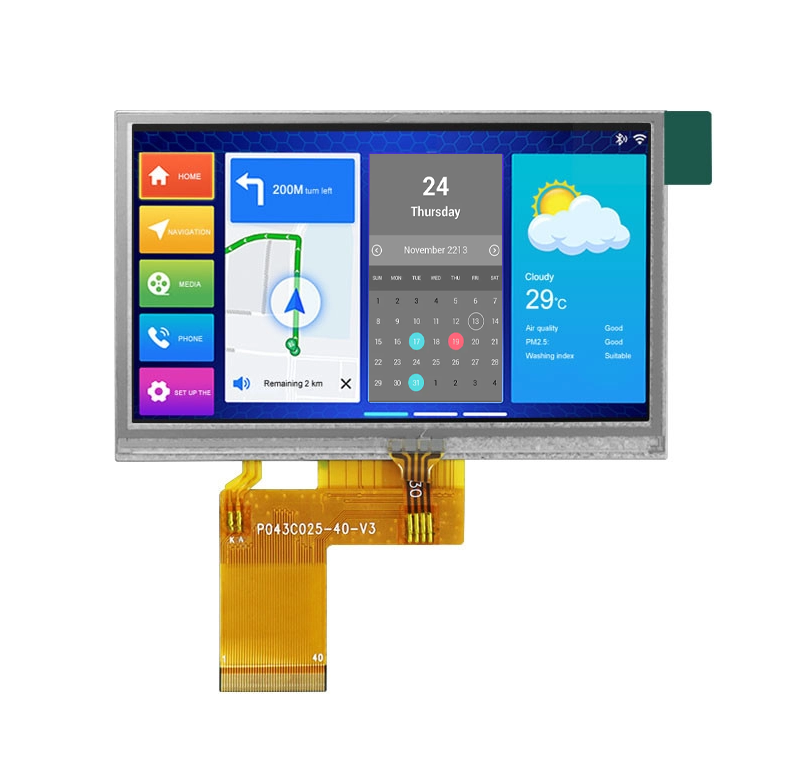

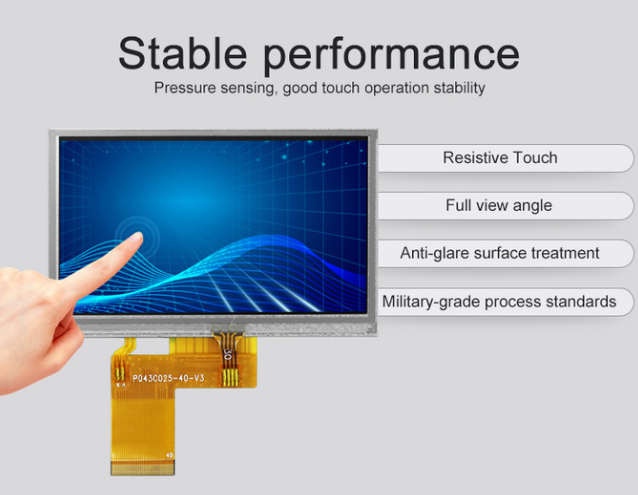

Industrial control and harsh environment P043C025-40-V3(RTP) is 4.3-inch TFT LCD display module from ILITEK. This display module comes with an integrated driver chip ILITEK ILI6485, high-performance, with a resolution of 480 272 pixels (WQVGA), 24-bit true color, full-view display, resistive touch sensor. This module is a stable and reliable visual interactive solution for industrial HMI interfaces, in-vehicle navigation, smart POS machines, outdoor inspection equipment, military equipment, and high-end consumer electronics.
All the manufacturing of the module process is done by meeting the standards of the military-grade, with a very rigorous screening of incoming materials and a very clean production environment, thus products have the highest quality, and the prototype has long-term reliability. The product has great environmental adaptability such as operating temperature is -20°C to 70°C. It can be used in industrial sites, in-vehicle, and even outdoor highly fluctuated temperature and humidity environments.
Shenzhen Yitai Optoelectronics started it all back in 2014 as a high-tech enterprise in China with 12 years of display manufacturing experience. The enterprise has 20,000 square meters of factory space that is independent and includes 20 automated LCD production lines as well as a dust-free workshop that is at the 10,000-class level. There are over 320 staff members, and the monthly output is 2.5-3 million units to satisfy large-scale order requirements. The total R&D team of 28 professionals is dedicated mainly to the development of new products. They have already created around 1,000 types of TN/HTN/STN/VA displays along with various TFT color LCD screens. Small-size displays from 0.96 to 7 inches are mainly their products and they cater to both industrial and consumer fields. LED backlight is one of the customized services that they provide. Along with being ISO9001 certified, the company has been granted over 20 patents. Based on the customer first and product quality considerations, all products are subjected to the most rigorous testing to ensure that they perform well even in the most challenging environments. The line of products has been continuously upgraded to maintain the top-level manufacturing capacity in the industry. The products can be used in the fields of medical instruments, smart home, IoT, and testing equipment. The company is doing a good job in terms of sales and has a wide customer base throughout China, Europe, America, and Southeast Asia.
We custom-made a 4.3-inch charging pile interactive screen for a renowned new energy brand by selecting high brightness IPS full lamination technology. Besides fulfilling the IP65 protection level requirements, the anti-glare design and wide temperature operation performance (-30°C~70°C) were optimized for outdoor environments by us. Also, the screen has a built-in intelligent light-sensing adjustment system that is capable of automatically adjusting display brightness based on day and night lighting conditions, which greatly improves the user operation experience.
Made a 3.5-inch industrial-grade intercom display for a renowned communication equipment manufacturer as per their requirements. A high-brightness IPS fully laminated touch screen was used that meets IP67 protection requirements. The shock-resistant frame and anti-slip texture design were optimized considering the special needs of the industry to ensure reliable operation in harsh environments. Besides, the screen comes with an integrated intelligent light-sensing adjustment technology that can auto-switch between day and night modes based on the ambient light, which greatly increases visibility and operational efficiency while working outdoors.
We customized a 4.3-inch industrial-grade instrument display for a leading power equipment manufacturer, employing high-contrast IPS full lamination technology. This product is at the same time able to meet IP65 protection level requirements. We have designed the power industry-specific features such as dustproof and waterproof structure as well as wide temperature (-30°C to 70°C) stability to ensure uninterrupted power supply in extremely harsh environments like substations. The screen comes with an integrated adaptive brightness adjustment system which can automatically compensate for the different lighting conditions thereby significantly improving data reading and operational safety while performing outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
