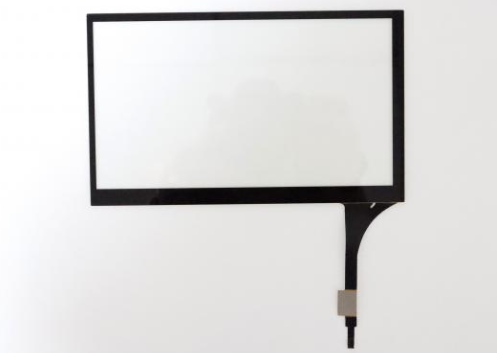

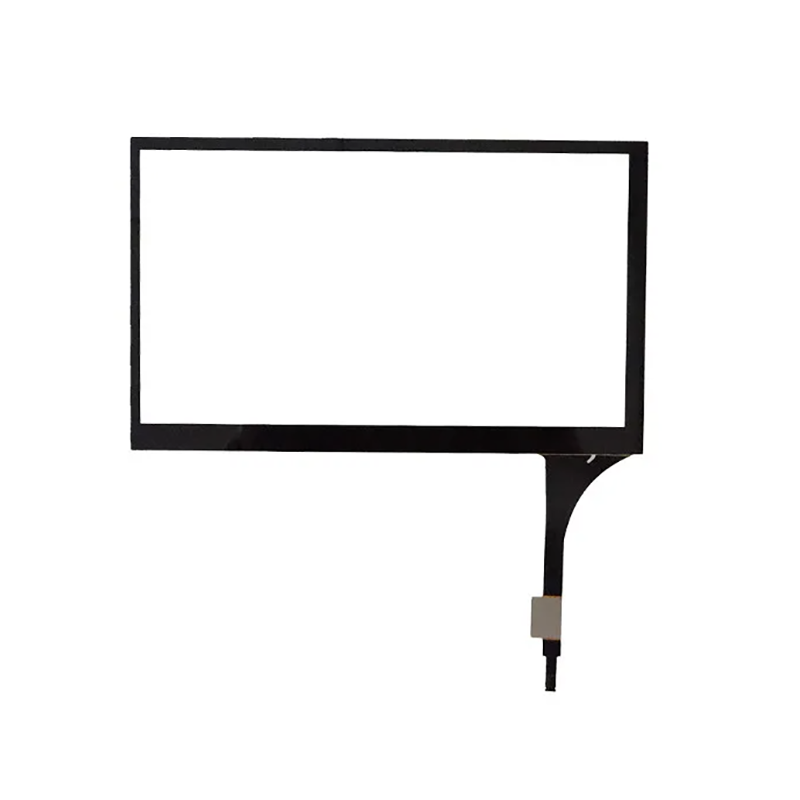

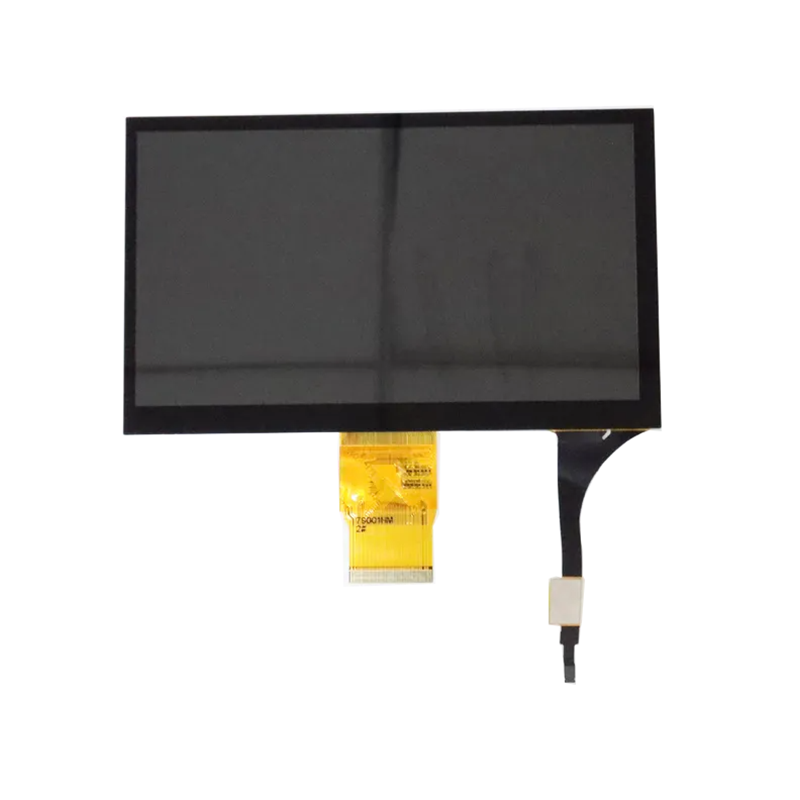

Product Description
The 7-inch capacitive touch screen has a wide range of applications, including industrial control, medical equipment, education and training, consumer electronics, and transportation. These application areas require a large-screen touch screen to provide rich functions and an easy-to-operate interface, and the 7-inch capacitive touch screen just meets these needs.
Product parameters:
| Product Name | 7” Capacitive Touch Screen |
| Brand | YiTai |
| Model | GGP070038-V1 |
| Size | 7 inch |
| View Area(mm) | 86.82±0.2(W)*155.32±0.2(H) |
| Structure | G+G |
| Drive IC | GT911 |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥83% min |
| Surface hardness | ≥6H(Pencil) |
| Unfilled size tolerance | ±0.2mm |
| Operating temperature | -10℃~+60℃≤90%RH |
| Storage temperature | -20℃~+70℃≤90%RH |
| Certification | RoHS |
| Warranty | 1-2 years |
Application:
1. Industrial control: 7-inch capacitive touch screen can be used in industrial control systems, such as factory automation, robot control and instrument monitoring, etc. The touch screen can provide a visual operation interface, making industrial systems easier to operate and monitor.
2. Medical equipment: 7-inch capacitive touch screen can be used in medical equipment, such as medical monitors, handheld diagnostic instruments and dental equipment. The touch screen can provide clear images and an easy-to-operate interface, which is convenient for medical workers to diagnose and treat.
3. Education and training: 7-inch capacitive touch screen can be used in the field of education and training, such as electronic whiteboard, interactive teaching and virtual laboratory. Touch screens can provide an interactive learning experience, making students more actively engaged and learning.
4. Consumer electronics: 7-inch capacitive touch screens can be used in consumer electronics products, such as tablet computers, smart homes and smart robots. Touch screen can provide rich functions and easy-to-operate interface, so that consumers can use these products more conveniently.
5. Transportation: The 7-inch capacitive touch screen can be used in the field of transportation, such as car navigation, bus stop signs and avionics equipment. The touch screen can provide real-time information and an easy-to-operate interface, which is convenient for users to perform operations such as navigation and query.
To sum up, the 7-inch capacitive touch screen has a wide range of applications, including industrial control, medical equipment, education and training, consumer electronics, and transportation. These application areas require a large-screen touch screen to provide rich functions and an easy-to-operate interface, and the 7-inch capacitive touch screen
Before the first curve had peaked, Shenzhenshi Yitai Optoelectronics Co., Ltd. had already laid out a second curve. In 2014, it started with TN/HTN/STN/VA products, then expanded to TFT color screens, and subsequently launched customized LED backlight services, continually seeking new growth points in the small-size range from 0.96 to 7 inches. With a 20,000-square-meter base, 20 production lines with a monthly capacity of 2.5 to 3 million units, and a team of 320 including 28 R&D personnel, the company draws the second curve in a ten-thousand-level cleanroom using fully automated LCD production lines. ISO9001 certification ensures smooth curve transitions, more than 20 patented technologies drive curve advancement, and the national high-tech enterprise qualification confirms the curve's value. Over a thousand TN/HTN/STN/VA products represent the first curve, while more than a hundred TFT color screens and customized LED backlight products represent the second curve. Every product undergoes rigorous testing and verifies curve logic in medical, inspection, smart home, and IoT devices. The second curve extends from Shenzhen to Europe, America, and Southeast Asia.
Dispatched a 4-inch financial-grade encrypted display was tailored for international banks. A military-grade IPS full lamination touchscreen was employed, and the display was compliant to PCIDSS payment security standards. To fulfill the stringent security requirements of the banking sector, the display was equipped with an anti-peeping structure and tamper-proof frame to ensure ATM and other self-service terminal data remain secure. This display has an intelligent ambient light adaptation system that will take the lighting conditions of the branch and accordingly set the optimal display state, resulting in better customer operation experience and higher transaction efficiency.
A well-known communication equipment manufacturer needed an industrial-grade intercom display that is only 3.5 inches but capable of supporting high brightness. Therefore, a high-brightness IPS fully laminated touch screen was used, and the product was made to meet IP67 protection requirements. Due to the special nature of a certain industry, the frame of the display was made even more shock-resistant, while its surface texture was also changed to prevent slipping. Hence, the working conditions of the equipment are very well supported by the customized product and operation is reliable even when the environment is harsh. Besides, the screen supports intelligent light-sensing adjustment technology that is capable of switching display modes between day and night automatically by sensing the ambient light. This feature greatly improves the visibility and efficiency of operation during outdoor work.
We designed a custom 4.3-inch industrial-grade display for a famous power equipment manufacturer. The display uses high-contrast IPS full lamination technology and complies with the IP65 protection level requirements. Besides that, we improved the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for the power industry needs so the power equipment can work reliably even in complex environments such as substations.
The screen brings together an adaptive brightness control system that is able to adjust display effects automatically according to the ambient light, which in turn to a great extent improves data reading efficiency and operational safety during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
