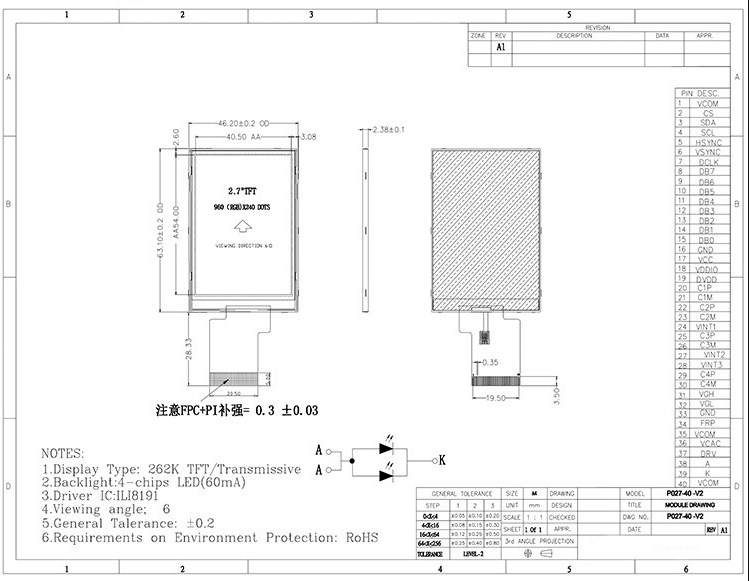

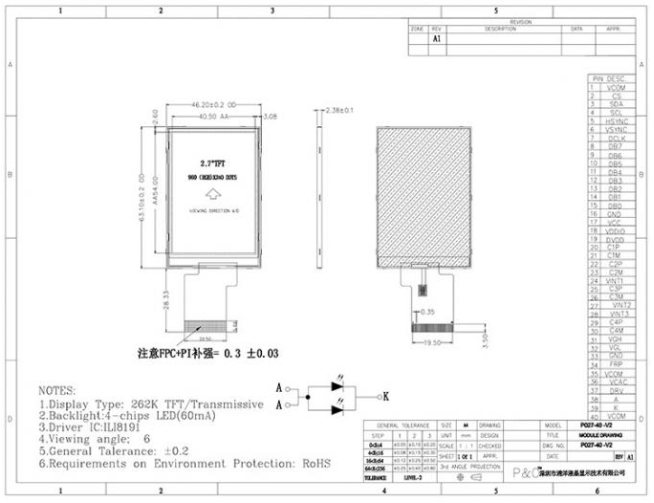

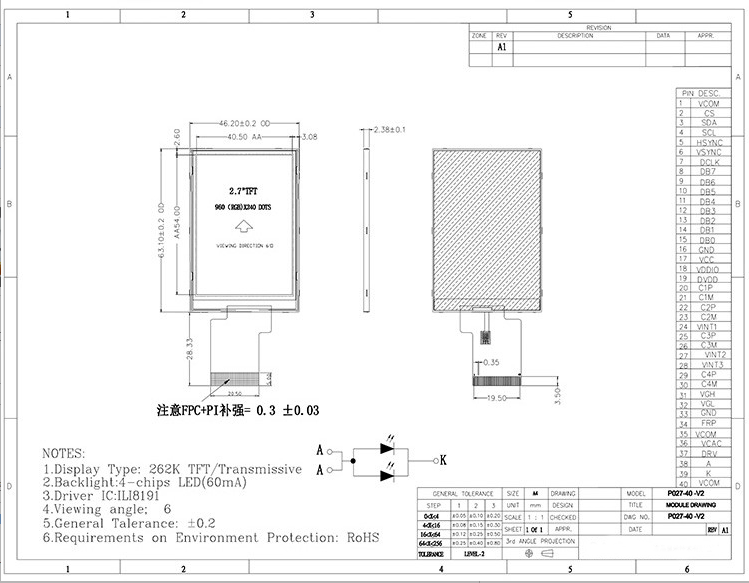

Parameter:
| Model | P027-40-V2 |
| Screen Size | 2.7 inch |
| Number of Pixel | 960RGB(H)x240(V) |
| Display area | 40.50(H)x54.00(V)mm |
| Pixel pitch | 0.05625(H)x0.16875(V)mm |
| Pins | 40 pins |

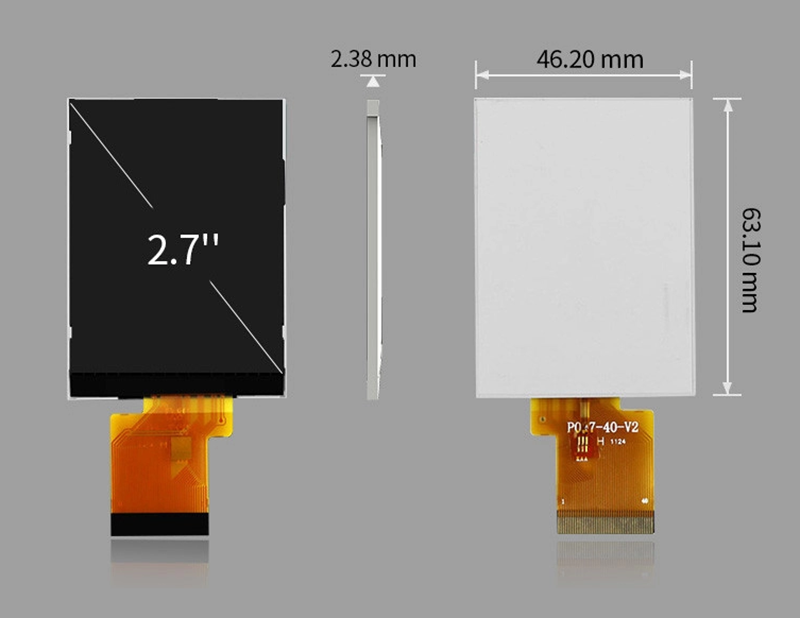

| Outline Dimension | 46.20x63.10x2.38mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 6 0'CLOCK |
| Display Color | 262K |
| Luminance(cd/m2) | 230 nit |
| Contrast Ratio | 600:1 |
| Interface | RGB 8bit |
| Back-light | LED Side-light type |
| Drive IC | ILI8961 |
| Operation Temperature | -30~80℃ |
| Storage Temperature | -30~80℃ |
Precise Application Scenario Positioning
With a combination of 960×240 ultra-wide resolution, 4:1 unique display ratio, wide temperature range reliability, and a mature ILI8961 ecosystem, the P027-40-V2 precisely meets the display requirements of industrial HMI dashboards, in-vehicle multimedia status bars, portable music players, security monitoring terminals, and smart home appliance control panels. The ultra-wide screen layout maximizes horizontal information display efficiency within a limited height, making it the preferred display solution for industrial and automotive smart hardware projects that pursue data density, compact structure, and environmental adaptability.
Ultra-Wide Resolution and Unique Display Ratio
The module has a physical resolution of up to 960RGB(H)×240(V) and adopts a 4:1 ultra-wide (Ultra-Wide) layout design, with an effective display area of 40.50mm (horizontal) × 54.00mm (vertical). The horizontal pixel density reaches 960 dots, with pixel pitch of 0.05625mm (horizontal) × 0.16875mm (vertical), achieving extremely high horizontal information capacity on a 2.7-inch panel. This remarkably ultra-wide aspect ratio is extremely appropriate for the like of industrial dashboards, in-vehicle status bars, music player waveform displays, and data monitoring interfaces where a horizontal view of several parameters or long strip content is necessitated. In fact, a single screen can very well accommodate more data fields and status indicator elements.
Normally White Mode and Optical Characteristics
The mode of the display is Normally White. It has been designed with a view angle of 6 o’clock for the optimum viewing of brightness and colors. This mode offers the best brightness and color consistency when the viewer is looking at the display from a front-lower angle. The display brightness or luminance level is 230 nits approximately which should be very comfortable for eyes during the ordinary inside industrial environment or car dashboard lighting conditions. With a contrast ratio of 600:1, he image shows a good range of tones, and the background and foreground elements are well differentiated. The 262K color levels are sufficient to represent the smooth gradation of colors required for icons, data charts, and simple graphics. Side-edge backlight with LED uses 4-chip LED (60mA drive current), enabling perfect luminance uniformity and low power consumption control.
