Parameter:
| Model | P045BR02-IPS |
| Screen Size | 4.5 inch |
| Number of Pixel | 480RGB(H)x854(V) |
| Pin | 40 pin |
| Display area | 55.44(H)x98.64(V)mm |
| Pixel pitch | 0.1155(H)x0.1155(V)mm |

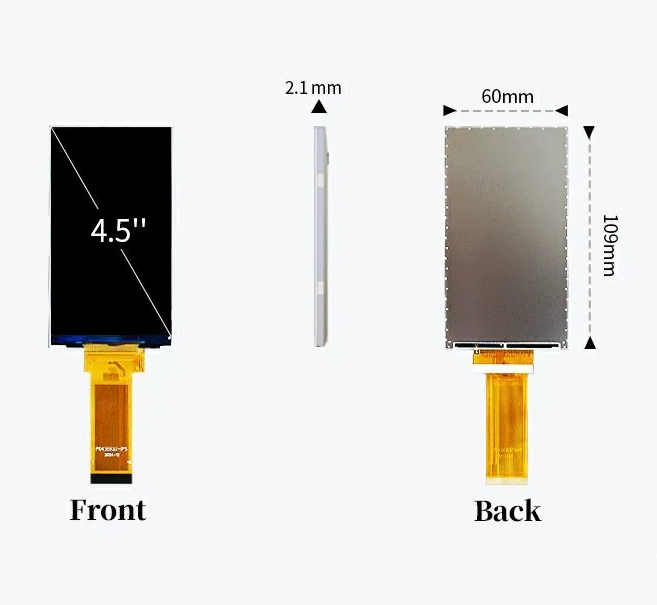

| Outline Dimension | 60x109x2.15mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| LCM IC | GC9503V |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |

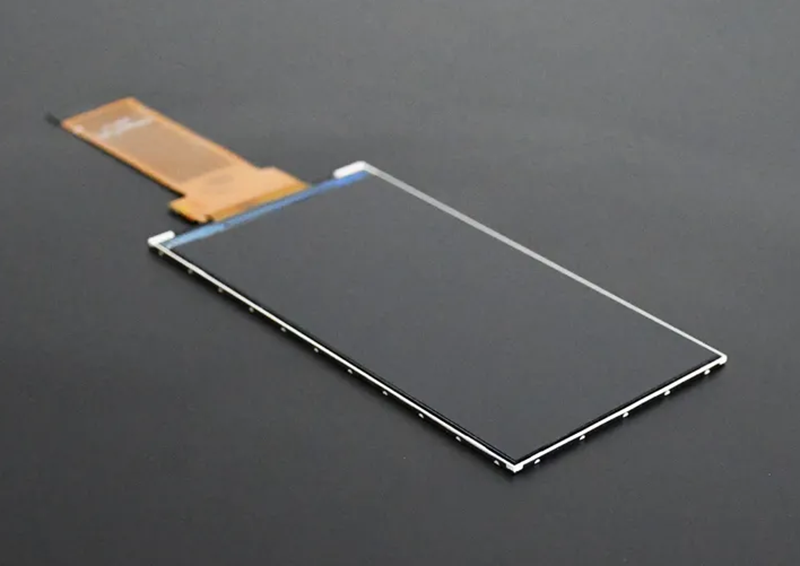

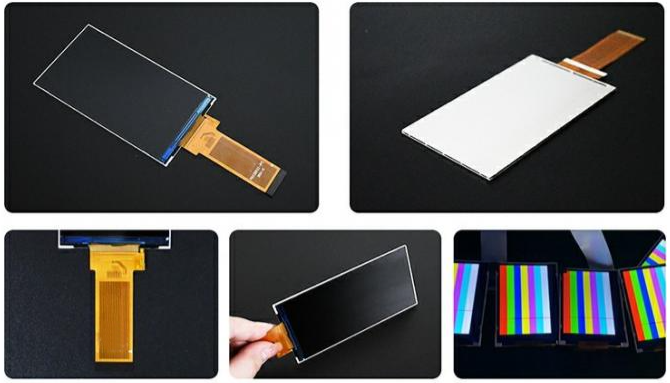

The P045BR02-IPS is a 4.5" TFT LCD display module with a very fine resolution of 480×854 and RGB 24-bit true color interface, and thus it is intended for use in very large, high-definition display solutions for very high-end display applications. With a resolution of 480RGB by 854 pixels, this module has an active display area measuring 55.44mm by 98.64mm. The pixels are vertically arranged in RGB stripes, and the pixel pitch is a mere 0.1155 by 0.1155mm, thus a very beautiful and detailed image can be presented on the 4.5" display area. Some of the applications are professional photography monitors, industrial control terminals, smart home central control panels, aviation cockpit displays, and high-end portable devices, etc.
The driver chip used is GC9503V, and it is coupled with an RGB 24-bit parallel interface, thus there will be more than enough data throughput bandwidth to ensure smooth screen refresh and natural, seamless UI animation transition. From the viewpoint of the structural design, the dimensions of the module are 60×109×2.15mm with a thickness of only 2.15mm. This super slim specification is really at the level of the thinnest among the similar large-size modules which will be very helpful when embedding the device inside a small enclosure space.
Among a lot of similar companies, Shenzhen Yitai Optoelectronics Co., Ltd. stands out for a few reasons:
Founded in 2014, we are a national high-tech enterprise that has been deeply rooted in Shenzhen for more than ten years. We have our own independent factory, that houses more than 320 workers. Manufacturing displays for 12 years, our monthly production capacity is 2.5 to 3 million units, which is ample to fulfill large-scale customer orders.
The factory occupies 20,000 square meters, and currently, about 20 production lines are working simultaneously. Besides, a senior R&D team consisting of 28 members conceptualize new designs, so we can keep pace with the times and even better satisfy customer needs.
Then, in terms of production value, the factory is backed by a 10,000-class cleanroom and top-notch automated LCD production lines that ensure product quality is both stable and reliable. On the product side, we have more than a thousand standard TN/HTN/STN/VA LCD modules and several hundred TFT color LCDs, which are all designed for different market segments and come with the customization of LED backlight service options.
Besides all the above, we have technical strength and qualifications that we are very proud of. As a national high-tech enterprise and a technology-based SME of Shenzhen city, Yitai Optoelectronics owns over twenty patented technologies and has been certified with ISO9001 quality management system.
Most importantly, the company not only bases on, but also vigorously practices the concept "customer first, quality foremost". Practically, every product is tested exhaustively - including high and low temperature, vibration, and anti-interference tests - to make sure they can operate stably even under different complex environmental conditions.

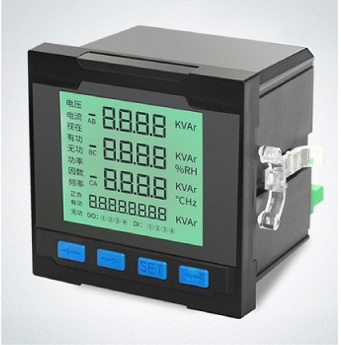

Customized development of a 4.3-inch industrial-grade instrument display was undertaken for a famous power equipment manufacturer. The display uses high-contrast IPS full lamination technology and meets the IP65 protection level by design. Also, we have optimized the structure for dust and waterproofing along with wide temperature design (-30°C to 70°C) for the special power industry requirements, thus allowing for continuous operation even in very complicated environments such as substation.
The display is equipped with an adaptive brightness control system which is capable to automatically adjust the display effects with the surrounding light and this greatly helps in reading data and safety during outside inspections.

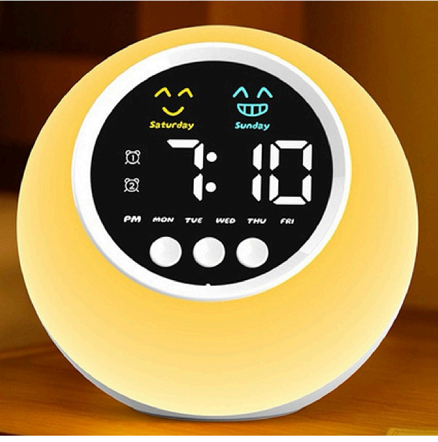

Custom creating a 2.8-inch minimalist clock display for a famous home furnishing brand, utilizing low-power IPS full lamination technology, that ensures the image remains clear even at 180° wide viewing angle. Taking bedroom scenarios as a reference, we polished the ultra-thin borderless design and the soft light guide structure to be in harmony with the modern home style. The display has a built-in smart light-sensor adjustment system which not only changes the display mode automatically following the daylight variations but is also capable of switching to a gentle light mode at night so that the time is not only visible easily but the sleep is also not disturbed.

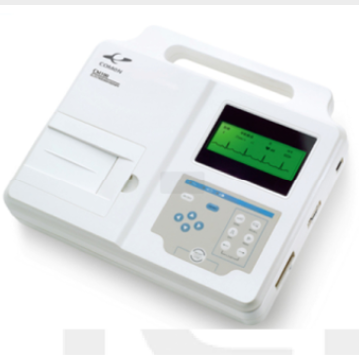

Designed and custom-made a 5-inch medical-grade touch display for a globally recognized medical device company, equipped with a high-resolution IPS fully laminated panel and meeting Class B electromagnetic compatibility standards.
We have carefully followed medical ergonomics standards, and besides that, by introducing antibacterial bezels and anti-glare design, the display can operate stably in such complicated environments as operating rooms.Along with the screen, there is an ambient light intelligent adjustment system that can continually optimize the display parameters based on the situation, thus significantly lessening visual fatigue of the medical personnel and at the same time, helping to raise the level of diagnosis and treatment.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
