Product Description

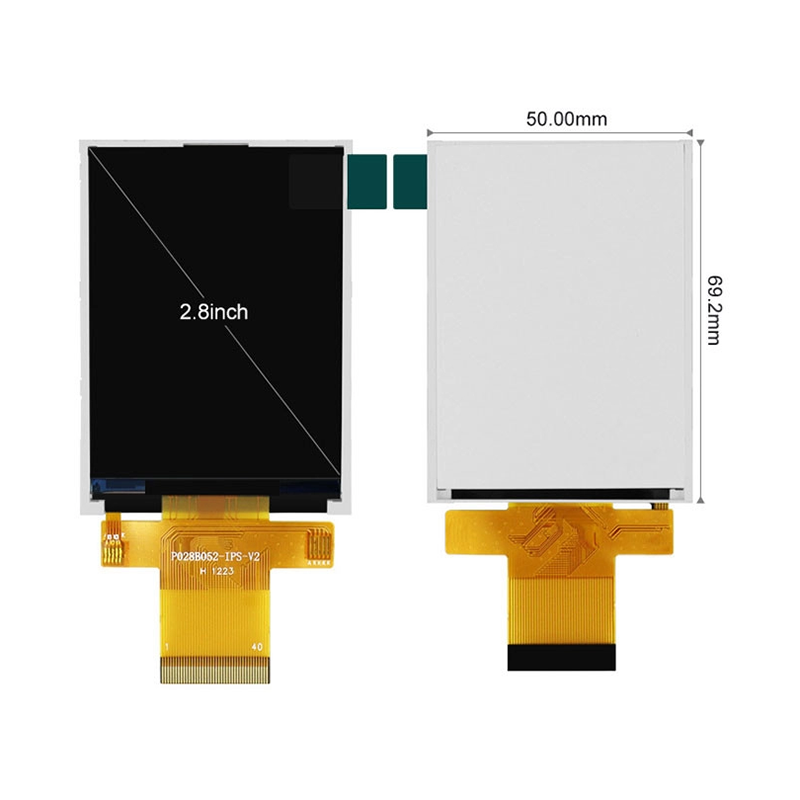

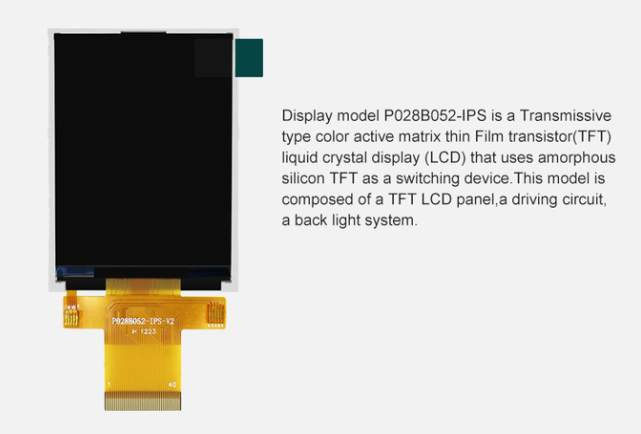

What are the capabilities of this one? Actually, prior to this, it is advisable to gather some information about this IPS TFT LCD Display first. Its screen size is 2.8 inch. It's a very common and selling one among small size TFT displays. The TFT LCD has a physical resolution of 240 * 320, quite clear for most instances of usage. 300 nits brightness make this lcd good for indoor works.
P/N | P028B052-IPS-V2 |
Size(inch) | 2.8 |
Resolution | 240*320 |
Brightness(cd/m²) | 300 |
Interface | 3 wire 4 wire SPI MCU 8/9/16/ 18 BIT RGB 6/16/18BIT |
Driver Ic | ST7789V |
Operation Temperature(°C) | -20~70 |
Pin Number | 40 |
SPI MCU 3 wire 4 wire 8/9/16/ 18 BIT RGB 6/16/18BIT which are supported by this type of TFT LCD, mean it can be applied in different areas. st7789v tft lcd is the driver IC.
The operation temperature range is -20°C to 70°C and the storage temperature range is -30°C to 80°C which are compliant with the industry standards.
Industry Advantage: Leader in the field of small-size displays
Industrial Control
We supply display screens that are the best solution for portable teach -panels, compact HMIs, and handheld testers which you can always count on for their robustness, reliability, and even in the most demanding environmental conditions, they still perform excellently.
Medical Equipment
We are capable of providing display solutions which are high-definition, high-brightness, yet low-power consumptions, even medical standard complying monitors for the portable medical instruments debugging including blood glucose meters so that the doctor can make the accurate diagnosis.
Smart Home
We supply these display modules with a beautiful design that is eye pleasing to the user and at the same time they are very interactive, and energy efficient significantly smart and small home appliances and also smart switches and thermostats. With first-class quality and rapid customization, we have grown to be a leading smart home company in the global market.
Information and Communication
Our display solutions are characterized by fantastic optical performance, super visibility and extremely efficient energy use for communication devices such as walkie-talkie, law enforcement recorder and emergency communication terminal. Also, they meet military-grade standards and feature a stable and reliable visual output even in the most extreme environment which in turn helps communication equipment to achieve efficient operation .
Shenzhen YiTai Optoelectronics Co., Ltd (http://www.eitaioptical.com/) is a company with a corporate culture of “Customer First, Quality Foremost”. The company was established in 2014 and the philosophy has been guiding its development for more than 12 years. Also, it has become a trusted partner of many customers in different small markets. The company with the 20,000 square meter modern factory, 20 production lines that have the capacity to produce 2.5-3 million units per month, and a staff of 320 people (including 28 R&D personnel) is deeply embodying its corporate culture. The company has acquired in excess of 20 patents, the national high-tech enterprise qualification, and ISO9001 certification. A Class 10,000 cleanroom and automated production lines are a manifestation of its commitment to quality. The product range consists of over one thousand TN/HTN/STN/VA modules, hundreds of TFT color screens, customizable LED backlights. The first 0.96-7 inch small-size product range is mainly aimed at the medical, testing, smart home, and IoT terminal markets that have long been a favorite of customers abroad.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer.The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
