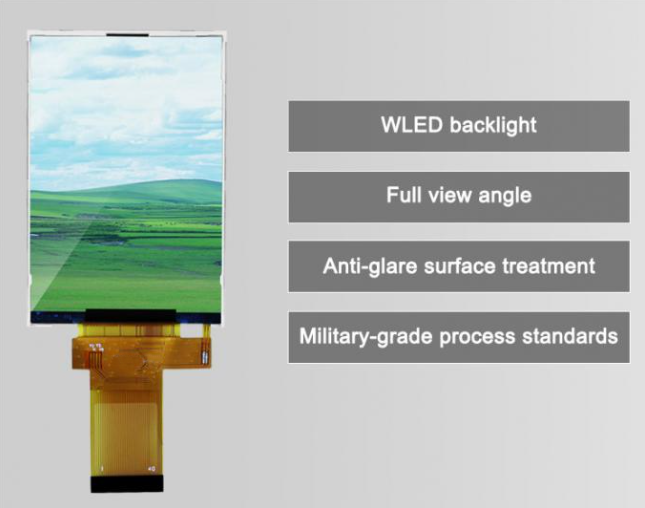

What is this display capable of? However, we should first gather some information about this IPS TFT LCD Display before answering this question.
This model comes with a 3.5-inch display size. This size is the most common and hot-selling one for small TFT displays.
With 320 x 480 physical pixels resolution, this TFT LCD will be visibly clear for most applications. The 350 nits brightness enable this LCD to operate efficiently indoor.
| P/N | P035M048-IPS |
| Size(inch) | 3.5 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 350 |
| Interface | 18BIT RGB |
| Driver Ic | ST7796S |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
18BIT RG are the principal colors the display supports internally. Therefore it is usable for several applications. ST7796S is the driver IC of the tft lcd.
-20°C to 70°C is the working temperature and -30°C to 80°C is the storage temperature, which are well in line with the industry standards.
The P035M048-IPS is a 3.5-inch IPS full-view TFT panel with a resolution of 800×480, featuring WVGA fine image quality within a 73.44×48.96mm display area. It has a 153×153μm pixel pitch with vertically arranged RGB stripes, which are capable of producing sharp text edges and clear map lines. Its 350 nits of high brightness combined with the inherent high-contrast characteristics of IPS technology, the interface remains well-defined under strong light conditions. Full viewing angles (80°/80°/80°/80°) mean that operators can monitor from any angle without experiencing any color shift or brightness decay.

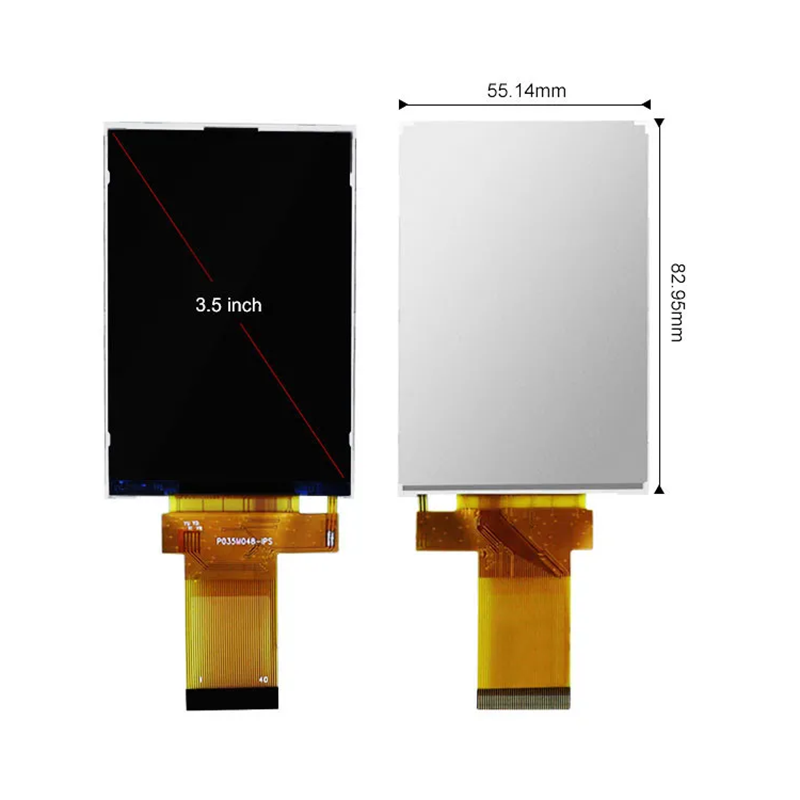

The physical dimensions are very small, i.e., only 82.95×55.14×2.00mm, and the thickness is the same as the one of a credit card, i.e., 2.0mm. In this way, a lot of space can still be left for stacking of other parts inside a device. There are maintained standard-level process standards in production quite throughout: from cleanroom manufacturing of panels in a ten-thousand-class, to testing that includes exposure to high and low temperature, and vibration, all the tThe his lyou cdstcreens bear full inspection before shipment.
Core Strength

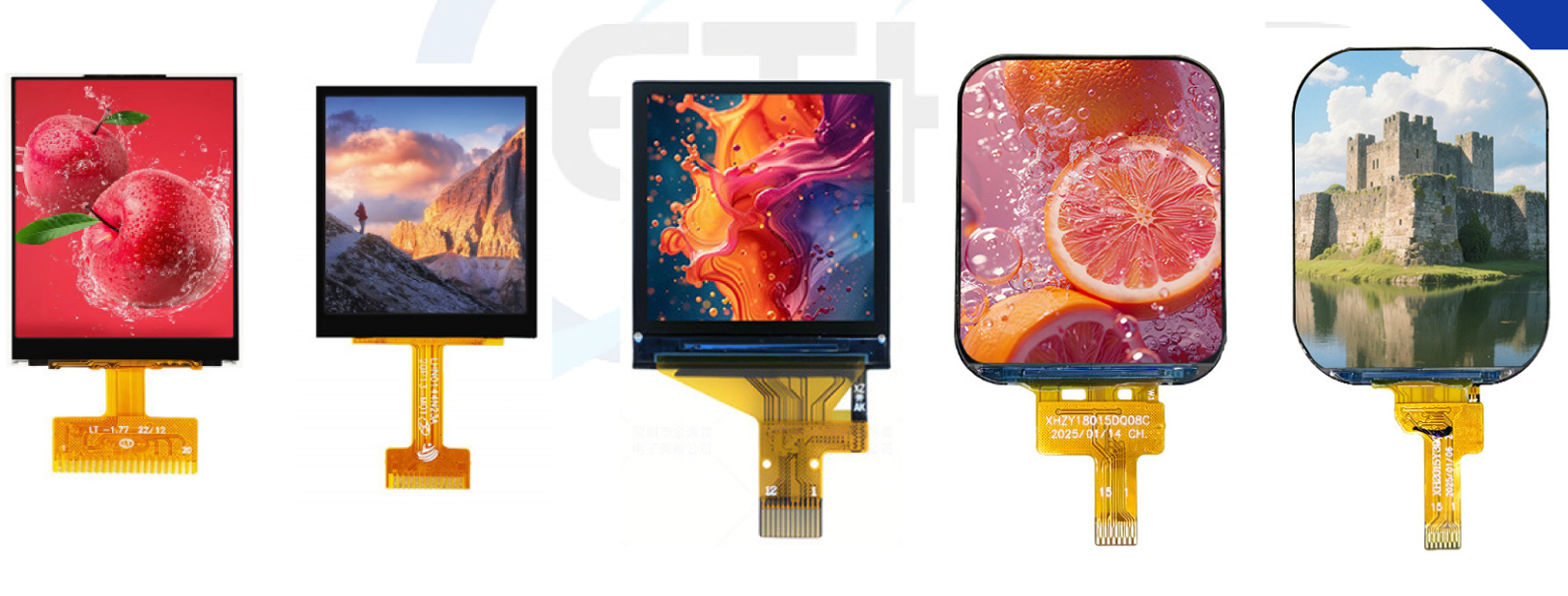

Rich Product Line: Successfully developed over a thousand TN/HTN/STN/VA display products and hundreds of TFT color LCD screens,
providing customized LED backlight services covering a variety of application scenarios.
Core Product Features
1. High PPI, Clear and Sharp
Up to 800*480, pixel density over 250 PPI, high pixel density, displaying fine details without graininess.
2. High Brightness
300-1000 nits, clearly visible under strong light, meeting visibility requirements in outdoor or high-light environments.
3. Wide Viewing Angle
Using IPS/FFS technology, viewing angle up to 160°~178°, no color shift when viewed from the side.
4. Wide Temperature Operation
Supports industrial temperature range of -30°C~85°C, suitable for complex environments.
5. High Integration, Rich Interfaces
Supports SPI, MCU, RGB, MIPI and other interfaces, compatible with mainstream host chips, easy to drive.
6. Slim and Compact, Space-Saving
Compact module structure, thickness can be less than 2.0mm, easy to integrate into portable and small devices.
7. Long Lifespan
LED backlight life over 50,000 hours.
8. Flexible Customization
Supports customization of FPC length, pin definition, and interface position, meeting various structural layout requirements.

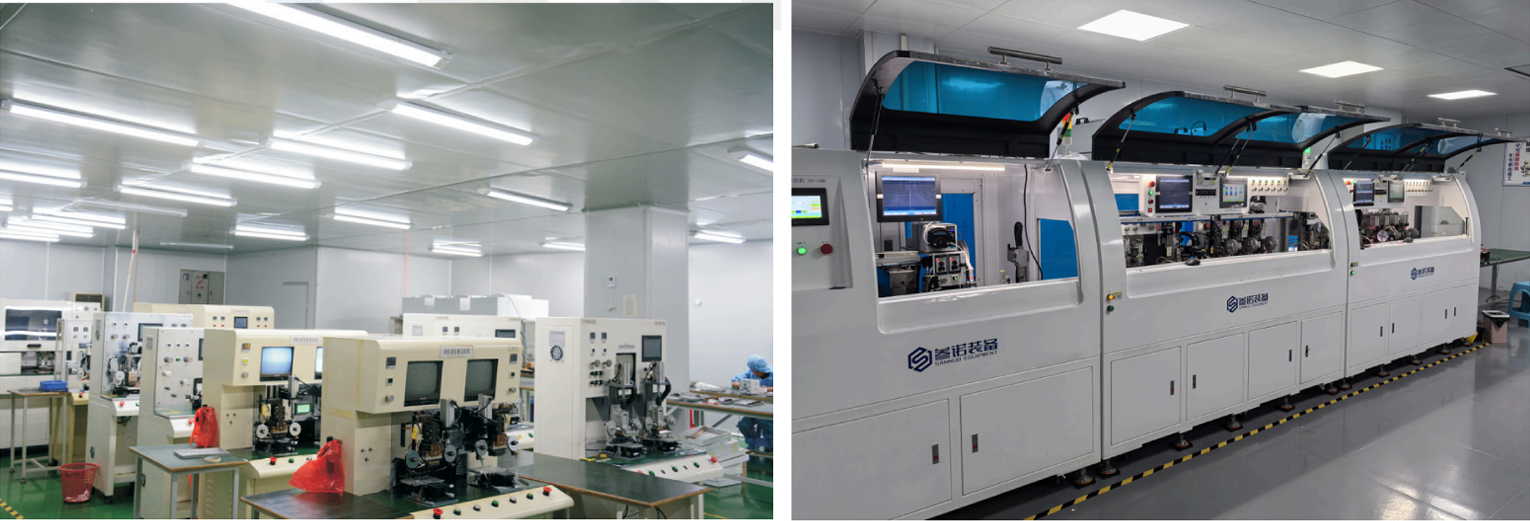

Details determine quality. Shenzhen Yitai Optoelectronics Co., Ltd. has quality control at its every stage. Environmental control in a ten-thousand-class cleanroom, parameter monitoring on 20 automated production lines, high and low temperature and vibration testing for each product - these are just some quality control activities. Shenzhen Yitai Optoelectronics Co., Ltd. was established in 2014, and it has a staff of 320, including 28 R&D personnel. The company`s base occupies an area of 20,000 square meters, and its monthly capacity is 2.5-3 million units. It has obtained more than 20 patents, ISO9001 certification, and the qualifications of a is a national high-tech enterprise. The product line includes over a thousand TN/HTN/STN/VA products and several hundred TFT color screens, LED backlights - customizable to a great extent. The company is focusing on small-sized displays of 0.96-7 inches, and has been producing them for twelve years. The products are being used in handheld testing instruments, portable medical devices, smart home appliances, and IoT terminals, and are also being exported to Europe, America, and Southeast Asia.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
Designed a 3.5-inch high-precision temperature control display mainly for a famous HVAC brand, it was made with full-view IPS full lamination technology and the multi-touch operation feature. As per home environment requirements, the ultra-thin bezel and rounded corner design were used, so it is perfectly in line with modern interior decoration styles. The display carries an ambient light intelligent adjustment function that can automatically optimize display brightness and contrast according to indoor lighting conditions, greatly improving user operation experience and energy saving.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
