Technologies like capacitive, resistive, or infrared are used by the touch panel to identify as well as react to the user’s touch. Capacitive touch panels are the most popular in the usage with mobile phones and they work on the principle that the human body is electrically conductive. Resistive touch panels on the other hand consist of two layers of conductor separated by thin space. When one presses on the screen, the two layers get in contact and the location of the touch is identified. Infrared touch panels detect the touch of a user by the using the sensors to notice that the user’s touch has interrupted the infrared light beams.
Product parameters:

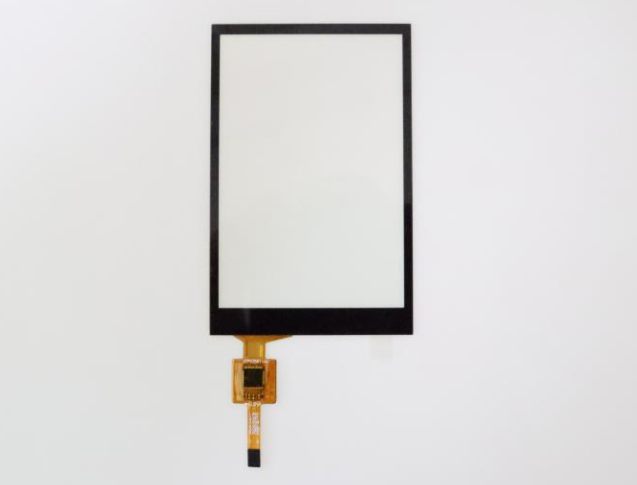

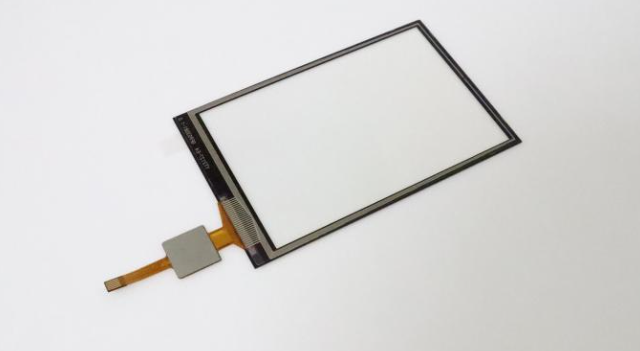

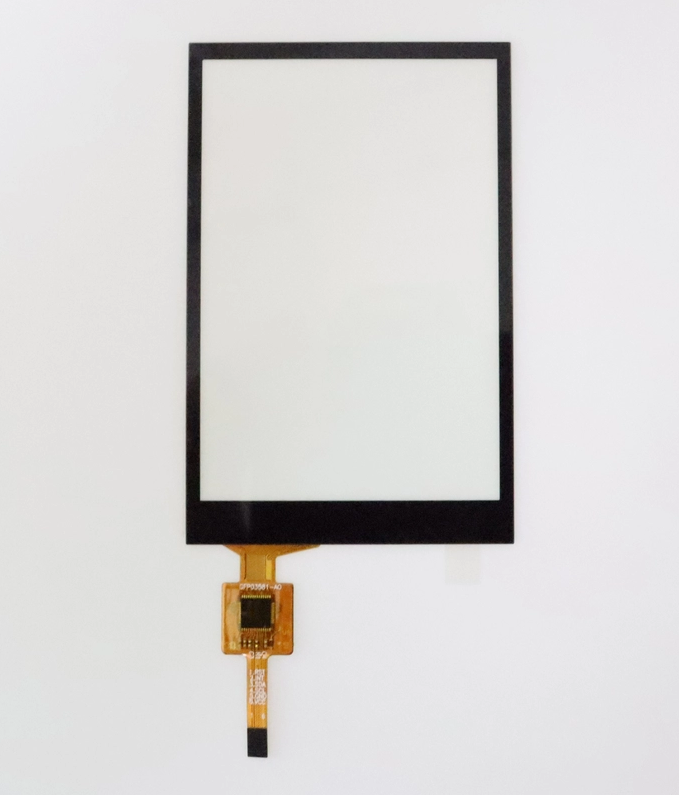

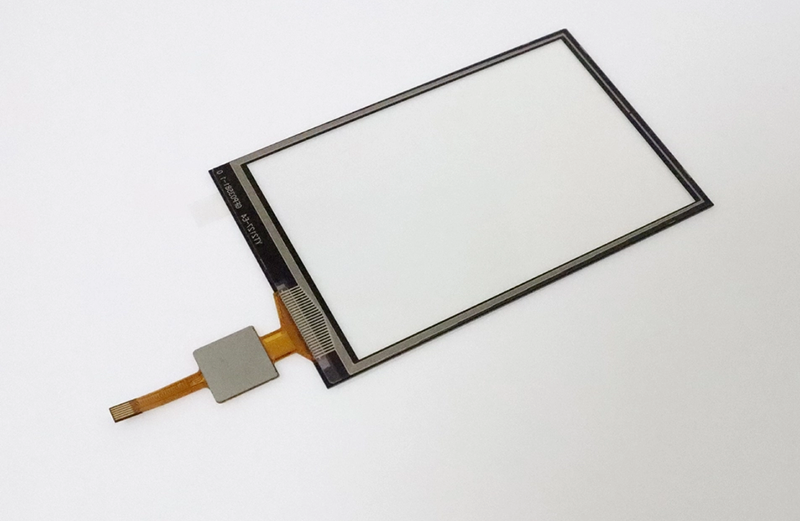

| Product Name | 3.5” Capacitive Touch Screen |
| Brand | YiTai |
| Model | GFP035081-A0 |
| Size | 3.5 inch |
| View Area(mm) | 48.96(W)*73.44(H) |
| Structure | G+F |
| Drive IC | FT6336U |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥80% |
| Surface hardness | ≥6H |
| Unfilled size tolerance | ±0.2mm |
| Operating Voltage | 2.8V-3.3V |
| Operating temperature | -10℃~+60℃ |
| Storage temperature | -20℃~+70℃ |
| Certification | RoHS |
| Warranty | 1-2 years |
Dimensions: There are 3.5 inches diagonally on the touch panel which is relatively small in size and thus very portable as well as the input device which can be used in multipurpose electronic devices.
Modifications: It's possible to adjust the touch panel in terms of shape, size, and layout to make it compatible with different electronic devices.
Response to touch: Sensitivity of the panel to touch is very high, in fact, it also allows interaction through a stylus besides the fingers.
Operate a 3.5-inch touch panel, and you can, without much effort, open a new menu, handle the scrolling to different pages, hit button on the screen and control the program. The panel is here to help the user with an easier operation and, above all, a pretty comfortable one.
Besides offering a very user-friendly interface for different operations, the touch panel is expected to be a long-lasting product in terms of its very tough surface which is scratch-resistant one and withstanding quite a few times of whole device usage without any damage. There is a wide variety of electronic devices that can enjoy the compatibility of the panel including different ones like mobile phones, tablets, car navigation systems, and game consoles.
Signal transmission is made through a 6-pin FPC flexible circuit, in combination with a IIC/I2C serial communication protocol which is a standard. Therefore, only two data lines are necessary to connect to the main control chip, which greatly simplifies the PCB routing complexity while also reducing the system development difficulty. In addition, the I2C interface comes with the capability of strong bus mounting and feature of outstanding anti-interference performance, which make it a particularly appropriate technology for stable operation in complex electromagnetic environments of industry. Furthermore, since FPC cable is highly flexible in terms of bending it allows even a flexible route inside a small device and in result, it increases the overall design freedom of the structure of the whole machine.
Shenzhen Yitai Optoelectronics Co., Ltd. has developed its core capabilities mainly through long-term technological accumulation. It was established in 2014. Over twelve years of R&D one after another, the 28 research team members have a great technological pool of both 20+ percent patented >technologies. Working area of 20,000 square meters, 20 production lines capable of producing 2.5-3 million units monthly, and 320-member strong team have by time developed technical knowledge.
The company has been awarded the status of national high-tech enterprise. It has also made significant strides by aligning itself with the international quality standards and attaining ISO9001 certification. Deriving from technological initiation, ten-thousand-grade dust-free room and fully automatic LCD processing line are points of pride. Besides, the company offers the highest number of TN/HTN/STN/VA modules in the module family totaling 1200 plus and over 100 TFT color screens are also part of ongoing production, LED backlights being customizable.
The company primarily focuses on small-sized displays covering a range from 0.96 to 7 inches. All of them go through strict environmental tests and have been very well accepted in the market for applications such as handheld testers, portable medical devices, smart homes, and IoT terminals. The company exports products to Europe, the United States, and Southeast Asia.
Developed a 4-inch financial-grade encrypted display customized for international banks, composed of a military-grade IPS full lamination touchscreen, aligned with PCIDSS payment security standards. In order to reach the highly demanded financial security levels, we made anti-peeping mechanism and tamper-proof frame to enhance data security on ATMs and other self-service terminals. A smart ambient light adaptation system is included in the panel, which can be set to the original display mode according to the changes in light of the branch, bringing a new level of customer experience and transaction efficiency.
Designed and manufactured a 3.5-inch industrial-grade intercom display solution for a famous communications equipment manufacturer. The unit was featuring a high brightness IPS fully laminated touch screen and was compliant with IP67 requirements for dust and water protection. Besides that, shock-resistant frame and anti-slip feature have been improved based on the special needs of the industry so that reliable operation is ensured even under harsh environments. The screen integrates intelligent light-sensing adjustment technology, which facilitates switching between day and night display modes according to ambient light, thereby greatly improving visibility and work efficiency during outdoor operation.
We provided a 4.3-inch charging pile interactive screen tailored to a famous new energy brand that used high-brightness IPS full lamination technology with the screen also meeting IP65 protection level requirements. We primarily worked on the anti-glare features and extended temperature performance range for operations (-30°C to 70°C), so as to be able to see the screen clearly even in extreme weather conditions. The screen also comprises an intelligent light-sensing adjustment system which can), based on changes in light levels during day and night, automatically optimize the screen brightness level, this feature significantly enhances the user experience when operating the device.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
