Product Description

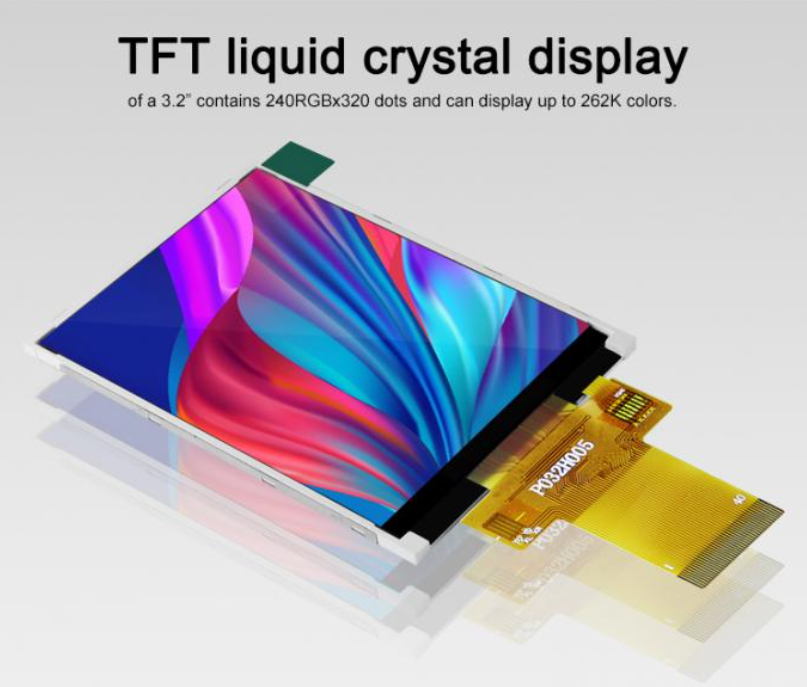

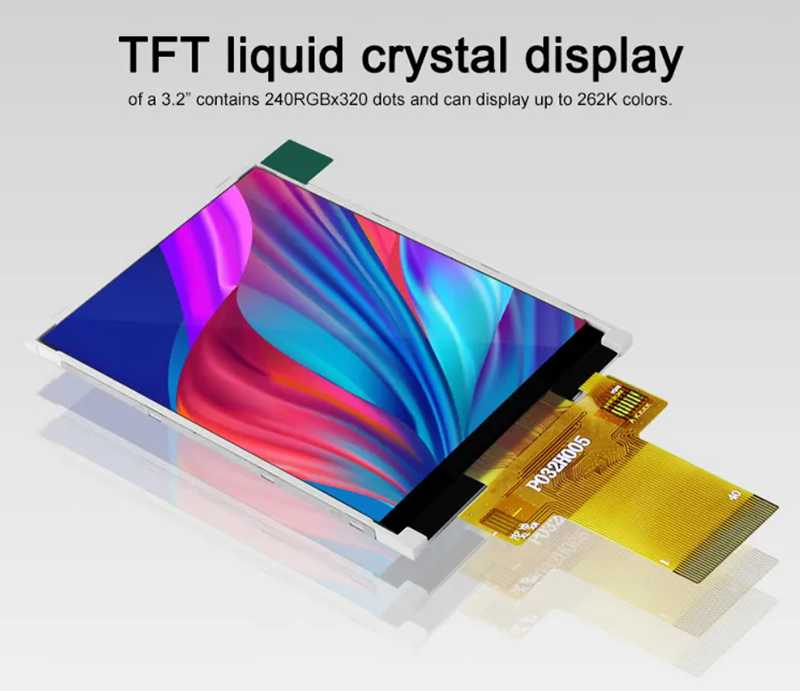

Description of 3.2 inch TFT LCD:
3.2'' TFT LCD module is a kind of display technology that can achieve good quality performance of the display with low power consumption and good durability.
Its extensive usage areas and the ability to be customized make it a perfect solution for various electronic devices.
Parameter:
| Item | Specification | Unit |
| Model | P032H005 | -- |
| Screen Size | 3.2 inch | -- |
| Number of Pixel | 240RGB(H)x320(V) | Pixels |
| Display area | 48.60(H)x64.80(V) | mm |
| Pixel pitch | 0.2025(H)x0.2025(V) | mm |
| Pins | 40 pins | -- |
| Outline Dimension | 55.04x77.50x2.50 | mm |
| Pixel arrangement | RGB Vertical Stripe | -- |
| Display mode | Normally White | -- |
| Viewing Direction(eye) | 12 0'CLOCK | -- |
| Gray inversion direction | -- | |
| Display Color | 262K | -- |
| Luminance(cd/m2) | 270 | nit |
| Contrast Ratio | 500:1 | -- |
| Surface treatment | -- | -- |
| Interface | MCU 8/16bit SPI 3/4Wire | |
| Back-light | LED Side-light type | ―― |
| Drive IC | ILI9341V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Weight | -- | g |
Features and benefits of 3.2 inch TFT LCD:
3.2 inch diagonal size and usually resolution: The 3.2 inch TFT LCD generally has 240x320 pixels and is capable of rendering high-quality images for several uses.
Capable of showing colors: The TFT LCD can display 262,144 colors which results in good and exact reproduction of colors and is suitable for image and video displaying.
Large viewing angle: Usually, a TFT LCD has a large viewing angle, at which the images can be seen clearly without distortion or color changes.
Supports touch screens: TFT LCD can be integrated with capacitive touch screens to allow a user interface with finger gestures such as tapping, sliding, and zooming.
Efficient power use: TFT LCD is known for low power consumption which makes it suitable for the battery-powered devices.
Strong and durable: TFT LCDs are made with durable components and are able to function correctly even after being exposed to shocks or vibrations. It can be used in portable devices, automotive display, and medical equipment.
Variability: The 3.2 inch TFT LCD can be adapted to suit exact application needs including changes to size, resolution, and functions.
This is a top-level visualisation device which is made for industrial control space, smart terminals, and mobile products. It draws upon a 3.2-inch standard size panel in the ILI9341V driver chip.
Specification and installation compatibility of the accurate structure:

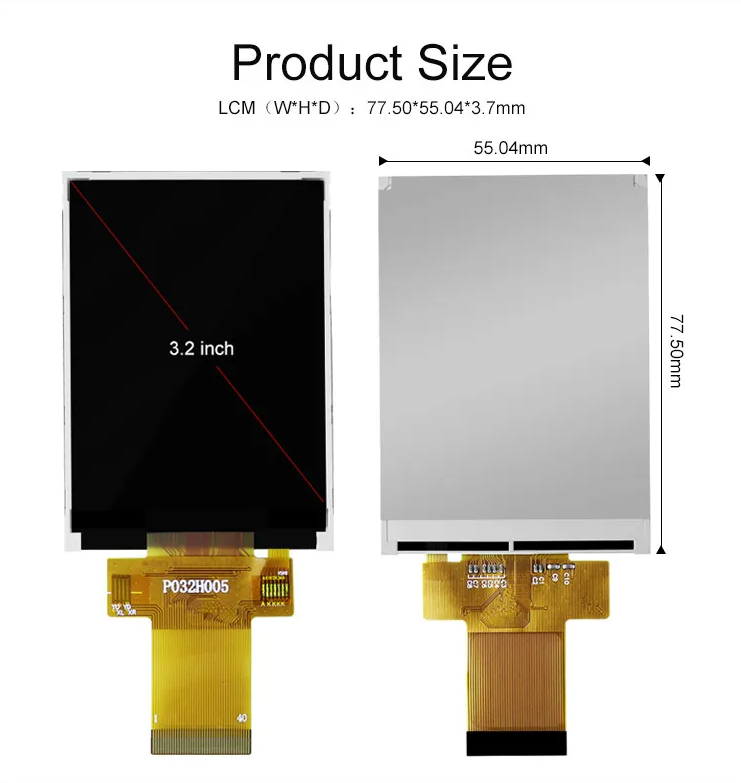

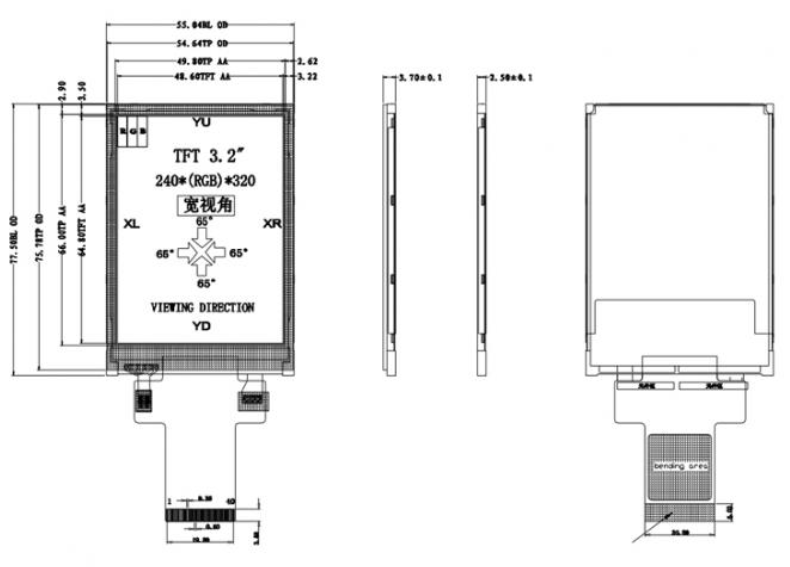

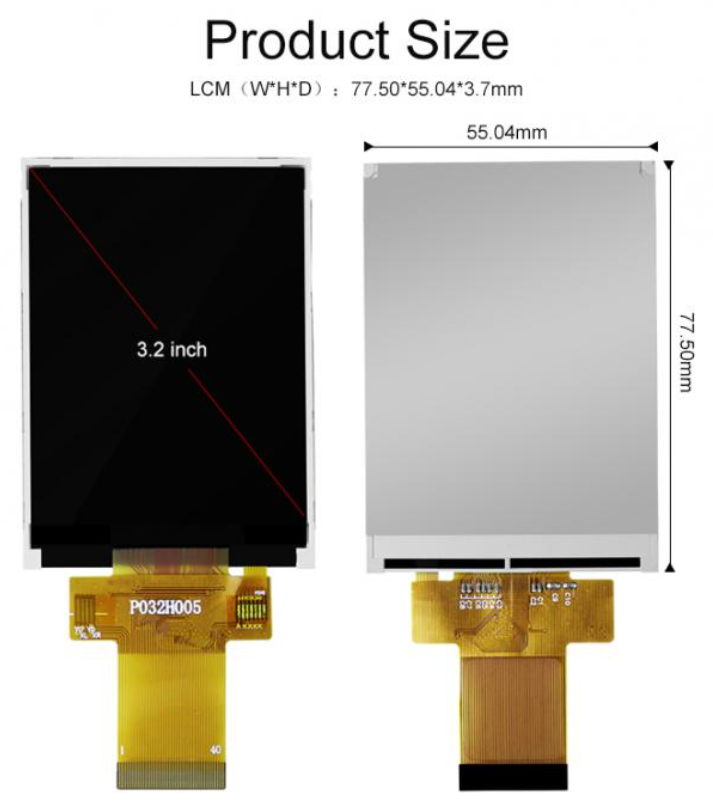

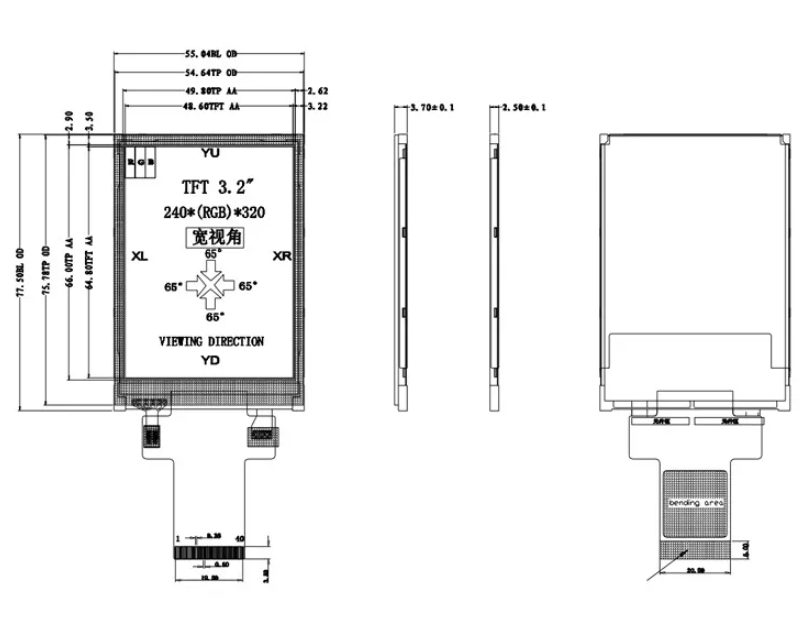

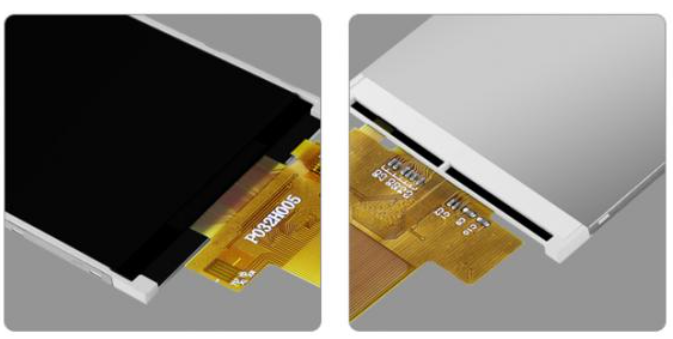

Based on engineering drawing information, module outline size is 55.04mm × 77.50mm × 2.50mm (including structural component thickness 3.70 ± 0.1mm), with LCM body specs being 77.50 × 55.04 × 3.7mm. The active display area (AA) is 49.80mm, the touch panel visible area (TP OD) is 54.64mm, and the TFT active area (TFT AA) is 48.60mm. The mated layers are all very well matched. The FPC cable has dual-out design at the bottom (part number P032H005) and a 40-pin exact layout which makes PCB layout planning and assembly by an automated production line easier. The metal backing panel structure provides heat dissipation and electromagnetic shielding performance.
Real application scenarios:

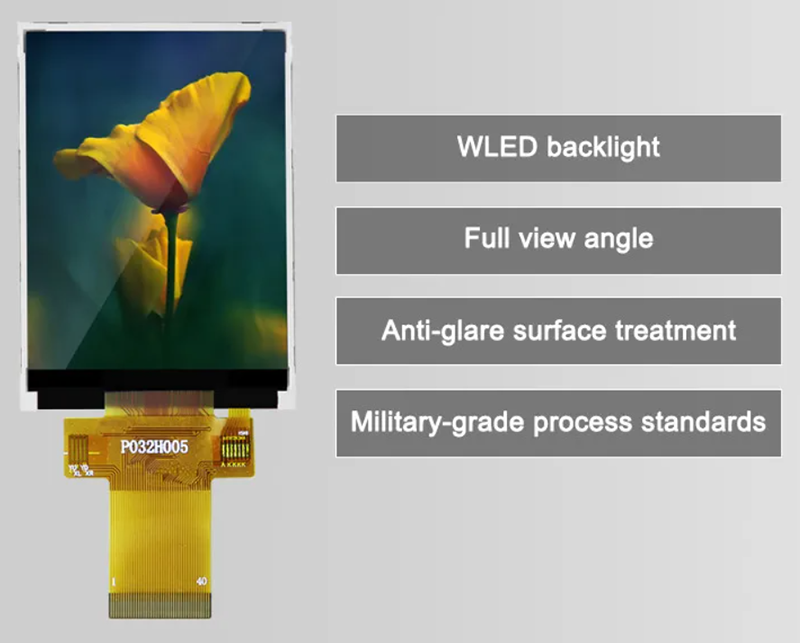

Because of its 3.2-inch moderate size, anti-glare surface processing, wide viewing angle display, flexible multi-protocol interface, and military-grade process standards, the P032H005 precisely satisfies the demand of industrial HMI control panels display, portable medical testing devices, smart home appliance display terminals, in-vehicle auxiliary equipment, and security monitoring systems. It is a display solution that is preferred by mid-to-high-end smart hardware products that put a lot of emphasis on aspects such as display quality, environment adaptability, and supply chain stability.
Decoding the essence of Shenzhen Yitai Optoelectronics Co., Ltd. is like unravelling a number-coded story of the company: 2014 — the year it came into existence; 12 — number of years they have been in the manufacturing business; 320 — total headcount; 28 — R&D staff; 20,000 — area of the factory in square meters; 20 — production lines; 2.5 to 3 million — raise in monthly capacity; over 20 — patents; 0.96 to 7 —Main focused sizes in inches. Along with these figures, one can also find ISO9001 certified standards, the recognition as a national high-tech enterprise, a 10,000-class dust-free purification workshop, and fully automated LCD production lines.
More than a thousand TN/HTN/STN/VA products, a few hundred TFT color screens, and LED backlight services at the customers' disposal constitute the product portfolio of the numerical code. Each model is subjected to high and low temperature, vibration and anti-interference tests to guarantee the successful unlocking of medical, testing, smart home, and IoT devices. The numerical code is sent from Shenzhen to Europe, America, and Southeast Asia and becomes a trust code for worldwide clients.
We made a charging pile interactive screen of 4.3 inches in size for a top brand in new energy sector, using high-brightness IPS full lamination technology, and complying with IP65 protection level requirements.
We specifically improved the anti-glare feature of the screen and the functioning of the device at a wide temperature range (-30 °C to 70°C) as used for the outdoor complex environments so that the display can clearly show the data even under the most extreme weather conditions.
The screen is equipped with an intelligent light-sensing adjustment system able to continuously optimize the display brightness by a combination of day and night light variations, thereby radically improving the user operation experience.
We made a charging pile interactive screen of 4.3 inches in size for a top brand in new energy sector, using high-brightness IPS full lamination technology, and complying with IP65 protection level requirements.
We specifically improved the anti-glare feature of the screen and the functioning of the device at a wide temperature range (-30 °C to 70°C) as used for the outdoor complex environments so that the display can clearly show the data even under the most extreme weather conditions.
The screen is equipped with an intelligent light-sensing adjustment system able to continuously optimize the display brightness by a combination of day and night light variations, thereby radically improving the user operation experience.

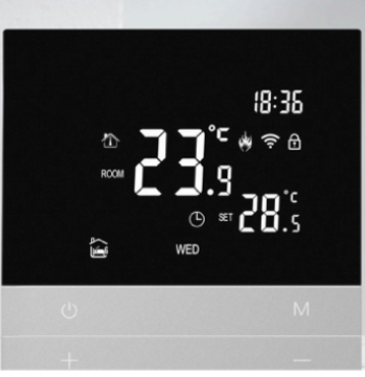

Produced a 3.5-inch high-precision temperature control display completely tailored for a well-known HVAC brand. Using full-view IPS full lamination technology and compatible with multi-touch operation. As per the requirements of the home environment, we have gone for an ultra-thin bezel and rounded corner design which will complement modern interior decoration styles. This display has intelligent ambient light adjustment feature that can automatically alter the brightness and contrast levels of the display to match the indoor lighting conditions, thereby significantly enhancing the user operation experience and energy efficiency.
