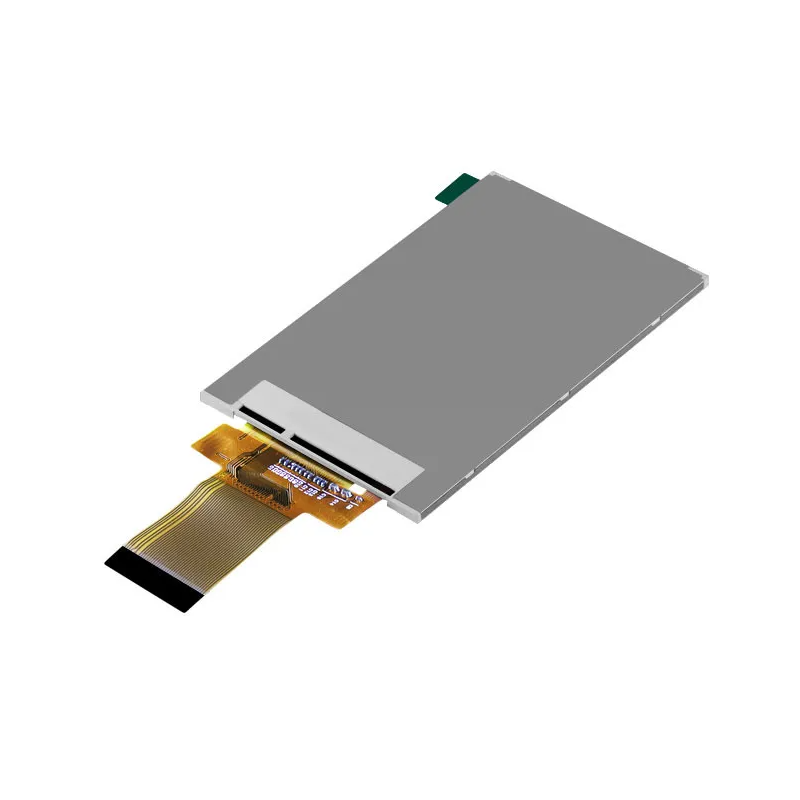

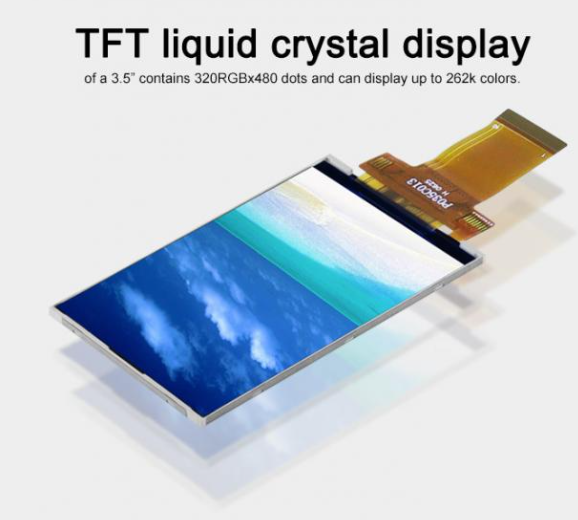

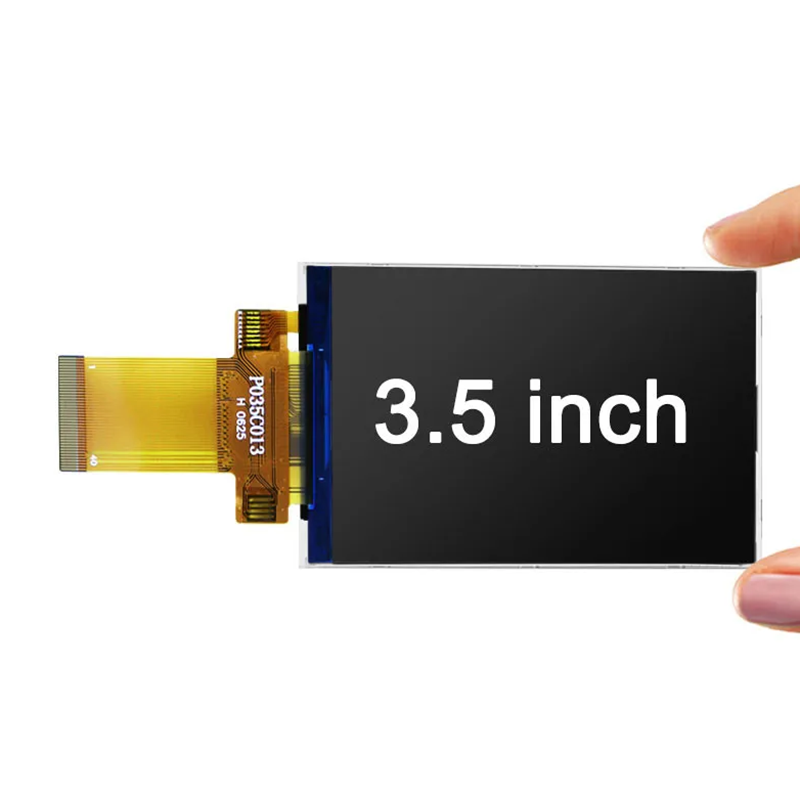

his TFT LCD Module is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 3.5 inch then our lcd is just what you need. Improve your product design by adding our 320 * 480 resolution product. QC department measured the luminance is 450 nits under normal operating.
| P/N | P035C013 |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness(cd/m²) | 450 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9488 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
Structural Design and Assembly Compatibility
The module's outline and size correspond to the 3.5-inch industry-standard specification, whereas the FPC cable adopts a top-exit design (part number P035C013), which makes PCB layout and structural stacking optimization for the entire product easier. The 40-pin interface definition comprises a 16-bit data bus, control signal lines, and backlight drive channels. The pins are very accurately arranged to be compatible with mainstream MCU development boards and industrial control modules both for direct insertion and adapter purposes. The metal backplate structure offers excellent heat dissipation and electromagnetic shielding, which improves the module's operative stability in complex electromagnetic environments.
Application Scenarios and Market Positioning
The P035C013, thanks to the combined advantages of high resolution 320×480, high brightness 450cd/m², 16-bit parallel high-speed interface, and mature ILI9488 ecosystem, is exactly the right fit for human-machine interface industrial HMI applications, portable medical diagnostic devices, control panels of smart home high-end appliances, in-car multimedia display terminals, portable security monitoring devices, and electronic educational whiteboards. In comparison with SPI interface solutions of the same size, the parallel bus architecture offers huge advantages in performance refresh efficiency and dynamic response, thus becoming the preferred display solution for mid-to-high-end smart hardware projects aiming at display quality and interaction smoothness.
Behind a small space lies delicate workmanship. Shenzhen Yitai Optoelectronics Co., Ltd. is dedicated to small-sized displays ranging from 0.96 inches to 7 inches and continuously strives for quality beyond space limitations. The company, established in 2014, currently operates a 20,000-square-meter base, 20 production lines with a monthly production capacity of 2.5 to 3 million units, and a workforce of 320 people including 28 R&D staff members. It has a tens-of-thousands-level cleanroom and fully automated LCD production lines, and it produces high-quality displays in small spaces down to the finest detail. ISO9001 certification is a standard for the intricate workmanship, more than 20 patented technologies overcome the size limitations, and national high-tech enterprise qualifications affirm the value of precision. Having a collection of over a thousand TN/HTN/STN/VA products, and hundreds of TFT color screens and custom LED backlight sources, it has made significant contributions to the small-sized display industry. Each product is subjected to stringent environmental testing to guarantee stable performance in handheld detectors, portable medical devices, smart home control panels, and IoT terminals. The artistry of small spaces begins from Shenzhen and is destined to succeed in the wide markets of Europe, America, and Southeast Asia.
We made a charging pile interactive screen of 4.3 inches in size for a top brand in new energy sector, using high-brightness IPS full lamination technology, and complying with IP65 protection level requirements.
We specifically improved the anti-glare feature of the screen and the functioning of the device at a wide temperature range (-30 °C to 70°C) as used for the outdoor complex environments so that the display can clearly show the data even under the most extreme weather conditions.
The screen is equipped with an intelligent light-sensing adjustment system able to continuously optimize the display brightness by a combination of day and night light variations, thereby radically improving the user operation experience.
Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.
We tailor-made a 4.3-inch industrial-grade instrument display with high brightness and IP65 protection level for a famous power equipment manufacturer, utilizing high-contrast IPS full lamination technology. We have enhanced the dustproof and waterproof structure as well as the wide temperature design (-30°C to 70°C) for the unique requirements of the power industry, thereby ensuring uninterrupted functioning even in highly challenging environments such as substations. In addition, it adopts an adaptive brightness adjustment system that can automatically regulate the display based on ambient light, which greatly increases both data reading efficiency and operational safety while conducting outdoor inspections.
