Product Description
Description:

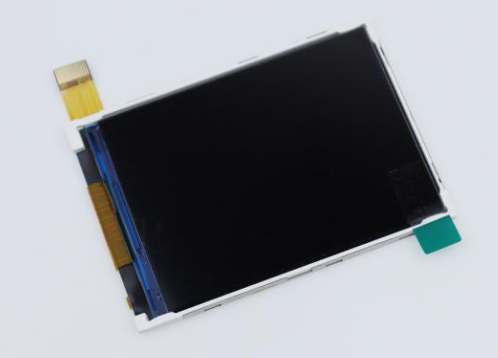

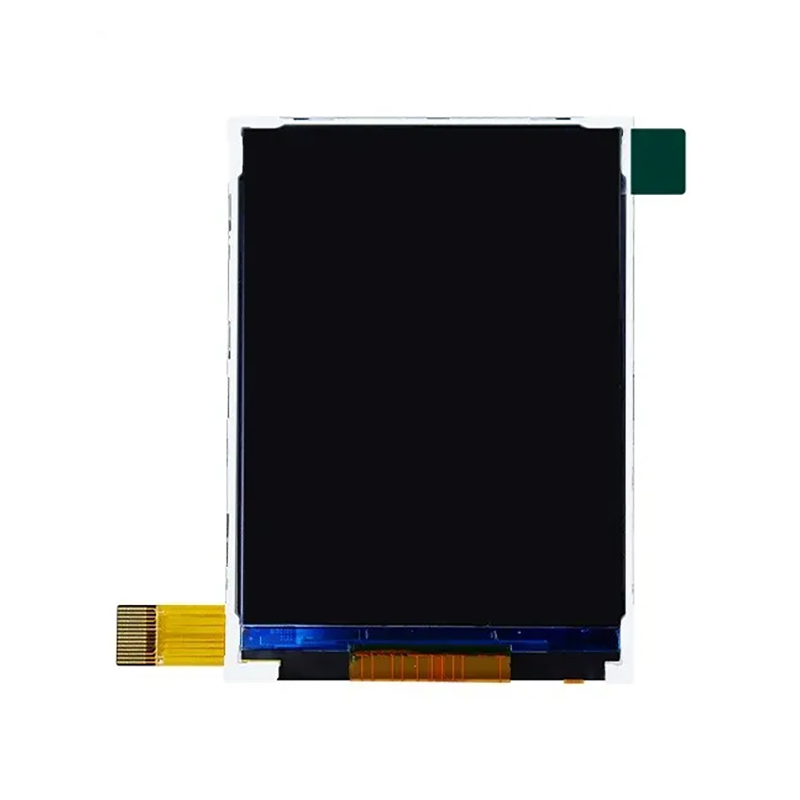

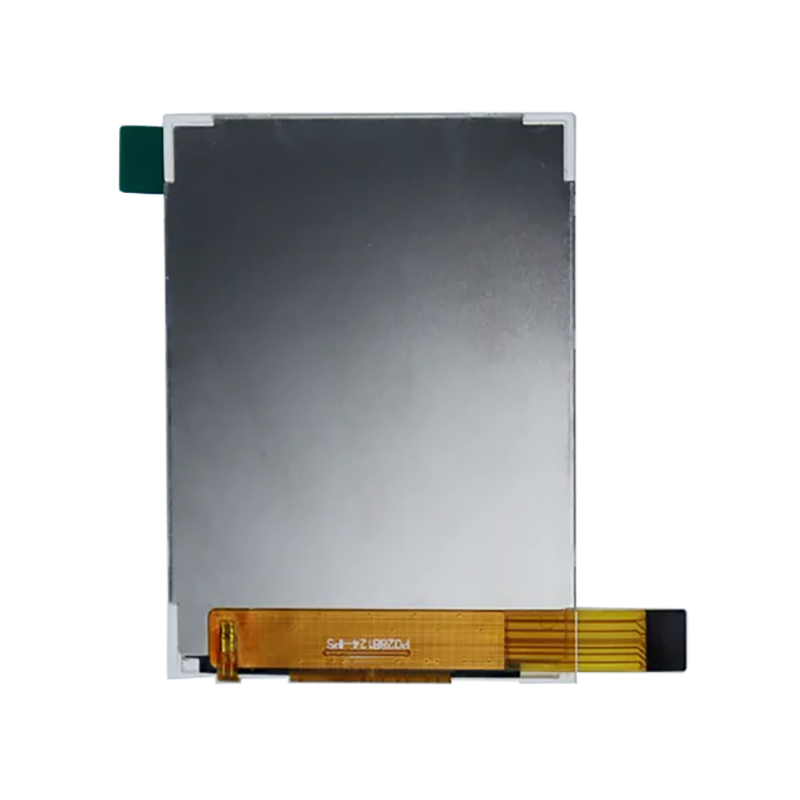

This 2.8-inch TFT LCD display with an SPI interface is equipped with IPS technology. It delivers sharp, clear images with fine color reproduction, which makes it ideal for high-end display applications in compact-size devices.
Parameter:
| Model | P028B124-IPS |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Pin | 14 pins |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | 4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Precision Optics and Structural Specifications

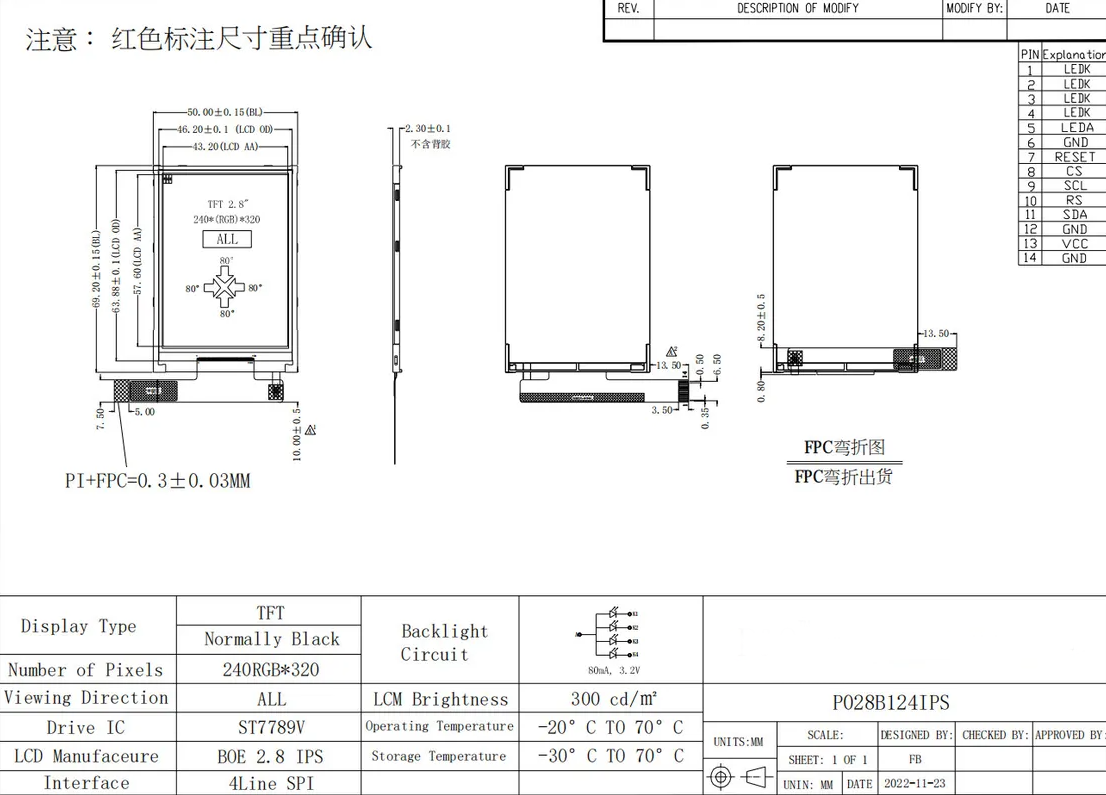

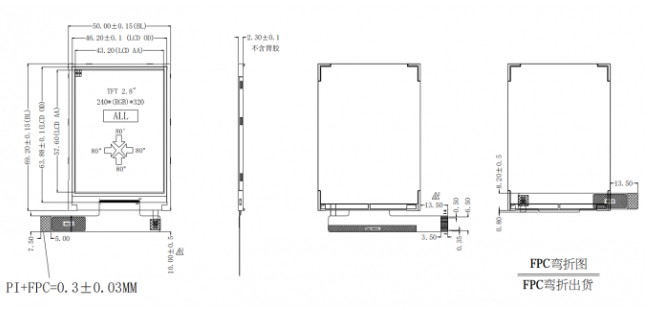

Effective display area: 43.20mm (horizontal) × 57.60mm (vertical), with pixel arrangement adopting an RGB vertical stripe architecture. Physical resolution is 240RGB(H) × 320(V), with a pixel pitch of 0.180mm × 0.180mm. The module boasts of an average luminance level of 300 cd/m², which is quite adequate for indoor usage. Also, the LED side-in backlight has an excellent consistency level. Meanwhile, the power is consumed at a typical operation point of 80mA/3.2V, so you can easily optimize device power system efficiency. The dimensions are strictly controlled at 50.00mm × 69.20mm × 2.30mm (excluding back adhesive), and the ultra-thin thickness is suitable for handheld terminals, portable detectors, and other products that are highly sensitive to Z-axis space.
Precise Application Scenarios
With the combined advantages of IPS full viewing angles, high contrast, simplified SPI interface, and mature driver ecosystem, the P028B124-IPS precisely meets the display requirements of industrial HMI handheld terminals, portable medical testing devices, smart home appliance control panels, in-vehicle OBD diagnostic devices, security access control video intercoms, and high-end consumer electronics. It is the preferred solution for smart hardware projects that pursue display quality, development efficiency, and supply chain stability.
There are few instruments more reliable than time. From only an idea back in 2014, Shenzhen Yitai Optoelectronics Co., Ltd. has successfully evolved into a nationally recognized high-tech enterprise in just over a decade. Its 20,000-square-meter single-building site can monthly churn out 2.5 to 3 million units via 20 production lines - a productivity level that time itself has ratified as nothing short of a medal-winning one. The company’s personnel count stands at 320, out of whom 28 are R&D staff, and together they have amassed 12 years' worth of experience in the field which forms the turning point of the company’s history. The Class 10,000 cleanrooms alongside the mid-to-high-end fully automated LCD production lines have been getting more and more fine under the touch of time. The ISO9001 certificate, more than 20 patented technologies, and status as a Shenzhen science and technology-based SME have come to symbolize the journey of the company as told by time. The company market-wise focuses on products in the size range of 0.96 to 7 inches due to their dominance in the small-size market segment, being equipped with over a thousand TN/HTN/STN/VA types, a large number of TFT color screens, and customized LED backlighting services. Also, witnessing rigorous testing processes of the products involving high and low temperature, vibration and anti-interference, etc., as well as the transformation of products from domestic best-sellers to the global market through Europe, America, and Southeast Asia through export has been the time.
The client’s 3.5-inch HD dashboard display is our customized product. We have used high-contrast IPS full lamination technology to ensure that the screen remains perfectly visible even when exposed to strong sunlight. In line with automotive-grade standards, we have fine-tuned the design of the ultra-narrow bezel and smooth curvature so that it can be the perfect match for the cockpit style. This display comes with an intelligent light-sensing system creating an ambience that is adjusted to the changes in the surroundings. It significantly improves not only the safety of driving but also the comfort of the driver’s eyes.
Manufactured a 5-inch medical-grade touch display for a prominent medical device maker, using a high-quality IPS fully laminated panel that met the B-Class electromagnetic compatibility standards. We mainly focus to comply with medical ergonomics and offer antibacterial bezels and they also have anti-glare design which can provide a stable operation in the complex environment of an operating room. The display object has an ambient light intelligent adjustment system which is capable of automatically optimizing display parameters according to the usage scenario, and this has a positive impact on reducing medical staff visual fatigue and enhancing their efficiency both in diagnostics and treatment.
The 3.5" temperature control display we developed for a leading HVAC brand has been customized with full-view IPS full lamination technology and multi-touch support. In line with the home interior conditions, an ultra-thin bezel and rounded corners have been chosen for the design, so as to be able to fully harmonize with the modern home decoration styles. Thanks to the ambient intelligent light adjustment feature, the display can automatically optimize the brightness and contrast based on the indoor lighting conditions, leading to a very comfortable user experience and also conserving energy.
Core Strength
Modernized Production Base: Equipped with a 10,000-class dust-free purification workshop and LCD mid-to-high-end fully automated production lines to ensure stable and reliable product quality.
Large-Scale Production Capacity: Currently has more than 100 employees, with a monthly production capacity of 2.5 to 3 million units, capable of meeting customers' large-volume order demands.
