A 2.8-inch touch screen comes with many plus points. First of all, it is a compact and lightweight capacitive touch screen which can be easily fitted into portable devices and other small electronic gadgets. Secondly, it has a very high sensitivity and multi-touch functionality, which means the users can communicate with the device by means of gestures and touch. Thirdly, it features a high-resolution display that makes it excellent for showing clear images and writing. Fourth, it is strong and scratch-resistant so even normal usage and small physical abuse will not deteriorate it. Fifth, it offers an intuitive and comfortable user interface through icons, buttons, and menus. In short, the 2.8-inch touch screen is a very functional and dependable piece of equipment that can improve the features and user-friendliness of a whole range of digital products, including portable devices, smart home systems, medical equipment, and factory control tools.

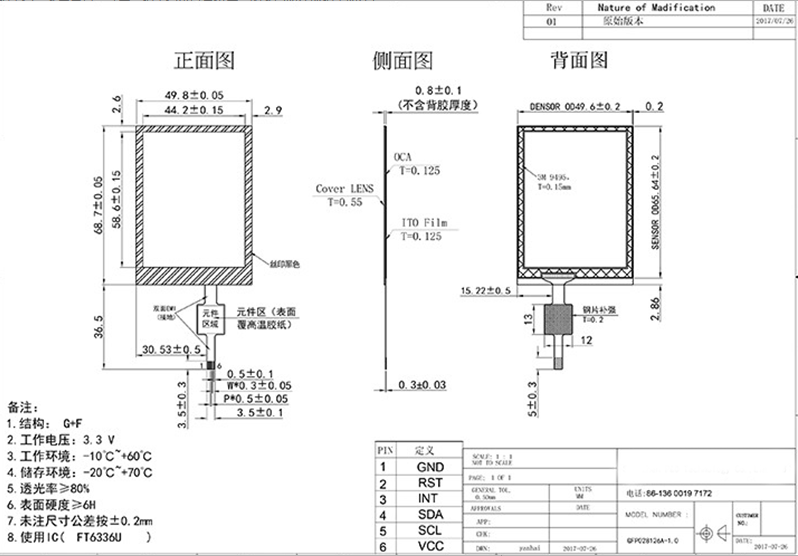

Product Parameter:
| Product Name | 2.8” Capacitive Touch Screen |
| Brand | YiTai |
| Model | GFP028126A-1.0 |
| Size | 2.8 inch |
| View Area(mm) | 40.2±0.15(W)*58.6±0.15(H) |
| Structure | G+F |
| Drive IC | FT6336U |
| PIN | 6 pin |
| Interface | I2C |
| Transmittance | ≥80% |
| Surface hardness | ≥6H |
| Unfilled size tolerance | ±0.2mm |
| Operating Voltage | 3.3V |
| Operating temperature | -10℃~+60℃ |
| Storage temperature | -20℃~+70℃ |
| Certification | RoHS |
| Warranty | 1-2 years |
The sturdiness of a 2.8-inch touch screen can depend on the exact make and model but generally it should be on a par with touch panels of other sizes. The resilience of a touch screen is usually governed by the substance used in the frame and the quality of the manufacturing process. Typically, touch screens constructed from premium grade materials and state-of-the-art techniques will be more robust and less likely to get damaged by day-to-day use and minor physical impacts.
On the other hand, small-sized touch screens like 2.8-inch display may be more vulnerable to getting damaged by falls or blunt force than bigger ones because of their smaller surface area and thinner layers. Nevertheless, this can be prevented by using protective cases or covers, etc., So, in the end, the toughness of a touch screen will be dependent on the particular item and how it is operated and taken care of over time.
Product diversity to meet diverse needs. For this purpose, Shenzhen Yitai Optoelectronics Co., Ltd. is constantly broadening its product range. The company was founded in 2014 and has so far produced more than one thousand TN/HTN/STN/VA display products and a few hundreds of TFT color LCD screens, plus customized LED backlight solutions. With a 20,000-square-meter base, 20 production lines, a monthly output of 2.5–3 million units, and a workforce of 320 including 28 R&D staff, a rich product matrix is being maintained by the company. The company has more than 20 patents, ISO9001 certification, and is listed as a national high-tech enterprise. Support for multi-varieties manufacturing is available through a class 10,000 cleanroom and fully automated production lines. With a focus on the small-size market from 0.96 inches to 7 inches, the products have undergone testing to a high degree and are being used in the medical, inspection, smart home, and IoT fields; they achieve strong sales both at home and abroad.

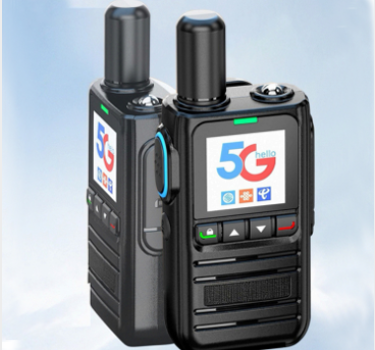

Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
With a high-resolution IPS fully laminated pane, a 5-inch medical-grade touch display was custom-developed for a leading medical device manufacturer, meeting EM Class B requirements. To align with medical ergonomics requirements, which are very strict, we designed antibacterial bezels and anti-glare surface to be used in operating rooms and other complex environments, where the equipment needs to be running. The display has an intelligent ambient light adjustment system embedded in it which is capable of automatically adapting the screen parameters in conformity with the usage scenario so that the medical staff's eyes remain comfortable and their efficiency in diagnosis and treatment is enhanced.
Developed a 4-inch financial-grade encrypted display customized for international banks, composed of a military-grade IPS full lamination touchscreen, aligned with PCIDSS payment security standards. In order to reach the highly demanded financial security levels, we made anti-peeping mechanism and tamper-proof frame to enhance data security on ATMs and other self-service terminals. A smart ambient light adaptation system is included in the panel, which can be set to the original display mode according to the changes in light of the branch, bringing a new level of customer experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
