Product Description
Parameter:
| Model | P028B123-10-IPS-CTP |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Pin | 10 pin |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Outline Dimension | 50.00x69.20x3.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | 4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |

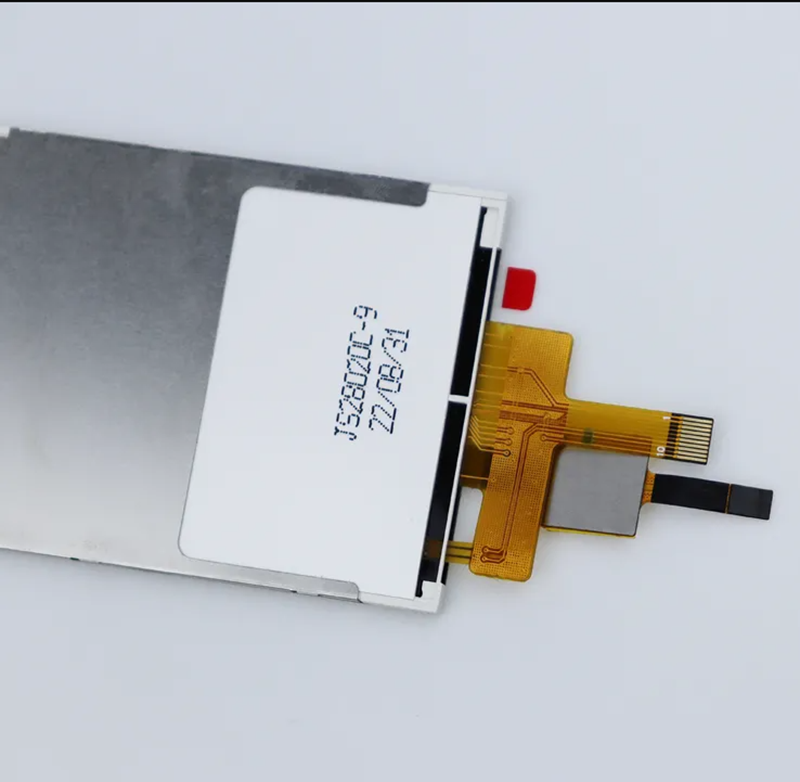

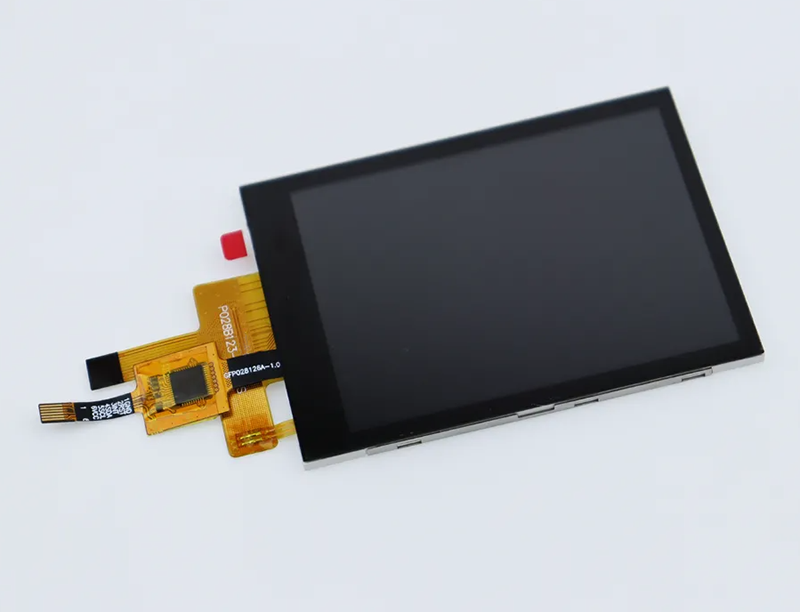

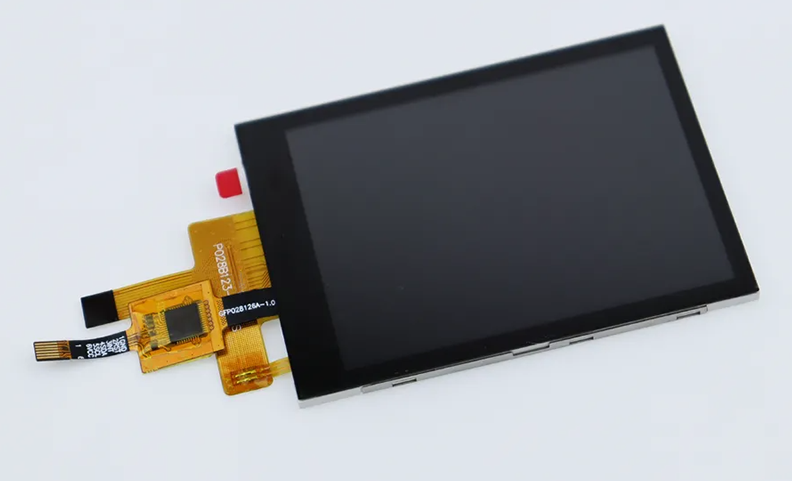

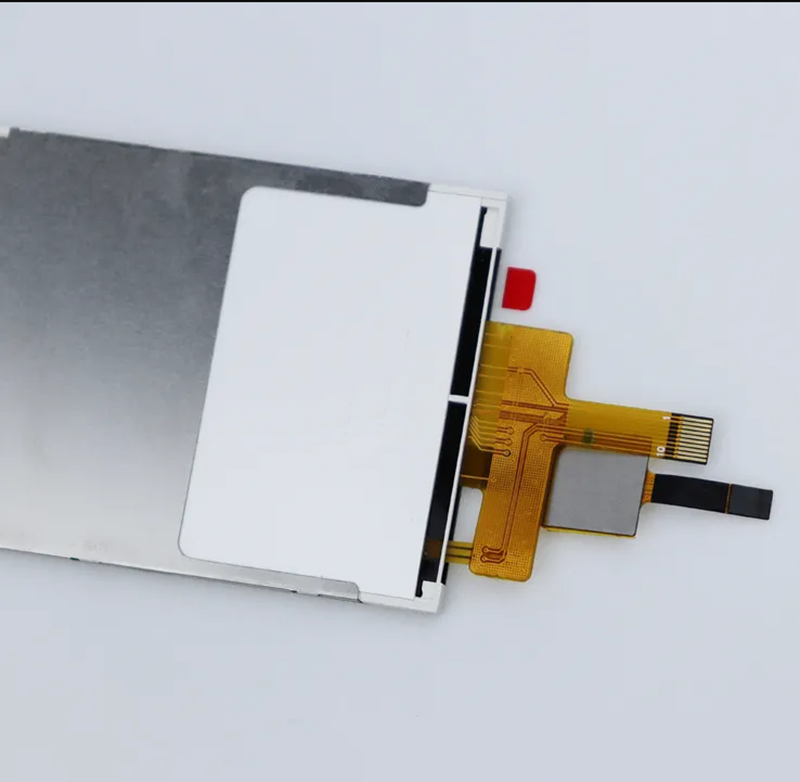

This 2.8-inch TFT LCD module integrates IPS technology and a capacitive touch panel (CTP) for a highly responsive touch experience coupled with visually striking, accurate-display.
This kind of product can serve in applications ranging from home use to the harsh environment of work places.
The module with a golden size 2.8-inch, IPS full-view technology, and 15-pin simplified interface is able to precisely target niche markets such as portable medical test devices, industrial PDA handheld terminals, smart door lock visual peep-holes, in-vehicle OBD diagnostic tools, and display panels for high-end e-cigarettes. Full-view feature completely solves the problem of traditional LCDs that turn white when viewed at an angle. Integrated touch design can save customers many headaches in managing SKUs in their supply chain, and standardized interface definition really helps shorten development cycles from prototype verification to mass production ramp-up. It is an excellent choice for smart hardware projects that are aiming at a sweet spot of a balance between display quality and compact structure.

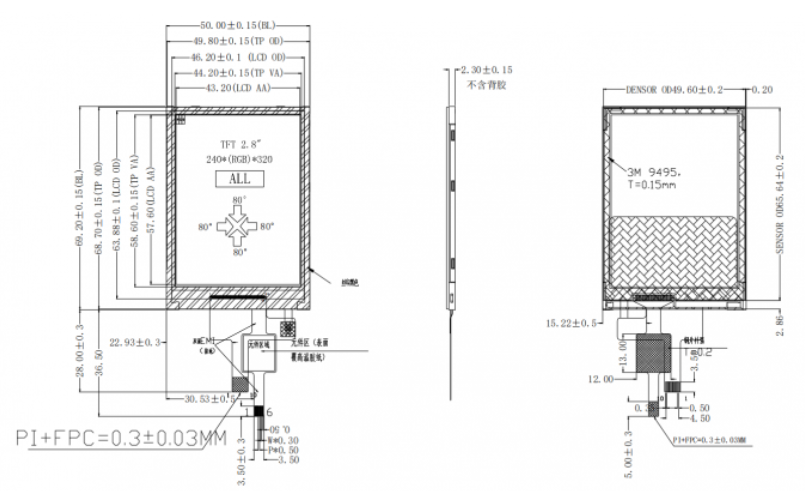

Exact structural dimensions and display specifications
By analyzing engineering drawing data, one can tell that overall module dimensions are 50.00mm × 69.20mm (tolerance ±0.15mm), and thickness is only 2.30mm (not including the adhesive layer). The very slim design allows easy integration into handheld devices and wearable products where space is a critical constraint. Active display area (LCD AA) is 43.20mm × 57.60mm, while the touch panel viewable area (TP VA) is 44.20mm × 58.60mm, with touch layer a bit larger than the display area to ensure tactile contact on edges during touch operations reliably and sensitively. Physical resolution is 240 × RGB × 320, a standard RGB vertical stripe pixel arrangement is used so as to achieve very fine text renderings and icon sharpness on a 2.8-inch panel.

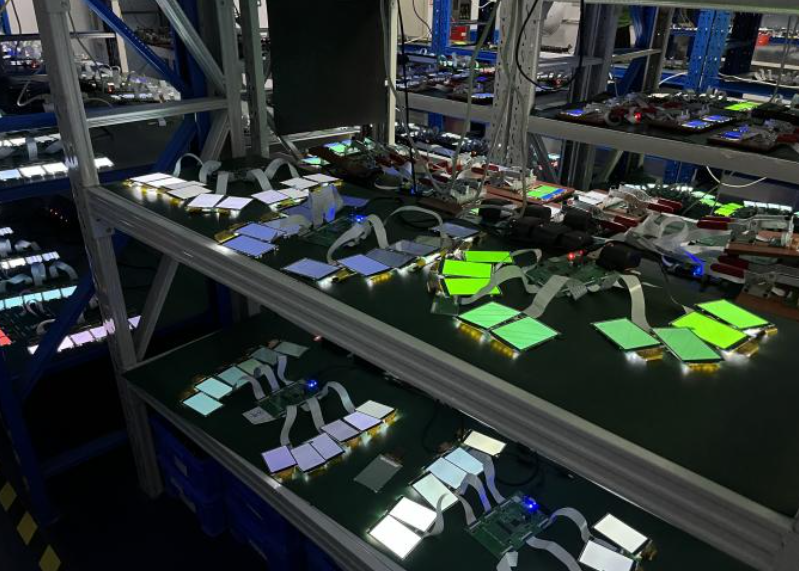

Having a clear goal like this, Shenzen YiTai Optoelectronics Co., Ltd. is moving forward to meet future challenges. The company goal: to be the most reliable partner in the global small-size display segment. Since 2014, they have developed a 20,000 square meter base, 20 production lines with the monthly output capacity at 2.5 to 3 million units, and 320 people, including 28 R&D staff. Achieving the vision has been made possible through phases. ISO9001 certified, having more than 20 patented technologies, recognized as a national high-tech enterprise, having a 10,000-level cleanroom, and fully automated production lines are the phased achievements of the vision. There are more than a thousand TN/HTN/STN/VA products, besides over one hundred kinds of TFT color screens, and custom LED backlights, the company focuses on small-size displays from 0.96 inches up to 7 inches. Products are made to really last as they are subjected to high and low temperature, vibration and anti-interference tests. They find applications in the handy testers, portable medical equipment, smart home control panels and IoT terminals. The products are sold both at home and abroad.
We manufactured a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer with the latest high-brightness IPS fully laminated touch screen, also fulfilling IP67 protection requirements. So, we enhanced the shockproof housing and anti-slip surface texture, the features most likely to be helped by the industry, and thus guaranteed dependable functioning even in very tough conditions. Moreover, the screen was equipped with a smart light-sensing adjustment feature that allows it to automatically change the display mode from day to night and vice versa, depending on the surrounding light, greatly improving visibility and work efficiency when used outside.
With a high-resolution IPS fully laminated pane, a 5-inch medical-grade touch display was custom-developed for a leading medical device manufacturer, meeting EM Class B requirements. To align with medical ergonomics requirements, which are very strict, we designed antibacterial bezels and anti-glare surface to be used in operating rooms and other complex environments, where the equipment needs to be running. The display has an intelligent ambient light adjustment system embedded in it which is capable of automatically adapting the screen parameters in conformity with the usage scenario so that the medical staff's eyes remain comfortable and their efficiency in diagnosis and treatment is enhanced.

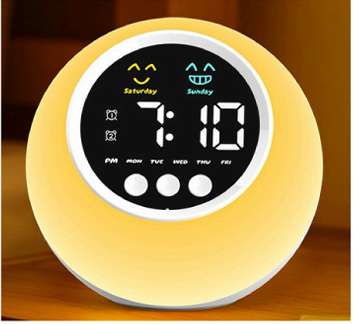

Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
