Product Description

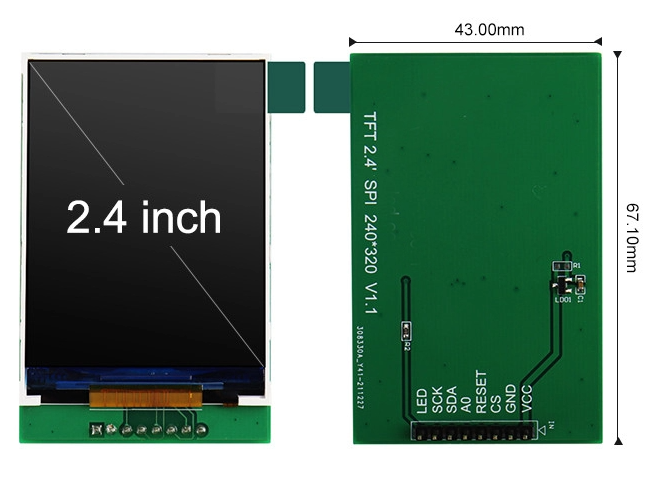

The P024C117-B is a 2.4-inch TFT LCD module with a resolution of 240×320 and a brightness of 260 nits, making it clearly readable in indoor environments. Instead of solving full-view-angle problems comprehensively, it precisely tunes the 12 o'clock direction optics, the scenario when users looking down, the screen brightness, contrast, and color saturation are at their best; when moving away from this angle, the performance of the product decreases gradually, not abruptly. This 'directional enhancement' product development plan eliminates the cost increase of full-view-angle technologies while still providing the best visual experience in a user's main scenarios.
| P/N | P024C117-B |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
This type of 4 Wire SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V2. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

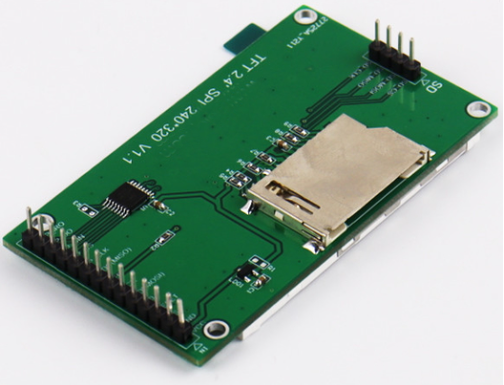

Personally, I also like the 'plug and play' approach in hardware integration. The display panel, driver circuit, and the power of backlight are all put together in one small PCB. It only takes 18 pins for the 4-wire SPI interface and pin functions are very clear: VCC, GND, SCK, SDA, RESET, CS, LED—a mere seven wires are enough to switch the screen on. The driver IC ST7789V2 is a market-tested component and along with that, there are a lot of driver libraries for popular platforms Arduino, STM32, and ESP32. However, from wiring to showing the first line of text can be done in less than 10 minutes if one has the right tools and knowledge.
Every onboard design detail exudes the engineers' thought process: the LED backlight pin is separately made available, supports PWM dimming, and can automatically modify brightness according to ambient light sensor; the RESET pin performs software reset and hardware power-on reset so it is possible to quickly recover from an abnormal state; there are four mounting holes reserved at the PCB corners so that M3 screws can be directly tightened without additional brackets. Therefore, these small design changes actually save a lot of labor during large scale installations.
Shenzhen Yitai Optoelectronics Co., Ltd. is strongly driven by their excellent R&D capabilities. With a staff of 28 highly qualified R&D members and possession of more than 20 patented technologies, the company is continually bringing out new commodities. The company, which started operations in 2014, has earned the status of national high-tech enterprise and is continuously achieving excellent R&D outcomes. Along with 20 production lines and a 20,000-square-meter factory, it can produce 2.5 to 3 million pieces monthly at maximum capacity, and 320 workers change the R&D results into industrialized products. It holds ISO9001 certification, is outfitted with a ten-thousand-level cleanroom and fully automated LCD production lines, and has a pilot platform for R&D. The products are over a thousand TN/HTN/STN/VA models and just over a hundred TFT color screens, with customizable LED backlighting. Its specialty is in small-sized displays from 0.96 to 7 inches, with twelve years of R&D knowledge and many product applications in medical, inspection, smart home, and IoT fields, and are exported overseas.
Customizing a 2.8-Inch Minimalist Clock Display Using Low-Power IPS Full Lamination Technology and Wide 180° Viewing Angle Support for a Well-Known Home Brand.Taking into account the bedroom usage scenarios, we perfected the ultra-thin, borderless design, and the soft light guide structure to not only suit the appearance of modern homes aesthetically but also fulfill the functionality needs. Smart light-sensing adjustment system is built into the screen that can automatically switch display modes as per changes in daylight and at night automatically shift to soft light mode, thus making it possible for the time to be vividly seen without disturbing the sleep quality.
A 4.3-inch charging pile interactive screen was customized for a well-known new energy brand by employing high-brightness IPS full lamination technology and at the same time, the working environment of the product is able to meet the requirements of IP65 protection level. We especially worked out the design of anti-glare and the combination of wide-temperature operation performance (-30°C~70°C) for complex outdoor environment to be able to guarantee clear display under different weather conditions. The screen has a built-in smart light sensor system that adjusts display brightness automatically according to day and night light changes, thus immensely improving the user operation experience.

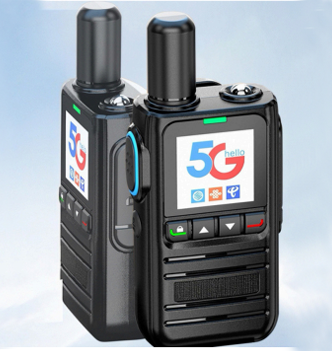

We manufactured a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer with the latest high-brightness IPS fully laminated touch screen, also fulfilling IP67 protection requirements. So, we enhanced the shockproof housing and anti-slip surface texture, the features most likely to be helped by the industry, and thus guaranteed dependable functioning even in very tough conditions. Moreover, the screen was equipped with a smart light-sensing adjustment feature that allows it to automatically change the display mode from day to night and vice versa, depending on the surrounding light, greatly improving visibility and work efficiency when used outside.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
