4.3 Inch 5 Inch Lcd Controller Board Pcb 480x272 40 Pin

Product Details

The appearance, size and function of the PCB products are exactly the same, but the LCD screen models driven are different:

Interface function description

Features

1. Mirco USB power supply interface, 5V standard power supply, needs to be greater than 1.5A.

2. No buttons and no remote control. It will automatically switch to HD-MI channel after plugging in HD-MI.

3. 1 channel HD-MI signal input, and this IC supports HD-MI 1.2

4. HD-MI is a high-quality MINI gold-plated base.

5. The screen interface adopts high-quality gold-plated connector 40PIN-AT043TN24.V.1 definition.

6. USB --DM+DP signal can be externally expanded.

7. The driver board adopts a special circuit design that can drive LED backlights within 10V and supports a maximum current output of 180MA.

9. Support TTL signal output.

It can support common 40PIN 4.3 and 5 inch LCD screens such as AT043TN24.V1

This driver board adopts full SMD technology. The relevant parameters are designed according to industrial standards, and the shipping standards are according to civilian standards.

10. This driver board uses a double-sided gold-plated special FPC seat. The FPC does not distinguish between upper and lower connections and can be used directly.

Transportation, storage, usage requirements

1. Do not apply heavy pressure or bend deformation.

2. Anti-static and water resistant

3. Relative humidity <80%

4. Operation Temperature: -1~60℃

5. Operation humidity: 0~40℃

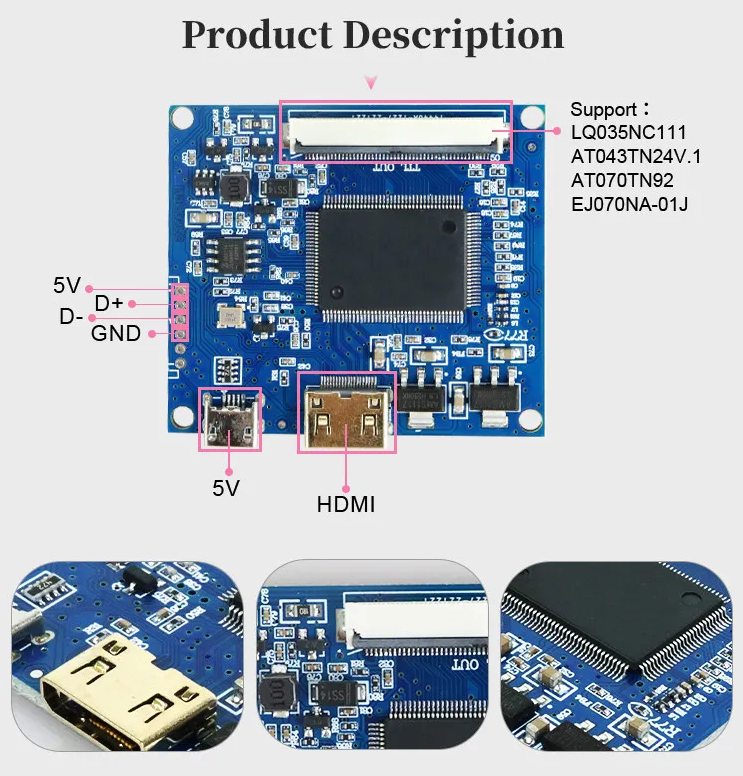

J4-IN Power Connector

HD-MI Connector

MIRCO USB Connector

CON4 --This interface does not distinguish between the upper and lower connections of the LCD screen FPC.
