Product Description
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V2 is the driver IC of the tft lcd.
The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

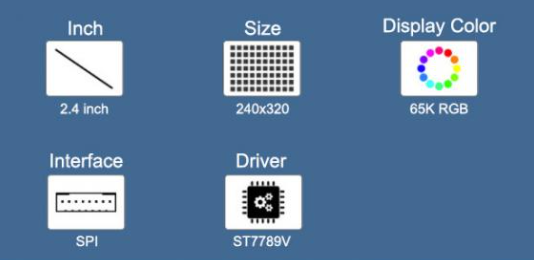

| P/N | P024C117SD |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |

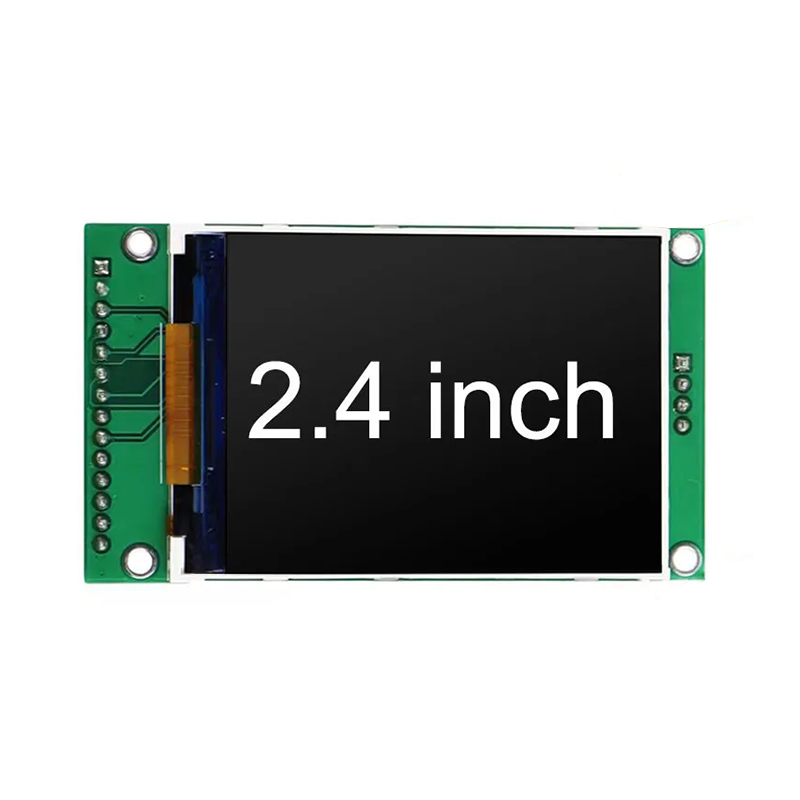

The P024C117SD is a 2.4-inch TFT LCD display module with a resolution of 240×320 and a brightness of 260 nits, making it clearly readable in indoor environments.Making use of its 65K RGB true color its UI designs have the potential to be not just black, white, and gray anymore. For example, by using red, green, and blue for status lights, priority can be easily identified, color gradients can make data charts more readable, and brand logos can be faithfully reproduced in corporate colors—color functions as an amplifier for the efficiency of information transmission.
In fact, real comfort is derived from the integrated design that lies behind it. The display panel, driver chip, power circuit, and backlight control have all been packed into one small PCB, and the 4-wire SPI interface only needs an 18-pin header for connection. Pin functions are very well marked: VCC is power, GND is ground, SCK and SDA are data, CS is chip select, RESET is reset, and LED is backlight control—seven wires, ten minutes, and the screen lights up. Thanks to the development of the driver IC ST7789V2, Arduino has the Adafruit library, STM32 has HAL examples, ESP32 has Arduino_GFX support, and Raspberry Pi Pico has the Pico-vga project reference—all the pieces in your programming puzzle.

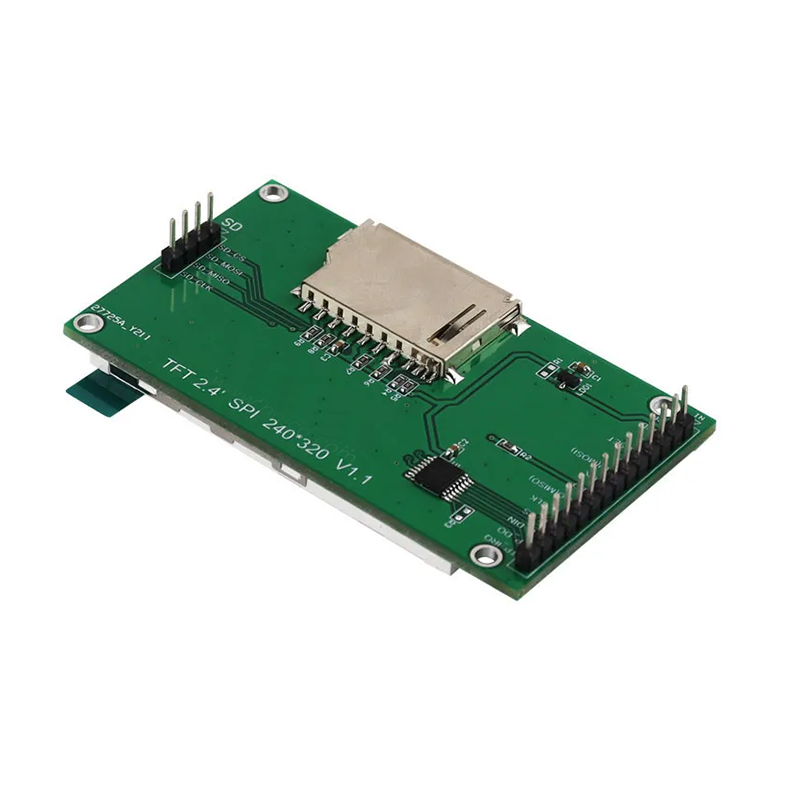

The structural details also take the forms of mounting holes located at the PCB corner to be compatible with the use of M3 screws, a 2.54mm standard pin spacing that fits breadboards and Dupont wires, and the FPC ribbon cable being fixed via a board-to-board connector to avoid the poor contact caused by repeated bending. Thanks to this type of design, a circuit board in the prototype verification stage can be directly used for small batch trial production without any re-fabrication.
Capability Customization: The Infinite Possibilities of Small Screens
The core competitiveness of Shenzhen Ether Optoelectronics is fundamentally our customized development capabilities that are collaborative to the depths. We do see ourselves as more than just a screen supplier. By integrating ourselves into your product design, the first line of communication happens with the engineering team that you get working on your product from the conceptual stage, understanding the application scenarios and requirements functionally, then together we transform unique ideas, complicated specifications, and even very limited space into stable, reliable, high-quality display modules that are plug-and-play.

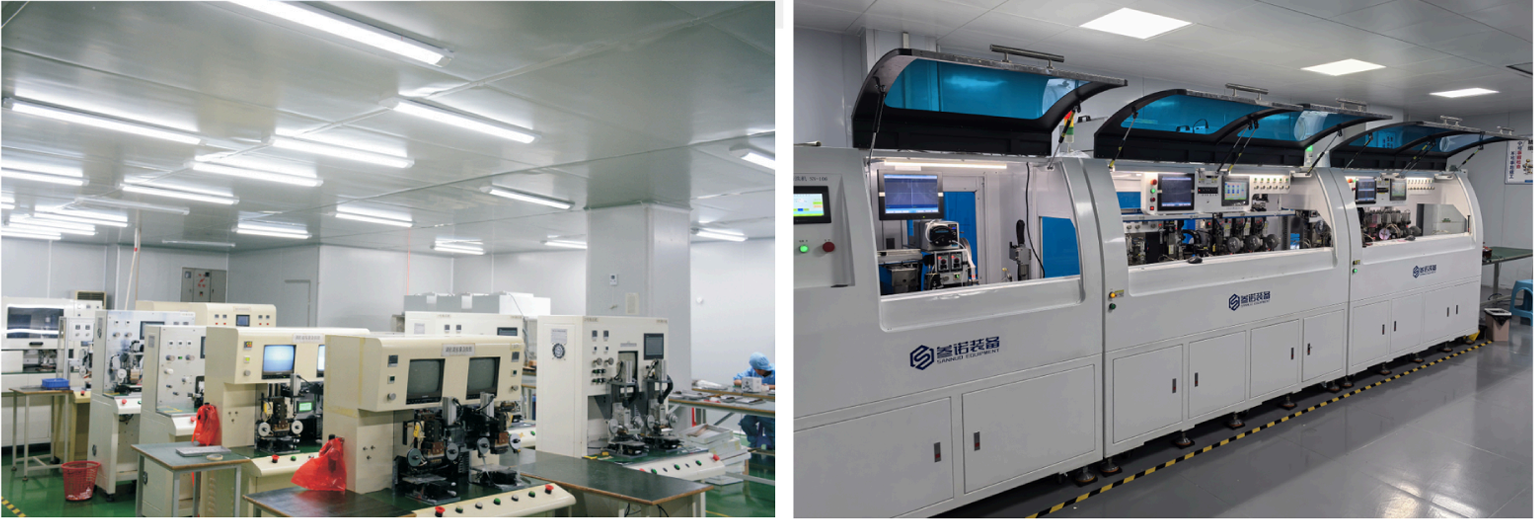

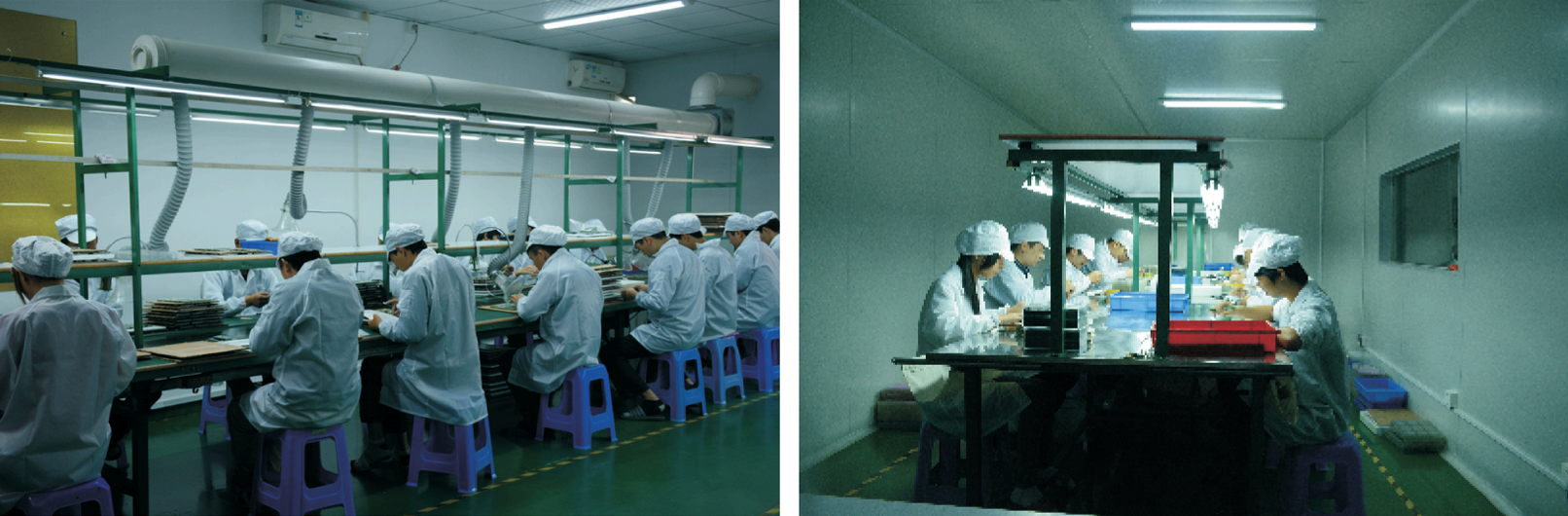

Technological innovation is a key for keeping the company up to date with market demands. Shenzhen Yitai Optoelectronics Co., Ltd. was established in 2014 and since then, it has developed a business strategy that closely aligns with display technology. The company's 28-member R&D team has obtained more than 20 patents, constantly improving product designs. Within a 20,000-square-meter facility, there are 20 production lines with a monthly capacity of 2.5 to 3 million units, a 320-member team supports the introduction of new technologies. The company has received the status of national high-tech enterprise and has successfully passed ISO9001 certification. Comprehensive technological environment: Class 10,000 cleanrooms and fully automated LCD production lines. Product range of over a thousand TN/HTN/STN/VA products and more than a hundred TFT color screens with the possibility of LED backlight customization. Concentrating on the 0.96-inch to 7-inch segment, fourteen years of experience, the products are subjected to strict testing, and along with extensive local market applications in the medical, inspection, smart home, and IoT sectors, they are also exported to foreign markets.
The core competitiveness of Shenzhen Yitai Optoelectronics comes from our deeply collaborative customized development capabilities. We are not just a screen supplier, but an extension of your product design. From the concept stage, our team of engineers works closely with you to thoroughly understand the application scenarios and functional requirements, transforming unique ideas, complex specifications, and even stringent space constraints into stable, reliable, plug-and-play high-quality display modules.
Core Strength

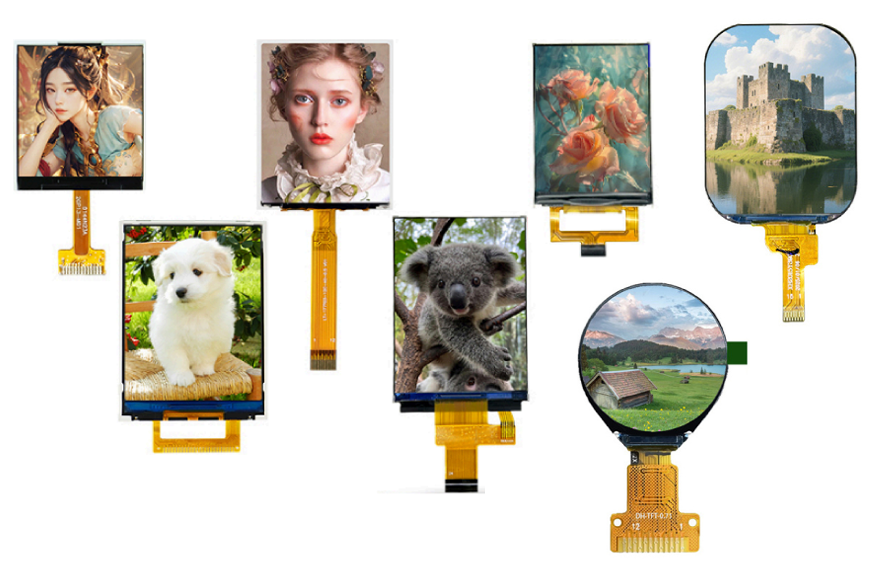

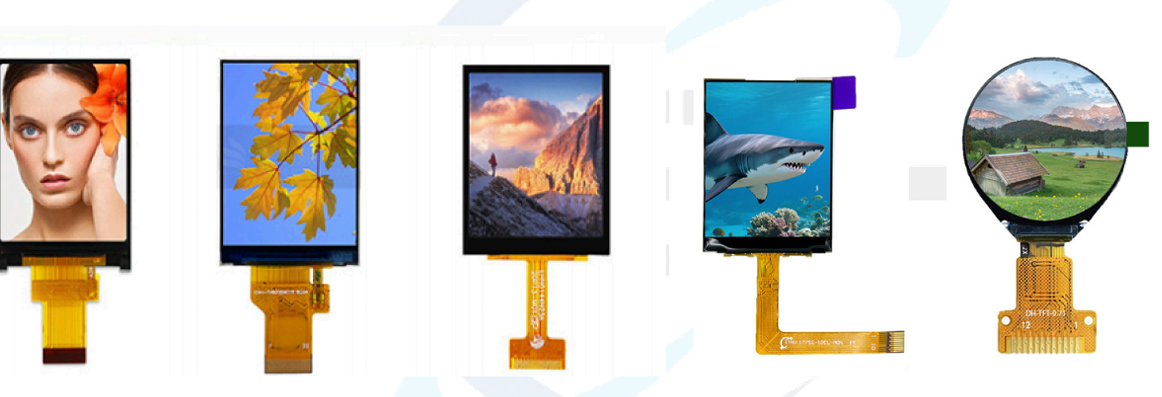

Rich Product Line: Successfully developed over a thousand TN/HTN/STN/VA display products and hundreds of TFT color LCD screens, providing customized LED backlight services covering a variety of application scenarios.
Core Product Features
1. High PPI, Clear and Sharp
Up to 800*480, pixel density over 250 PPI, high pixel density, displaying fine details without graininess.
2. High Brightness
300-1000 nits, clearly visible under strong light, meeting visibility requirements in outdoor or high-light environments.
3. Wide Viewing Angle
Using IPS/FFS technology, viewing angle up to 160°~178°, no color shift when viewed from the side.
4. Wide Temperature Operation
Supports industrial temperature range of -30°C~85°C, suitable for complex environments.
5. High Integration, Rich Interfaces
Supports SPI, MCU, RGB, MIPI and other interfaces, compatible with mainstream host chips, easy to drive.
6. Slim and Compact, Space-Saving
Compact module structure, thickness can be less than 2.0mm, easy to integrate into portable and small devices.
7. Long Lifespan
LED backlight life over 50,000 hours.
8. Flexible Customization
Supports customization of FPC length, pin definition, and interface position, meeting various structural layout requirements.
We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.
Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.
Customized a 3.5-inch high-definition dashboard display for the client, Using high contrast IPS full lamination technology we were able to ensure that the display is seen clearly even in the presence of bright light. In compliance with automotive grade requirements we remodeled ultra narrow bezel and curved design so they perfectly complement the cockpit interior style. An intelligent light-sensing adjustment system has now been integrated into the screen which is capable of automatically adjusting brightness and color temperature with reference to the ambient light which significantly contributes to driving safety and visual comfort.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
