Product Details
P/N: | P024C117-B | Size (inch): | 2.4 |
Resolution: | 240*320 | Brightness (cd/m²): | 260 |
Interface: | 4 Wire SPI | Driver Ic: | ST7789V2 |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20cm *30 cm *40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T,L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

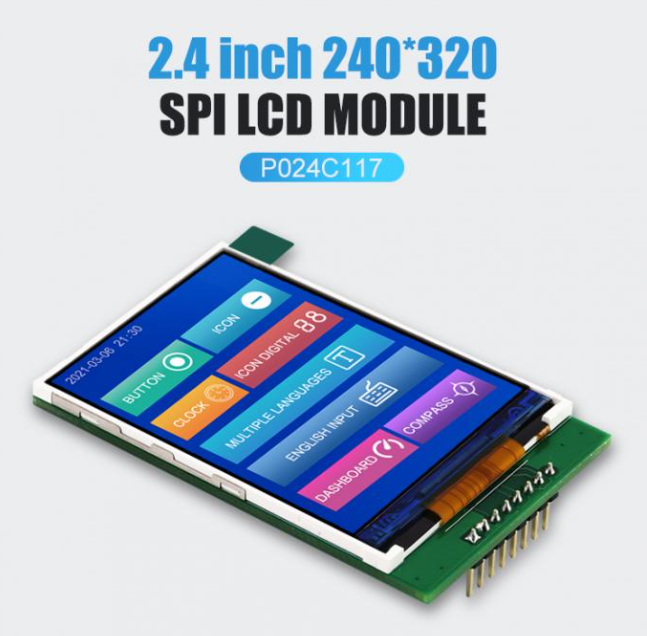

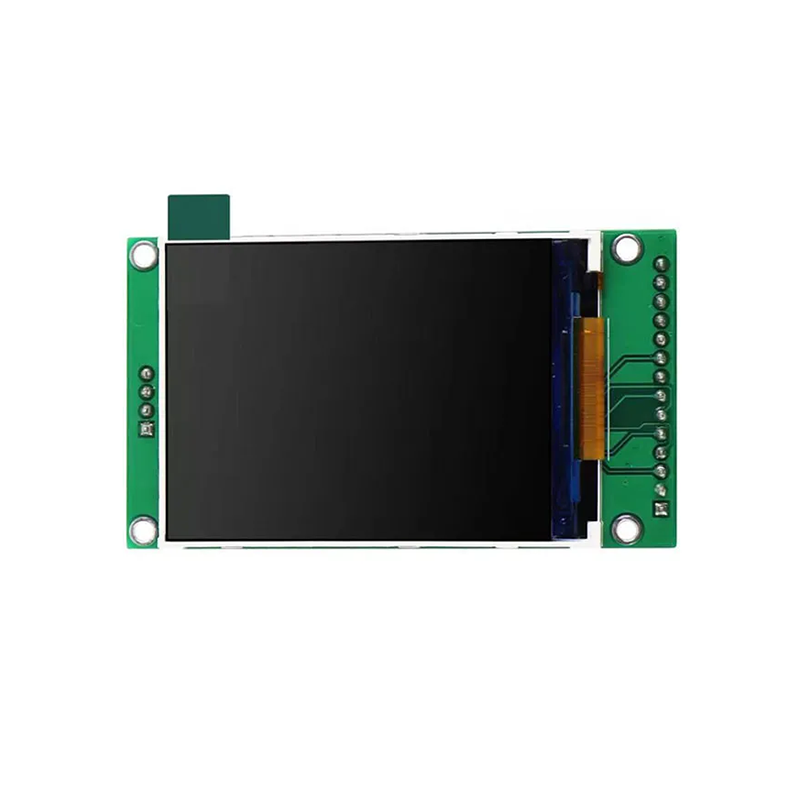

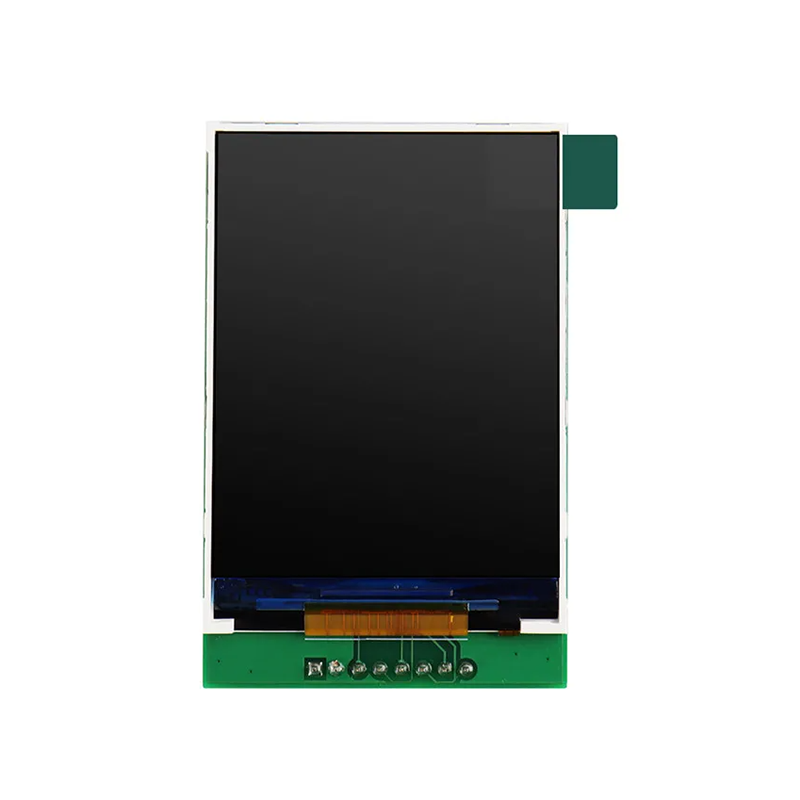

New published TFT Touch Screen for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 260 nits under the test of laboratory. The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. The ST7789V2 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.
| P/N | P024C117-B |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |
| Outline Dimension(mm) | 42.72*60.26*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally White |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 260 |
| Contrast Ratio | 250:1 |
| Interface | 4 Wire SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number | 18 |

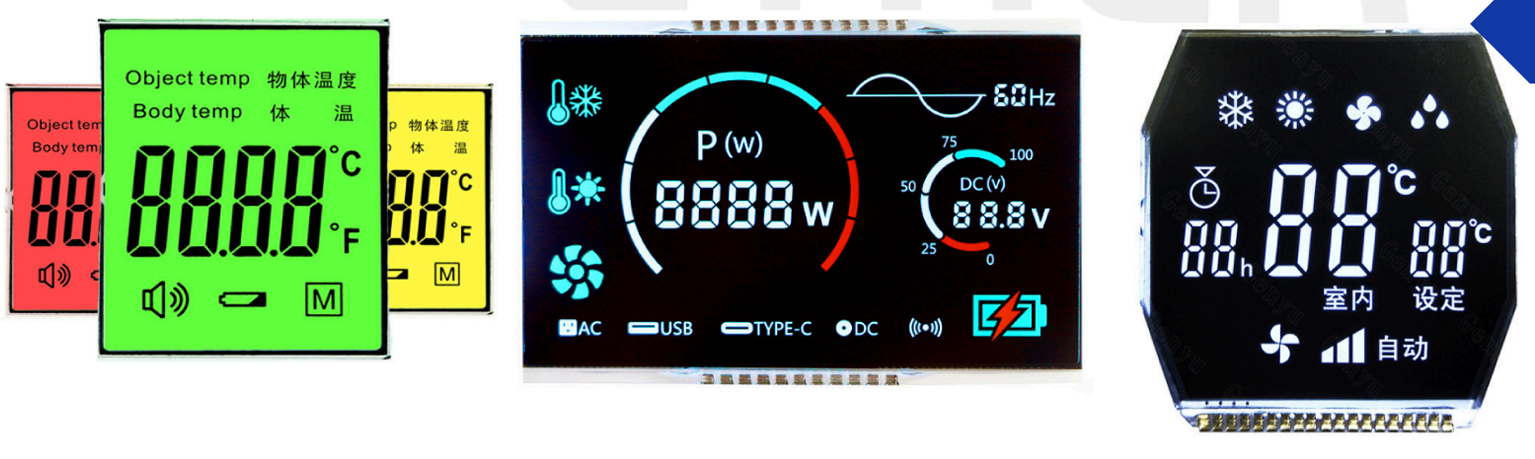

Shenzhen Yitai Optoelectronics Co., Ltd. is willing to engage in technical cooperation with all sectors. The company was established in 2014, has a R&D team of 28 people, owns more than 20 patents, and has been recognized as a national high-tech enterprise. With a 20,000-square-meter production base, 20 automated LCD production lines, and a monthly output capacity of 2.5 to 3 million units, a team of 320 ensures implementation. The ISO9001 quality management system and a ten-thousand-class cleanroom provide the quality foundation for cooperative projects. The products focus on displays ranging from 0.96 inches to 7 inches, having developed over 1,000 TN/HTN/STN/VA products and hundreds of TFT color screens, with customizable LED backlights. With twelve years of technical accumulation, the products have undergone high and low temperature, vibration, and anti-interference tests, and are widely used in handheld inspection, portable medical devices, smart homes, and the Internet of Things fields, with exports to Europe, the Americas, and Southeast Asia.
Future Outlook
Core Concept: Upholding 'Technology Creates a Better Life'
Deep Focus: Continuously delving into the field of small-size customized displays
Core Drive: Persisting in technological innovation and product development
Win-Win Cooperation: Growing together with global customers and partners
Vision and Mission: Using artisan screens to illuminate every corner of the smart world
Market Performance
Business coverage in 30 countries and regions worldwide
Customer satisfaction as high as 98%
Annual product shipments of 30 million units
Our advantage
Customized a 3.5-inch high-definition dashboard display for the client, using high-contrast IPS full lamination technology to ensure clear visibility even in strong light conditions. According to automotive-grade requirements, we optimized the ultra-narrow bezel and curved design to perfectly match the cockpit interior style. The screen integrates an intelligent light-sensing adjustment system, which can automatically adjust brightness and color temperature according to ambient light, greatly enhancing driving safety and visual comfort.
Custom developed a 2.8-inch minimalist clock display for a well-known home brand, using low-power IPS full lamination technology and supporting clear display from 180° wide viewing angles. Based on bedroom usage scenarios, we optimized the ultra-thin borderless design and soft light guide structure to perfectly match modern home aesthetics. The screen integrates an intelligent light-sensing adjustment system that can automatically switch display modes according to changes in daylight, and at night, it automatically switches to a soft light mode, ensuring the time is clearly visible without affecting sleep quality.
Customized a 4.3-inch charging pile interactive screen for a well-known new energy brand, using high-brightness IPS full lamination technology, meeting the IP65 protection level requirements. We specially optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) for complex outdoor environments to ensure clear display under various weather conditions. The screen integrates an intelligent light-sensing adjustment system that can automatically optimize display brightness according to day and night light changes, greatly enhancing the user operation experience.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
