New published TFT Touch Screen for commercial and industrial use. Screen size is 1.77 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 128*160 resolution product. 250 nits make this lcd excellent for indoor usage.Regarding the display quality, the brightness of the screen panel is at 250 cd/m² which is indeed a very bright feature compared to most ultra-small products of the same category. The light source used is highly enhanced to be evenly spread and constant. In this way, even if you are in a very brightly illuminated place, the images on the screen can be easily brought out without any problem.
| P/N | P177C019 |
| Size(inch) | 1.77 |
| Resolution | 128*160 |
| Brightness(cd/m²) | 250 |
| Interface | MCU 8bit SPI 3/4wire |
| Driver Ic | ST7735S |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 22 |

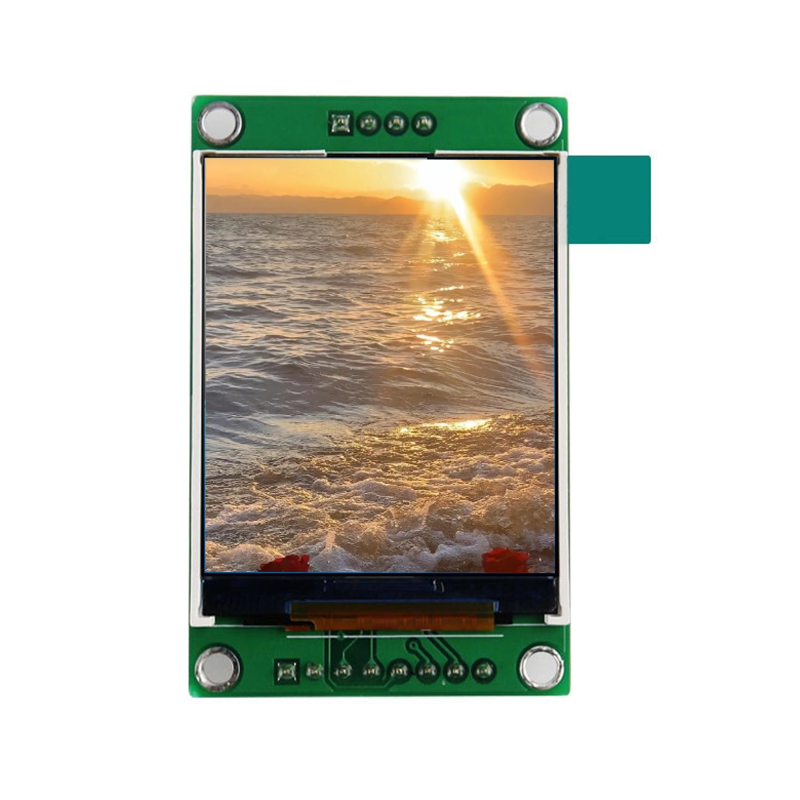

This 1.77-inch display, a TFT LCD module, model number P177C019, has been developed based on the ST7735S driver chip and an MCU 8-bit SPI serial interface. Hence, it is a micro intelligent display solution for ultra-compact embedded systems. Its pixel count is 128×160, and it is quite sufficient to present visuals of good quality on a small 1.77-inch size. The actual display portion is quite small and sophisticated, while the vertically oriented pixels making it ideal for UI designing of very small handheld devices, wearables, and portable sensors. It is used in smartwatches, wristbands for health monitoring, small industrial sensors, drone controllers, and IoT nodes due to the extremely limited space available in such use cases.
Such a pair of resources in the unique form is the basis for the competitive edge of Shenzhen Yitai Optoelectronics Co., Ltd., in the optical world. With over 12 years of production experience, the company owns more than 20 patented technologies, a workforce of 320, a 20,000 square meter production area, 20 production lines, and a monthly output capacity of 2.5 to 3 million units—these resources are quite difficult to imitate. The 28-person R&D team constantly adds to the resources, ISO9001 certification ensures resource management is standardized, and the national high-tech enterprise qualification shows the worth of these resources. A Class 10,000 cleanroom and fully automated LCD production lines are these resources made tangible. Besides over a thousand TN/HTN/STN/VA products, the firm also offers hundreds of TFT color screens and customized LED backlight sources to focus on the market from 0.96 inch to 7 inch. The company’s products are highly tested for the environment and widely used in fields such as medical, inspection, smart home, and IoT. The resource pool is large enough to support their long-distance exports to Europe, America, and Southeast Asia.
Customized a 4.3-inch charging station interactive screen for a famous new energy brand, employing high-brightness IPS full lamination technology, complying with IP65 protection level standards. We specifically worked on the anti-glare feature and the operation temperature range (-30°C~70°C) for outdoor environments, so the display remains clear in all weather conditions. The display is equipped with an intelligent light-sensing adjustment system that can change its brightness automatically based on the natural light, thus greatly improving the user interface.
Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards.Besides fully complying with medical ergonomics standards, we gave the device an antibacterial bezel and included an anti-glare coating to be able to work smoothly in operating rooms or other complex environments.Also, it includes an ambient light intelligent adjustment system that automatically selects display settings based on the environment and it can noticeably reduce eye strain, helping doctors with diagnosis and treatment work more efficiently.
The 4-inch financial-grade encrypted displays were made by us for international banks by using the military-grade IPS full lamination touchscreen, which complies with PCIDSS payment security standards. Besides the high-security needs for the financial industry, the anti-peeping structure and tamper-proof frame were specially designed by us to ensure data security on ATMs and other self-service terminals. In addition to that, the screen is equipped with an intelligent ambient light adaptation system that automatically adjusts to the optimum display state according to the branch’s lighting conditions, by which the customer operation experience and transaction efficiency are drastically improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
