Product Description
What can we expect from this one? Before this question it is better to know some information about this TFT Touch Screen. Screen size is 2.4 inch.
A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used.
260 nits allow this lcd to work well indoors.
| P/N | P024C117-B |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V2 is the driver IC of the tft lcd.
The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

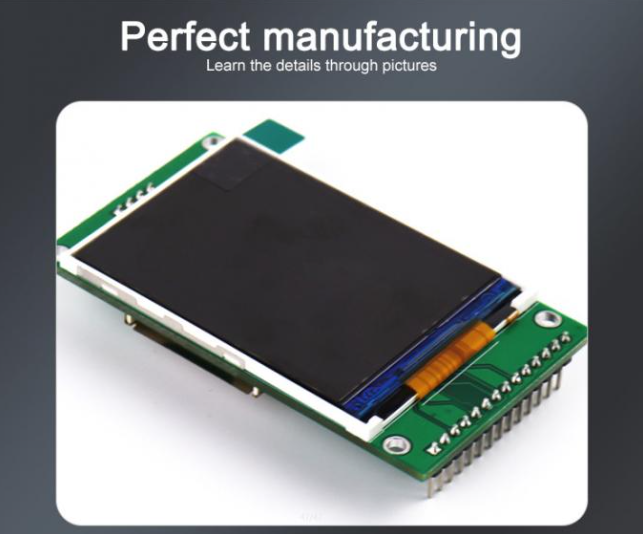

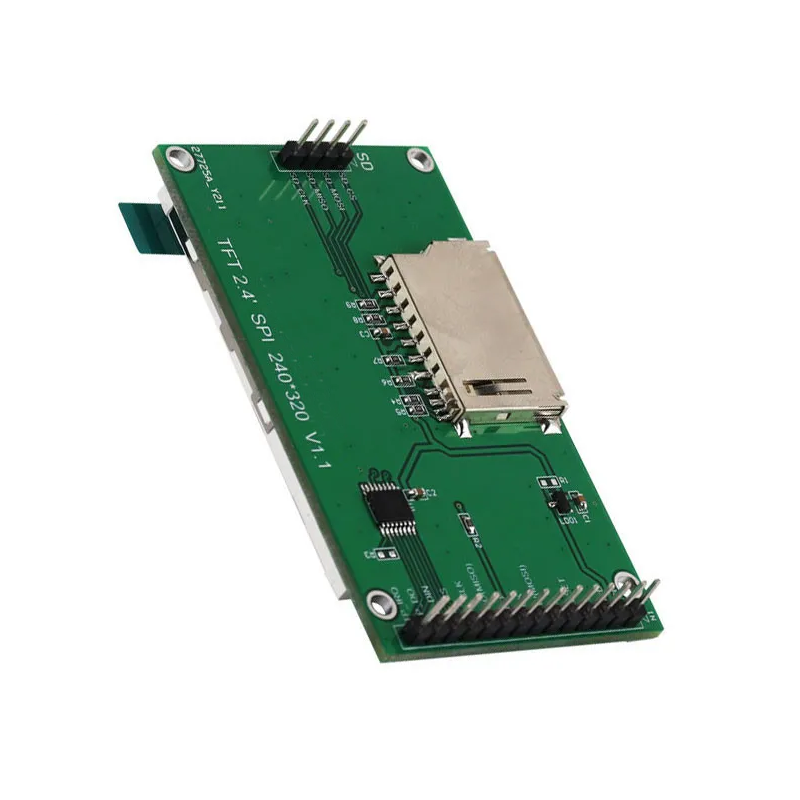

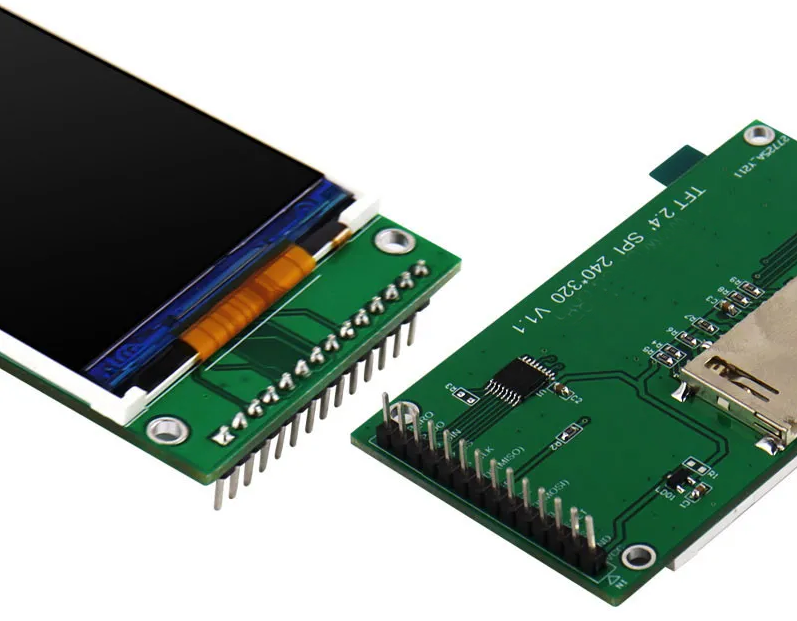

The P024C117-B represents a 2.4-inch TFT LCD with the panel resolution of 240×320 and a peak brightness of 260 nits, hence it is easily readable even under indoor lighting. The distinguishing factor of this product is not the panel per se but the green PCB skilfully designed at the back of the panel. All display driver, power management, signal conditioning, and interface conversion components are integrated inside. Users do not have to undergo the nightmare of the tightly packed FPC gold fingers; on the contrary, a well-organized 18-pin header is present with each pin's function clearly labeled, e.g. VCC, GND, SCK, SDA, RESET, CS, LED.
This 4-wire SPI interface's ease is completely exhibited here. Plugging in seven wires to an Arduino Uno and pasting a snippet of open-source code results in the screen showing "Hello World"; hooking up with an STM32 development board and making a call to HAL library functions enables one to overlay complex UIs; working with an ESP32 and relying on Wi-Fi data streams facilitates the chart to refresh in real time - the well-established ecosystem of the ST7789V2 driver IC is instrumental in making cross-platform development hassle-free to a great extent.
The inclusion of an onboard SD card slot is yet another significant feature of the design. Large font libraries, high-definition images, and configuration files are no longer constrained by the limited Flash memory of the main controller; these may be placed on the SD card and accessed through the SPI bus for display. A 32GB storage card can easily accommodate thousands of full-screen bitmaps or multi-language interface resources, thus turning a product's UI from "adequate" to "exquisite".
The ideology of green manufacturing is reflected in the operating mode of Shenzhen Yitai Optoelectronics Co., Ltd. Having opened in 2014, the company runs its environmentally friendly production in its base of 20,000-square-meters. The ten-thousand-class dust-free purification workshop not only guarantees product quality but also demonstrates environmental responsibility. Twenty automated production lines are highly efficient, energy-saving, and run with a monthly output capacity of 2.5 to 3 million pieces. The 320-personnel team counts 28 R&D members devoted to green display technologies, and over 20 patents have come out of the company. It is a nationally recognized high-tech enterprise and is ISO9001 certified. Besides thousands of TN/HTN/STN/VA modules, the company offers hundreds of TFT color screens, with customizable LED backlights being a unique feature. By focusing on the market segment of small-sized products from 0.96-7 inches, the products have become exemplary with their tightest testing being done and they are now broadly used in medical, inspection, smart home, and IoT terminal applications, and are being exported overseas.
Core Competitiveness: Why Do Global Clients Choose ETHER Optoelectronics?
Strict Quality Control, Yield Rate Up to 99.8%
Quality is the lifeline of a company. We manufacture each display panel to military-grade standards:
Intelligent Inspection: Using fully automated production lines combined with AOI optical inspection systems to achieve micrometer-level precision control.
Extreme Reliability: The defect rate of small-size screens is strictly controlled below 0.2%, reaching industry-leading levels.
International Certification: All products are certified by CE/FCC/RoHS and other authoritative standards, meeting European and American export standards.
We have 18 quality control checkpoints starting from raw materials to finished products. Our data-driven approach is our quality assurance system that can compete in the global market.
We carried out a tailored design of a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer. The display was based on high-contrast IPS full lamination technology and it complied with the IP65 protection level requirements. We have also improved the dustproof and waterproof structure and the wide temperature design (-30°C to 70°C) of the power industry for ensuring stable operation in complicated environments such as substations. Moreover, to ensure efficient data reading and operational safety during outdoor inspections, we have installed an adaptive brightness adjustment system on the screen which can automatically optimize display effects depending on the ambient light.

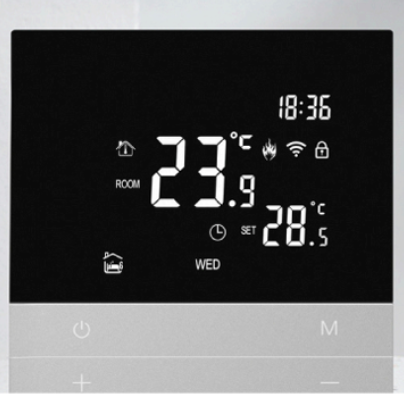

Made a 3.5-inch high-accuracy temperature display unit tailored to a well-known HVAC company, fabricated with full-view IPS full lamination technology and capable of supporting multi-touch operation. We chose an ultra-narrow bezel and rounded corner design to meet the requirements of the residential environment, which also harmonizes very well with contemporary interior decoration styles. The panel has an ambient light intelligent adjustment feature that can automatically set the display brightness and contrast according to the level of indoor lighting, thereby significantly improving user experience and reducing energy consumption.
Tailored production of 2.8-inch simple clock display for a famous home brand, employing low-power IPS full lamination technology and being capable of clear display from 180° wide viewing angles. With bedroom use in mind, we made the ultra-thin borderless design and the soft light guide structure align very well with the modern home aesthetic. The screen is equipped with a smart light-sensing adjustment system that can recognize daylight changes and switch display modes accordingly; at night it switches to the soft light mode automatically, thus the time is easily seen while not disturbing the sleep.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
