Product Description
This TFT Touch Screen is a color-active matrix thin-film transistor(TFT) liquid crystal display(LCD) that uses a-Si TFT as a switching device. If your product needs a 2.4 inch then our lcd is exactly what you need. Add our specific 240 * 320 resolution module to elevate your product design. QC department measured the luminance is 260 nits under standard operation.
| P/N | P024C117SD |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
4 Wire SPI mode is extremely versatile and still remains a very suitable solution for different situations.
And according to the datasheet, the LCD driver is very simply identified as being ST7789V2.
The minimum allowable temperature for operation is as low as -20°C (-4°F) while the maximum is 70°C (158°F).

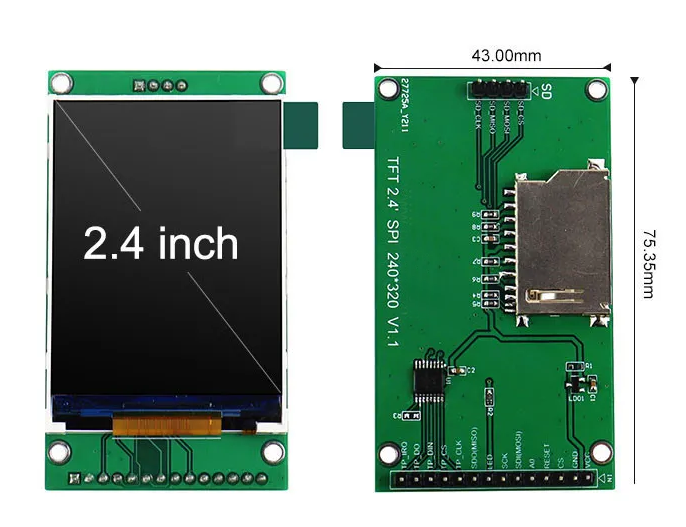

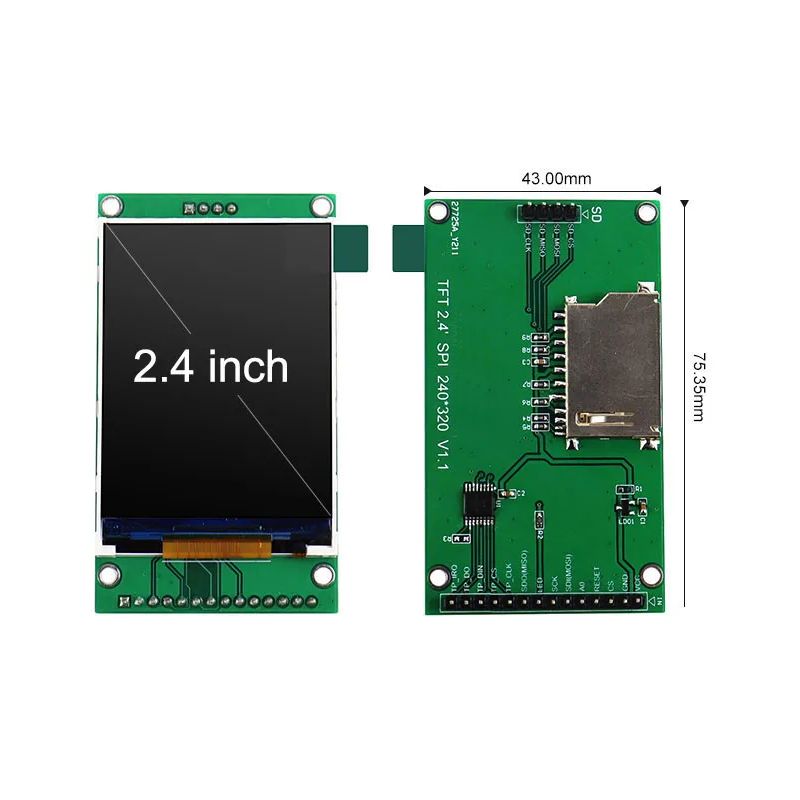

The P024C117SD can display colors in a 2.4-inch display area with 240×320 resolution, and a luminance of 260 nits, ensuring high visibility under indoor lighting conditions. Besides just the panel, this product combines driver circuitry and backlight power supply on a 43.00×75.35mm PCB, so you will see the screen on the front and the complete driver circuit on the back. This means that engineers can just connect the power and the SPI signals, and they will get the screen turned on without the need to refer to the datasheet for design of peripheral circuitry.
The 4-wire SPI interface uses only 18 pins in total, and the definitions of the pins are printed on the PCB for easy identification: VCC, GND, CLK, MOSI, MISO, CS, RESET, LED backlight control — all at first sight. Using a DuPont wire even allows it to be connected directly to the popular development boards like Arduino, STM32, ESP32. The driver IC ST7789V2 has been widely used in the market, and there are also ample resources of open-source driver libraries available on GitHub. You can just copy-paste and execute even with the "Hello World" or more complex UI examples.
Moreover, this SD card slot on the board does not require you to have any extra storage module. Graphic, font and configuration files are just saved onto the SD card and read through the SPI bus for display, which significantly relieves the main controller Flash from being stressed. On the PCB, four mounting holes can be found precisely at the 4 corners, and M3 screws can be tightened directly without the need for custom any kind of enclosure or bracket. Both prototyping and mass installation are very convenient.
Established back in 2014 Shenzhen Yitai Optoelectronics Co., Ltd. is a national high-tech enterprise that has experienced the whole display manufacturing industry for a decade. Our 20,000㎡ factory area features 20 production lines, 320 employees, and 28 professional R&D staff. They are capable of producing a monthly output of 2.5 to 3 million units to deliver bulk orders. With 10,000-class clean workshops and advanced automatic LCD lines, we guarantee top-notch product quality. The scope of our work covers 0.96-7 inch industrial and consumer LCD screens, we have more than 1,000 monochrome displays and lots of color TFT with LED backlight custom solutions, also licensed with more than 20 patents and ISO9001 certification. Our products are tested strictly for temperature resistance, vibration, and anti-interference. Our items can be used in medical devices, smart home, IoT, and testing equipment markets. Our products are exported to and well received not only in China but also in Europe, America and Southeast Asia.
We developed a minimalist clock display for 2.8 inches as a custom-made project for a famous home brand by combining low-power IPS full lamination technology with clock display from wide viewing angles up to 180°.Our ultra-thin borderless design and soft light guide structure were optimized based on the bedroom scenarios to seamlessly blend with the modern home decor. Besides the convenience of time reading ensured by the display’s light-sensing system that intelligently changes its mode according to daylight changes, soft light mode can be automatically switched at night to prevent sleep disturbances.

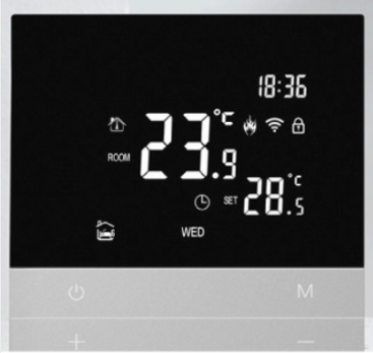

We used full-view IPS full lamination technology for a 3.5-inch temperature control display with high accuracy which is capable of multi-touch operation for a famous HVAC brand.[1]We used an ultra-thin bezel and rounded corner design that do not contort the beauty and style of the furnishings through the windows of the home.Well-built features such as the ambient light intelligent adjustment function enable the display to be automatically brightness and contrast optimized according to light settings that are indoors with a high margin of user satisfaction and energy efficiency.
We made a 4-inch financial-grade encrypted display geared towards international banks, using military-grade IPS touchscreen, integrated with PCIDSS (payment security standards).In line with the high-security requirements of the finance sector we have developed an anti-peeping device and a tamper-proof frame for security of data in ATM's and other self-service terminals.A customer operation experience and transaction efficiency is significantly enhanced by the screen's built-in intelligent ambient light adaptation capability that automatically adjusts to the best display state depending on the lighting conditions of the branch.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
