Product Description
Personalized customization, ustomizable products, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc. OEM/ODM are all available.
1. Cold rolled sheet metal material, strong casing, shockproof, anti-interference;
2. Support wall-mounted, desktop, embedded installation;
3. Using industrial-grade high-brightness display, longer life;
Industrial design natural heat dissipation;

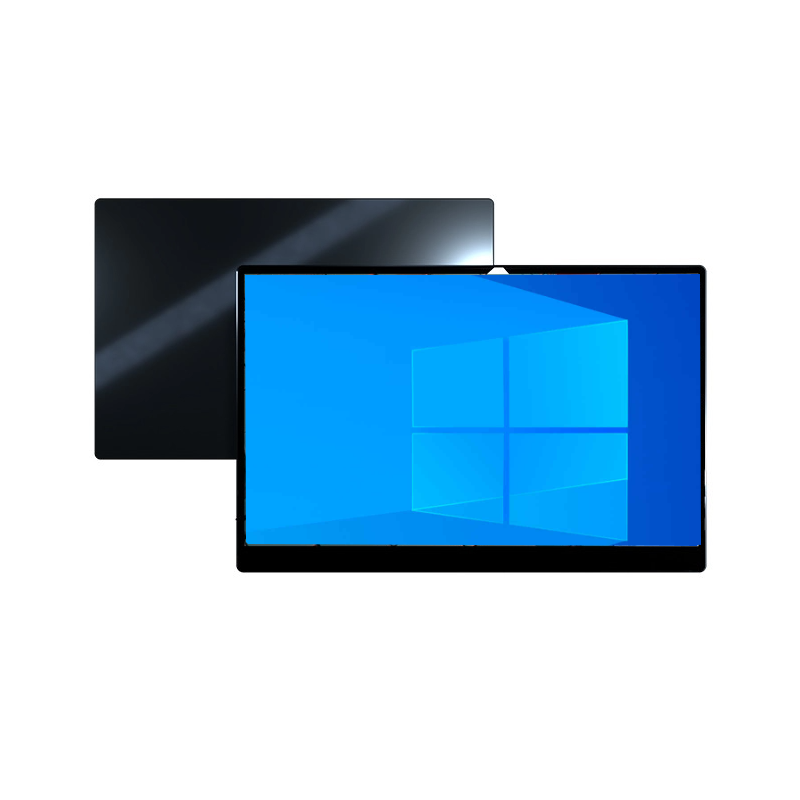

| Product name | 13.3 Inch 100% Color Gamut Portable Monitor |
| Model | PM133MEP802 |
| Panel Type | IPS; TFT-LCD; LED Backlight |
| Touch screen | Optional Resistive Capacitive Touch |
| Panel Type | Full Lamination (16:9 Wide) LED Backlight |
| Resolution / Color Depth | 1920x1080 (RGB*FHD) (262K, 100% of sRGB) |
| Built in Battery | 8000 mAh Continuous Use Time: 3-4 Hours |
| Active Area | 293.76x165.24 mm (H×V) |
| Pixel Pitch | 0.051×0.153mm |
| Viewing Angle(U/D/L/R) | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio | 1200:1 (Typical) |
| Brightness | 300(cd/m2) |
| Response Time | 30(ms) |
| Vertical Frequency | 60Hz |
| Monitor Housing | High Quality Aluminium Alloy Material, With Narrow border design |
| Speakers | 2 x 1.0W(Max.) |
| Dimension(W/H/T) | 305*193*9mm |
| Weight | 687g / 1.5lb |
| VESA hole can be customized | |
| Connectivity | 1*HD Mini Port |
| 1*Type C Port( Supports power supply and video data transfer ) | |
| 1*Type C Port( Input power only ) | |
| 1*Micro-USB port(For connect with keyboard & Mouse) | |
| 1*Head Phone Port (3.5MM) | |
| Compatible | Compatible with various of HD and Type-C devices: Smart Phone, Laptop, For PS5, For PlayStation 4, For PlayStation, Switch, PC and Mobile devices. |
| Shipment information | Color Box Size: 43*28*9cm, Weight: 2.0Kg |
Technological excellence has never been a final destination, and Shenzhen Yitai Optoelectronics Co., Ltd. has kept on stepping up. The company, which was launched in 2014, is located in a 20,000-square-meter space where it has been enhancing its manufacturing techniques. It currently has 10,000-level standard cleanrooms and 20 fully automated LCD production lines, which show the level of technology at this moment. Having a monthly manufacturing capacity of 2.5 to 3 million units, the 320 staff members are committed to the pursuit of perfection, while the 28-member R&D team is dedicated to the discovery of novel processes. More than 20 patents have been granted to the company, which is also a recognized national high-tech enterprise and has ISO9001 certification at its disposal. Products feature over a thousand types of TN/HTN/STN/VA modules along with hundreds of TFT color screens that can be equipped with LED backlights of customers' choice. The main target is the small-size market ranging from 0.96 to 7 inches; these products have been subjected to the tests of high and low temperature, vibration, and anti-interference, and as a result, they are being used in various fields such as handheld detection instruments, portable medical apparatus, smart home systems, and IoT terminals, and are also exported abroad.
We manufactured a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer with the latest high-brightness IPS fully laminated touch screen, also fulfilling IP67 protection requirements. So, we enhanced the shockproof housing and anti-slip surface texture, the features most likely to be helped by the industry, and thus guaranteed dependable functioning even in very tough conditions. Moreover, the screen was equipped with a smart light-sensing adjustment feature that allows it to automatically change the display mode from day to night and vice versa, depending on the surrounding light, greatly improving visibility and work efficiency when used outside.
We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer. The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
