Product Description
Personalized customization, ustomizable products, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc. OEM/ODM are all available.
1. Cold rolled sheet metal material, strong casing, shockproof, anti-interference;
2. Support wall-mounted, desktop, embedded installation;
3. Using industrial-grade high-brightness display, longer life;
Industrial design natural heat dissipation;
| Product name | 10.4 Inch Open Frame Monitor |
| Optional Resistive Capacitive Touch | |
| Brand | YiTai |
| Model | PM010PO801 |
| material | Plastic |
| FT-LCD | |
| Aspect ratio | 4:3 |
| Resolution | 800*600 |
| Signal interface | VGA, HDMI, AV, BNC, Can be Customized |
| Frequency | 60-75Hz |
| Viewing angle | 160°C/160°C |
| Body size | 256*178*49MM |
| Format | PAL NTSC |
| Audio | No |
| VISA hole distance | 75*75mm |
| Menu language | 8 |
| Power supply | DC12V 1A |

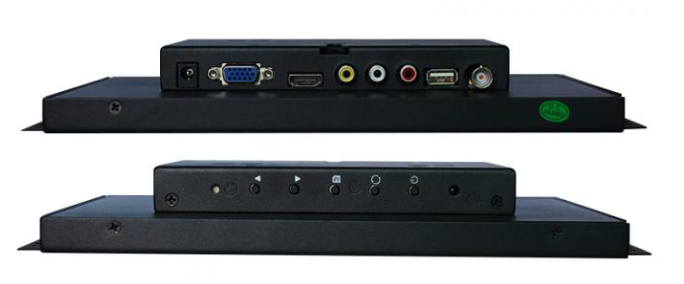

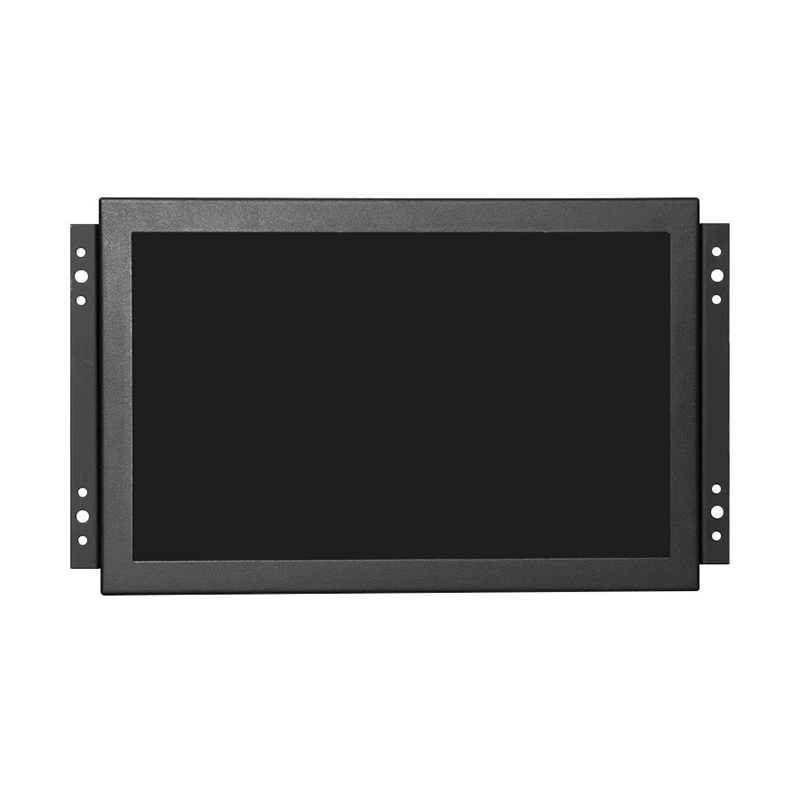

The PM010PO801 is a 10.4-inch open-frame touch screen display. Its use of FT-LCD technology translates to a display resolution of 800×600 and a classic 4:3 aspect ratio. A net dimension of 256×178×49mm houses a display panel, driver board, power management features, and multiple signal inputs that do not require an external casing and can be directly embedded into the customer's equipment. The 160°/160° wide viewing angle provides a clear screen view to people even when they are standing at the extreme side of the screen or when the screen is being used for the reading of a drawing by several people.
Shenzhen Yitai Optoelectronics Co., Ltd. specializes in manufacturing display screens and is a trustworthy company with twelve years of experience. The company was established in 2014 in Shenzhen and initially focused on small-sized LCD products from 0.96 inches to 7 inches. It has a 20,000-square-meter stand-alone factory, 20 production lines, a monthly production capacity of 2.5 to 3 million units, and over 320 employees who are dedicated to professional manufacturing. A research and development team of 28 members constantly works on new product designs. Holding over 20 patents, recognized as a national high-tech enterprise, and having ISO9001 quality management system certification is the company's position. Ten-thousand-level cleanroom and high-end fully automated LCD production lines are the basis for the company's ability to maintain stable and reliable product quality. Over a thousand types of TN/HTN/STN/VA display products, hundreds of TFT color LCDs, and custom LED backlight services are offered. Handheld testers, portable medical devices, smart home equipment, IoT terminals are the major uses of the products which are rigorously tested and exported to Europe, America, and Southeast Asia.
A well-known communication equipment manufacturer needed an industrial-grade intercom display that is only 3.5 inches but capable of supporting high brightness. Therefore, a high-brightness IPS fully laminated touch screen was used, and the product was made to meet IP67 protection requirements. Due to the special nature of a certain industry, the frame of the display was made even more shock-resistant, while its surface texture was also changed to prevent slipping. Hence, the working conditions of the equipment are very well supported by the customized product and operation is reliable even when the environment is harsh. Besides, the screen supports intelligent light-sensing adjustment technology that is capable of switching display modes between day and night automatically by sensing the ambient light. This feature greatly improves the visibility and efficiency of operation during outdoor work.
With a high-resolution IPS fully laminated pane, a 5-inch medical-grade touch display was custom-developed for a leading medical device manufacturer, meeting EM Class B requirements. To align with medical ergonomics requirements, which are very strict, we designed antibacterial bezels and anti-glare surface to be used in operating rooms and other complex environments, where the equipment needs to be running. The display has an intelligent ambient light adjustment system embedded in it which is capable of automatically adapting the screen parameters in conformity with the usage scenario so that the medical staff's eyes remain comfortable and their efficiency in diagnosis and treatment is enhanced.
We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
