ZHJ154V-12H-A03 is a 240RGBX240 dot-matrix TFT LCD module. This module consists of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.
| NO. | Item | Contents | Unit |
| 1 | LCD Size | 1.54 inch(Diagonal) | - |
| 2 | Display Mode | Normally black | - |
| 3 | Resolution | 240(H)RGB×240(V) | - |
| 4 | Dot pitch | 0.115(H)×0.115(V)mm | - |
| 5 | Active area | 27.72(H)×27.72(V)mm | - |
| 9 | Module size | 31.52(H)×33.72(V)x1.87(D)mm | - |
| 7 | Color arrangement | RGB Vtertical stripe | - |
| 8 | Interface | 4 Line SPI | - |
| 9 | Drive IC | ST7789T3 | - |
| 10 | Luminance(cd/m2) | 300(TYP) | - |
| 11 | Viewing Direction | All View | - |
| 12 | Backlight | 3 White LED | - |
| 13 | Operating Temp. | -20℃~+70℃ | ℃ |
| 14 | Storage Temp. | -30℃~+80℃ | ℃ |
| 15 | Weight | TBD | g |
FPC Connector is used for the module electronics interface.
| NO. | Symbol | Description |
| GND | Power Ground | |
| 2 | LEDK | LED Cathode |
| 3 | LEDA | LED Anode |
| 4 | VDD | Power Supply for Analog |
| 5 | GND | Power Ground |
| 6 | GND | Power Ground |
| 7 | D/C | Display data/command selection pin in 4-line serial interface. |
| 8 | CS | Chip selection pin;Low enable,high disable. |
| 9 | SCL | This pin is used to be serial interface clock |
| 10 | SDA | SPI interface input/output pin.the data is latched on the rising edge of the SCL signal. |
| 11 | RESET | This signal will reset the device and itmust be applied to properly initialize the chip.Signal is active low. |
| 12 | GND | Power Ground |
Ether Photoelectric is one of the high-tech enterprises integrating R&D, design, production, and sales, with two manufacturing bases in Shenzhen and Jiangxi. Apart from plastic packaging and IC packaging products, we have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. We are equipped with advanced machinery and technologies, as well as having extensive production experience with a professional R&D team. We provide customized structural designs to fulfill your requirements. We also ensure high-quality products and comprehensive after-sales support.
For a famous communication equipment brand, we did the custom development of a 3.5-inch industrial-grade intercom display, with the use of a high-brightness IPS fully laminated touch screen, that also met IP67 protection requirements. We improved the shock-resistant frame and anti-slip texture design for the industry’s special needs so that the device can still function properly under very rough conditions. The screen features a day and night display switching function based on ambient light, a significant boost to outdoor visibility and work efficiency thanks to intelligent light-sensing adjustment capability.

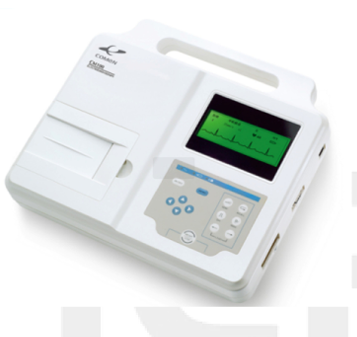

Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards. We strictly adhere to medical ergonomics requirements, implementing antibacterial bezels and anti-glare design to ensure stable operation in complex environments such as operating rooms. The screen integrates an ambient light intelligent adjustment system, which can automatically optimize display parameters according to the usage scenario, effectively reducing visual fatigue for medical staff and improving diagnostic and treatment efficiency.

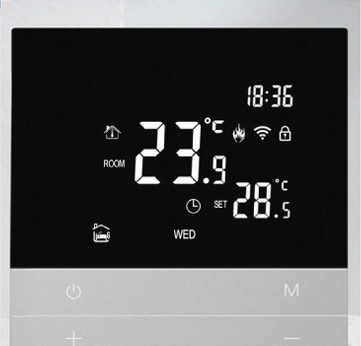

We came up with a 3.5-inch highly accurate temperature control display that was customized for a famous HVAC brand, made with full-view IPS full lamination technology and also multi-touch operation supported. To fit the home environment, we went with an ultra-thin bezel and rounded corner design, and this is how the screen would be a perfect match for your modern home decorating style. Integrated into the display is the ambient light intelligent adjustment function, which will automatically enhance the visibility and operability of the display, at the same time reducing energy consumption, leading to a better indoor lighting experience for users.
